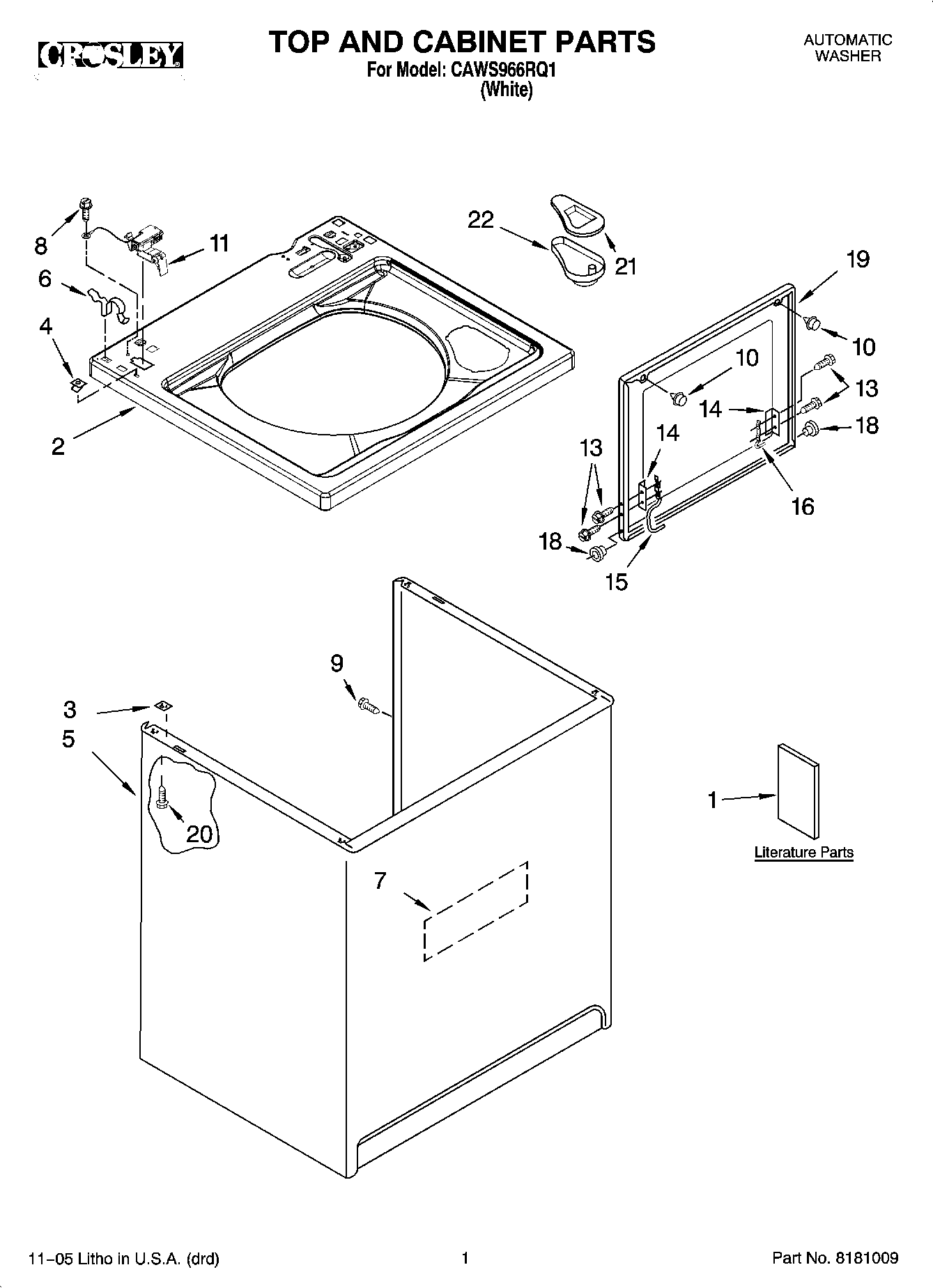

CAWS966RQ1 01 – TOP AND CABINET PARTS
Written by
in
CAWS966RQ1 01 – TOP AND CABINET PARTS
Products
Position
Product
1
Energy Guide
1
Feature Sheet
1
Use & Care Guide
1
Installation Instructions
1
Wiring Diagram
2
Top
3
WP62750 Whirlpool Spacer
4
WP357213 Whirlpool Hinge Stopper
5
63424 Whirlpool Cabinet Assembly
6
WP62780 Whirlpool Cabinet Clip
7
Cabinet – Sound Damper
8
WP3351614 Whirlpool Screw
9
WP308685 Whirlpool Microwave Screw
10
WP9724509 Whirlpool Bumper
11
WP8318084 Whirlpool Washer Lid Switch Assembly
13
SCREW
14
WP21097 Whirlpool Pad
15
Hinge, Lid (L.H.)
16
WP91770 Whirlpool Hinge
18
Bearing, Lid Hinge (2)
19
Lid (White)
20
WP3390631 Whirlpool Screw
21
Cover, Dispenser
22
Dispenser, Bleach
←
