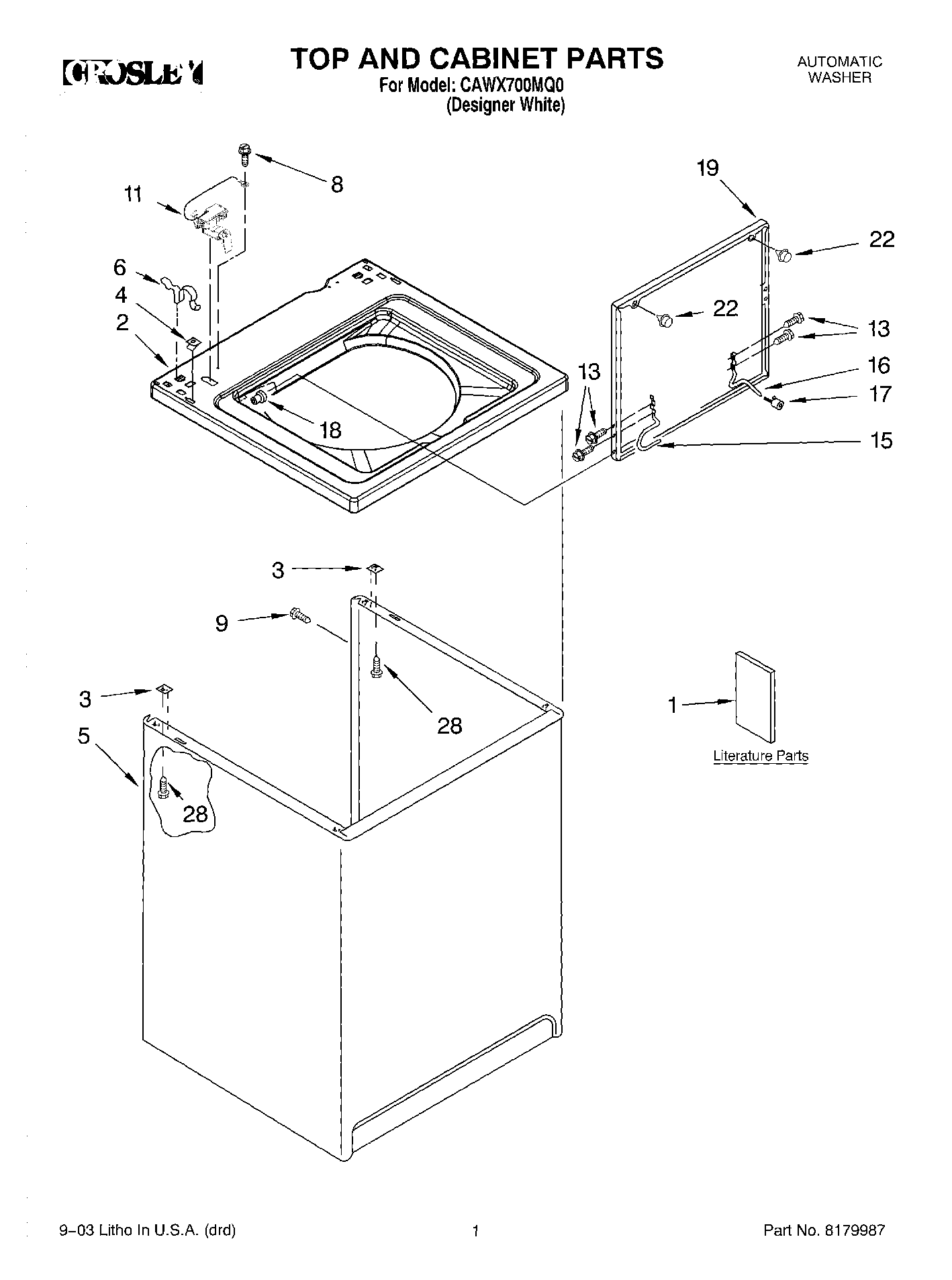

CAWX700MQ0 01 – TOP AND CABINET PARTS

CAWX700MQ0 01 – TOP AND CABINET PARTS

Written by

in

CAWX700MQ0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Literature Parts (Energy Guide)
1Literature Parts (Feature Sheet)
1Literature Parts (Use & Care Guide)
1Literature Parts (Wiring Diagram)
1Literature Parts (Installation Instructions)
2Top (White)
3WP62750 Whirlpool Spacer
4WP357213 Whirlpool Hinge Stopper
563424 Whirlpool Cabinet Assembly
6WP62780 Whirlpool Cabinet Clip
8WP3351614 Whirlpool Screw
9WP308685 Whirlpool Microwave Screw
11WP8318084 Whirlpool Washer Lid Switch Assembly
13SCREW
158318088 Whirlpool Hinge Assembly
16WP54583 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19WPW10193857 Whirlpool Lid Assembly
22WP9724509 Whirlpool Bumper
28WP3390631 Whirlpool Screw
