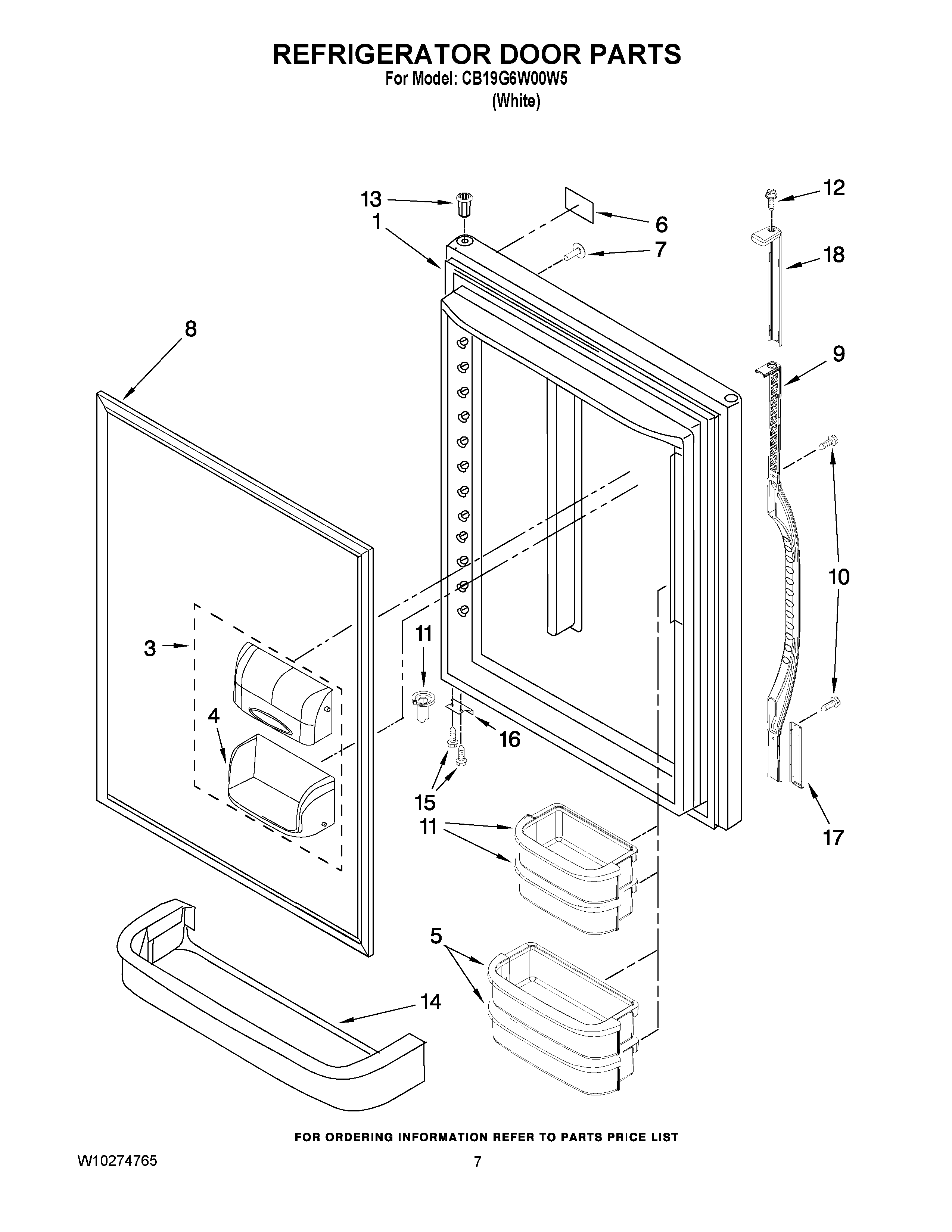

CB19G6W00W5 04 – REFRIGERATOR DOOR PARTS

CB19G6W00W5 04 – REFRIGERATOR DOOR PARTS

Written by

in

CB19G6W00W5 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (W/ INSULATION) (WHITE)
3WP12744905 Whirlpool Refrigerator Compressor Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WP67001021 Whirlpool Refrigerator Bucket
6Nameplate (White)
7WP67001130 Whirlpool Refrigerator White Button Plug
8WPW10443309 Whirlpool Refrigerator Door Gasket
9HANDLE, DOOR (WHITE)
1060001022 Whirlpool Oven Screw
1167001141 Whirlpool Refrigerator Small Bucket Door
12WP489357 Whirlpool Recessed Screw
13WP67004977 Whirlpool Refrigerator Door Hinge Bushing
1467001139 Whirlpool Refrigerator Shelf Trim
15WP98165 Whirlpool Screw
1612968202W Whirlpool Refrigerator Door Stop
17TRIM, HANDLE LOWER (WHITE)
18TRIM, HANDLE UPPER (WHITE)
