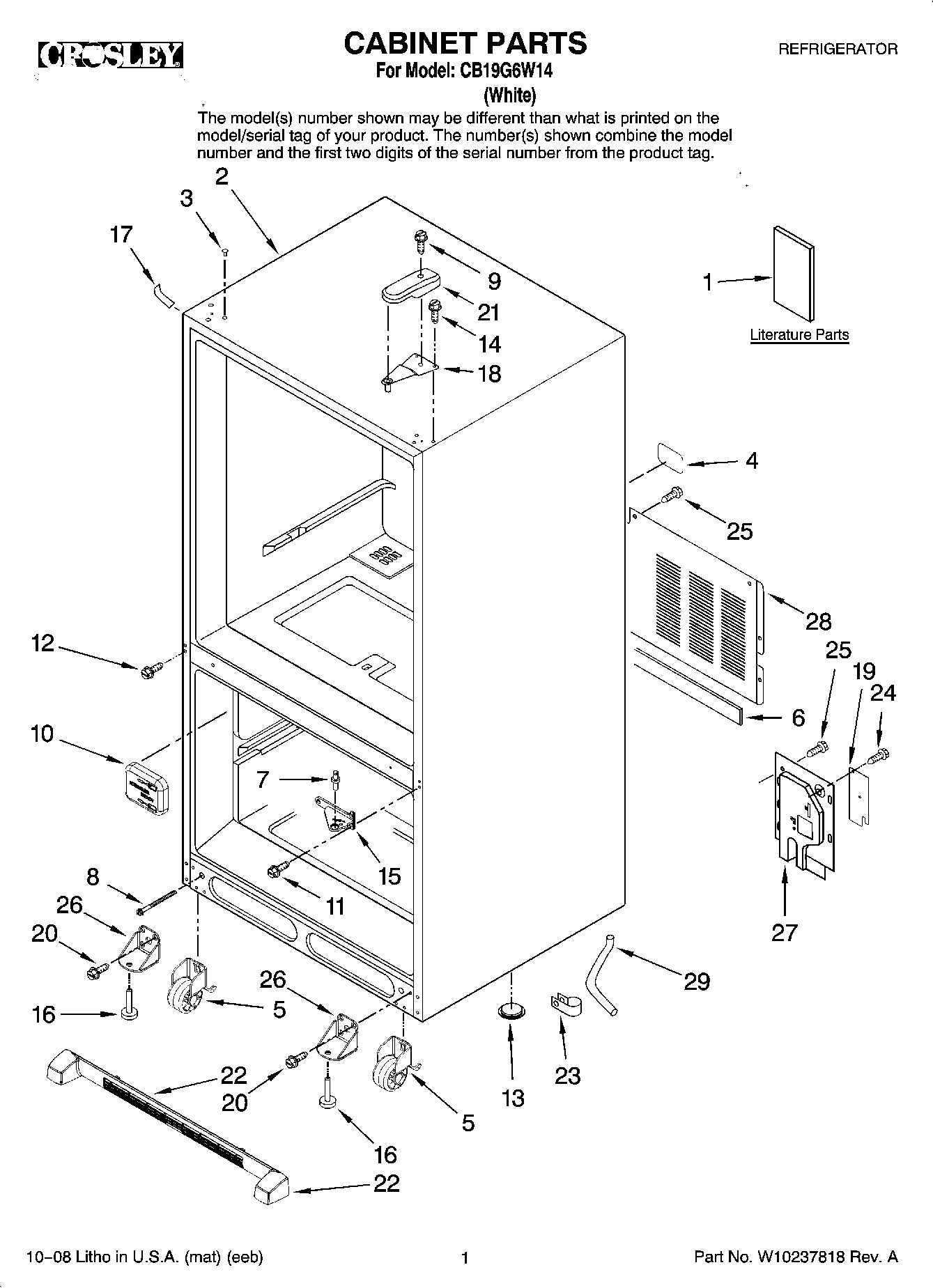

CB19G6W14 01 – CABINET PARTS

CB19G6W14 01 – CABINET PARTS

Written by

in

CB19G6W14 01 – CABINET PARTS

Products

PositionProduct
1Tech Sheet
1ENERGY TAG
1GUIDE, USE & CARE
2Cabinet (Not A Servicable Part)
3WP67001130 Whirlpool Refrigerator White Button Plug
4Label, Fill Tube
5Roller Foot Assembly
6Gasket
7WP67006744 Whirlpool Refrigerator Center Pin
871003131 Whirlpool Oven Screw
9WP8281196 Whirlpool Screw
10WP67001098 Whirlpool Refrigerator Tube Cover
11WP67006380 Whirlpool Screw
12WP489349 Whirlpool Refrigerator Screw
13A3076901 Whirlpool Refrigerator Plug
15WP12607103WD Whirlpool Refrigerator Center Hinge
16W11177593 Whirlpool Leveling Feet
1767003484 Whirlpool Refrigerator White Corner Cover
18WP12566606ED Whirlpool Refrigerator Door Hinge
19Plate, Cover
2067006564 Whirlpool Refrigerator Screw
2167001014 Whirlpool Refrigerator Top Hinge Cover White
22Grille, Toe (White)
23Clip, Drain Tube
24WP489128 Whirlpool Refrigerator Screw
2567006425 Whirlpool Refrigerator Screw
2612465002WD Whirlpool Refrigerator Bottom Hinge
27Cover, Water Valve
28Cover, Unit
29W10164397 Whirlpool Refrigerator Drain Tube
