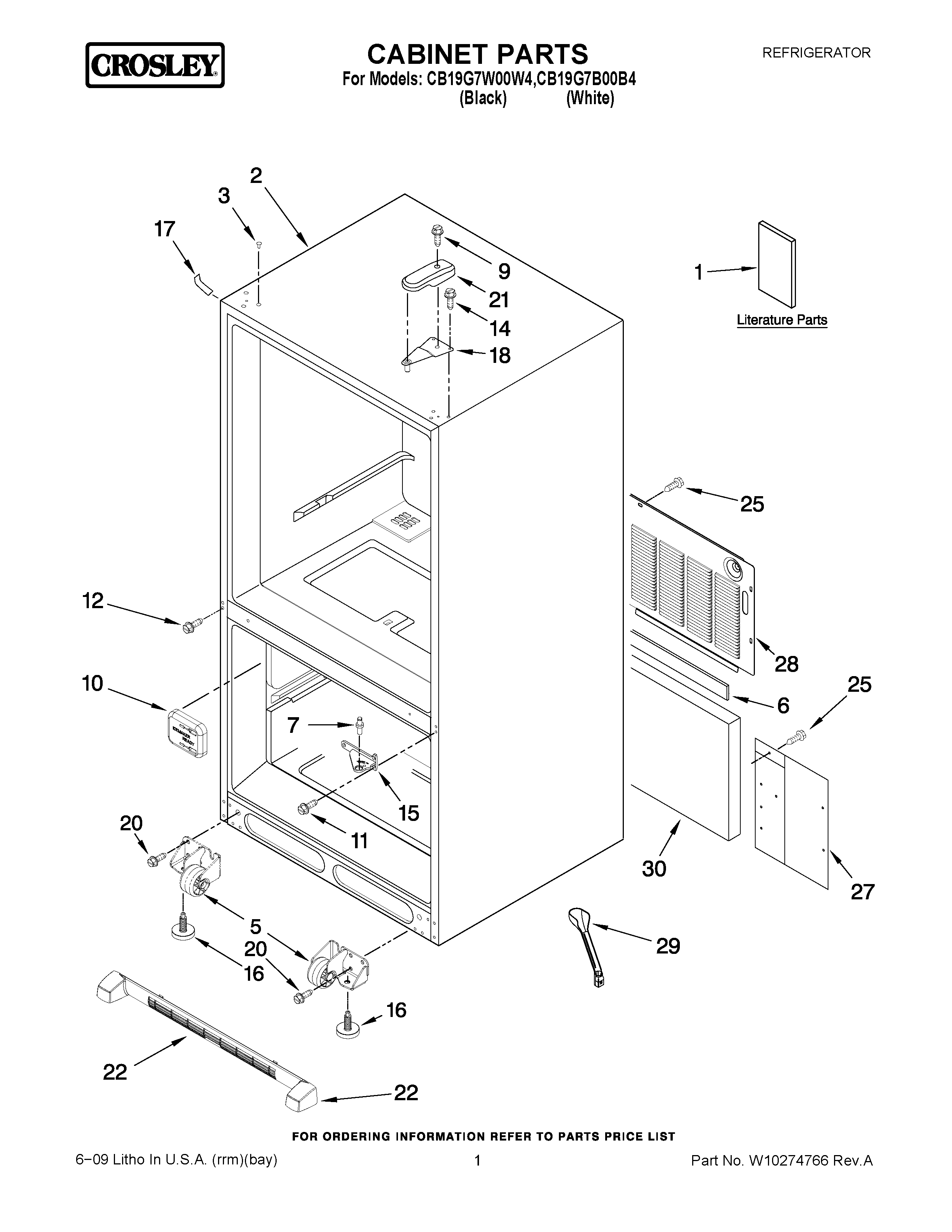

CB19G7B00B4 01 – CABINET PARTS

Products

Position	Product
1	ENERGY TAG
1	GUIDE, USE & CARE
1	TECH SHEET
2	CABINET (NOT A SERVICEABLE PART)
3	WP67001130 Whirlpool Refrigerator White Button Plug
3	Plug, Button (3) (Black)
5	ROLLER ASSY.(REAR)
6	B5759655 Whirlpool Refrigerator Gasket
7	WP67006642 Whirlpool Refrigerator Pin
9	WP8281196 Whirlpool Screw
10	WP67001098 Whirlpool Refrigerator Tube Cover
11	WP67006380 Whirlpool Screw
12	WP489349 Whirlpool Refrigerator Screw
15	WP12607104ED Whirlpool Refrigerator Door Hinge
15	WP12607103WD Whirlpool Refrigerator Center Hinge
16	W11177593 Whirlpool Leveling Feet
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
17	12587703W Whirlpool Refrigerator Cover
18	WP12566606ED Whirlpool Refrigerator Door Hinge
20	67006564 Whirlpool Refrigerator Screw
21	67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
21	67001014 Whirlpool Refrigerator Top Hinge Cover White
22	WPW10534167 Whirlpool Refrigerator Front Grille
22	WPW10534166 Whirlpool Refrigerator Front Grille
25	67006425 Whirlpool Refrigerator Screw
27	W11684617 Whirlpool Valve Cover
28	W10210978 Whirlpool Refrigerator Back Cover
29	W10619951 Whirlpool Drain Tube with Grommet
30	INSULATION, SOUND
