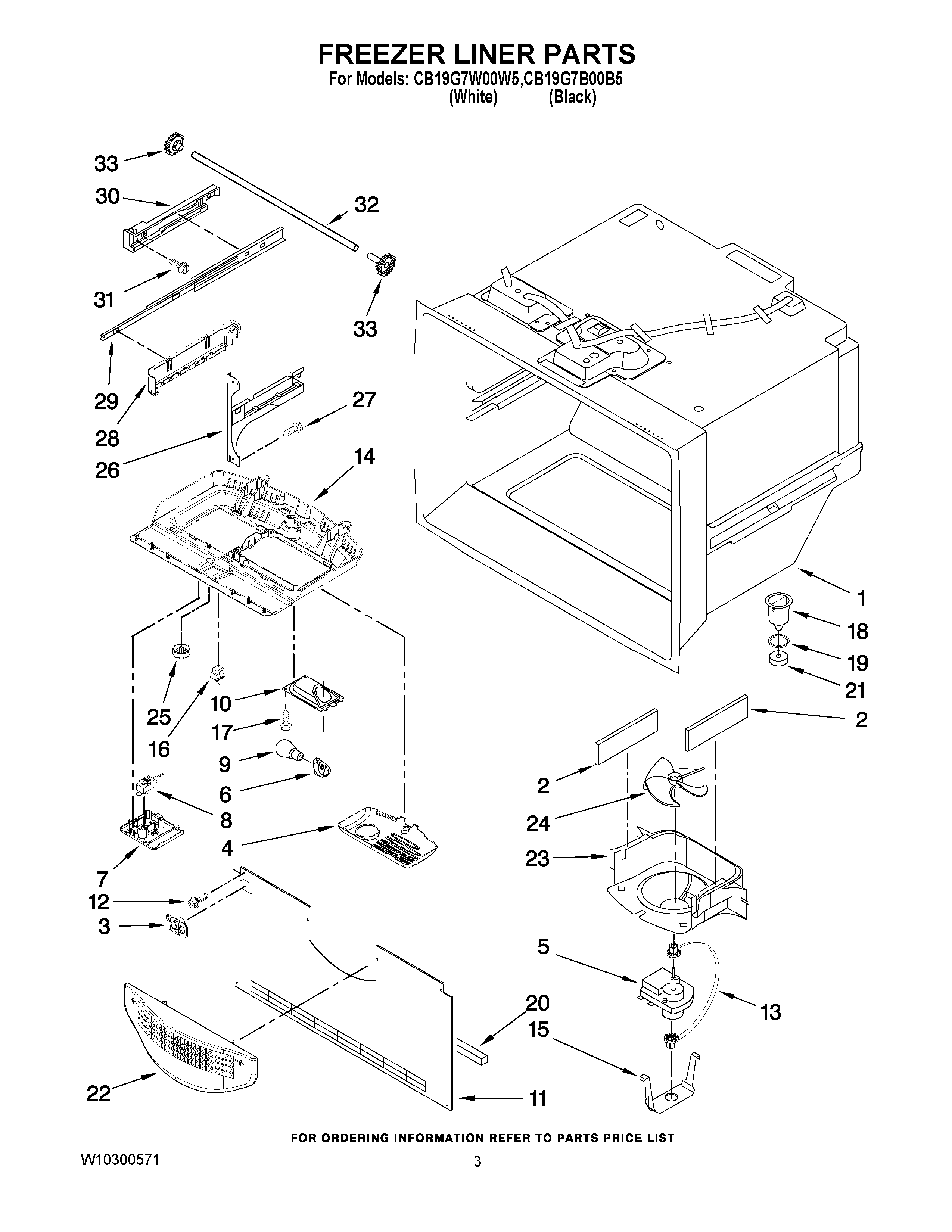

CB19G7B00B5 02 – FREEZER LINER PARTS

CB19G7B00B5 02 – FREEZER LINER PARTS

Written by

in

CB19G7B00B5 02 – FREEZER LINER PARTS

Products

PositionProduct
NIHARNESS, LIGHTS (FREEZER)
1CABINET (NOT A SERVICEABLE PART)
2W11451451 Whirlpool Refrigerator Gasket
3W11448709 Whirlpool Refrigerator Bracket
4COVER, LIGHT
5WPW10128551 Whirlpool Evaporator Fan Motor
6W11447232 Whirlpool Refrigerator Socket
7PANEL, FZ CONTROL
8WP67003000 Whirlpool Refrigerator Control
9W11679940 Whirlpool Refrigerator Light Bulb Assembly
10W11702858 Whirlpool Housing
11Cover, Evaporator
1267006425 Whirlpool Refrigerator Screw
13W10121318 Whirlpool Refrigerator Grommet
14WP12476002 Whirlpool Refrigerator Module
15CLIP, EVAPORATOR MOTOR
16W11396033 Whirlpool Refrigerator Rocker Switch
17SCREW (2)
18W10815413 Whirlpool Refrigerator Funnel
19WPM0500703 Whirlpool Refrigerator O-Ring Seal
20A3189394 Whirlpool Refrigerator Gasket
21WPB8381501 Whirlpool Refrigerator Door Gasket
22WPW10175909 Whirlpool Grille Assembly
23WPW10167023 Whirlpool Refrigerator Shroud
24WP2169142 Whirlpool Fan Blade
25KNOB, FZ CONTROL
26WPW10330991 Whirlpool Refrigerator Bracket
26WPW10330993 Whirlpool Refrigerator Bracket
27WP98165 Whirlpool Screw
28WPW10280608 Whirlpool Refrigerator Bracket
28WPW10280613 Whirlpool Refrigerator Bracket
29W11658402 Whirlpool Drawer Slide Rail
30Adapter, Slide (Left)
30WPW10284681 Whirlpool Refrigerator Bracket
31WP489474 Whirlpool Refrigerator Screw
32W10802329 Whirlpool Refrigerator Shaft
3312002497 Whirlpool Refrigerator Drawer Gear Kit
