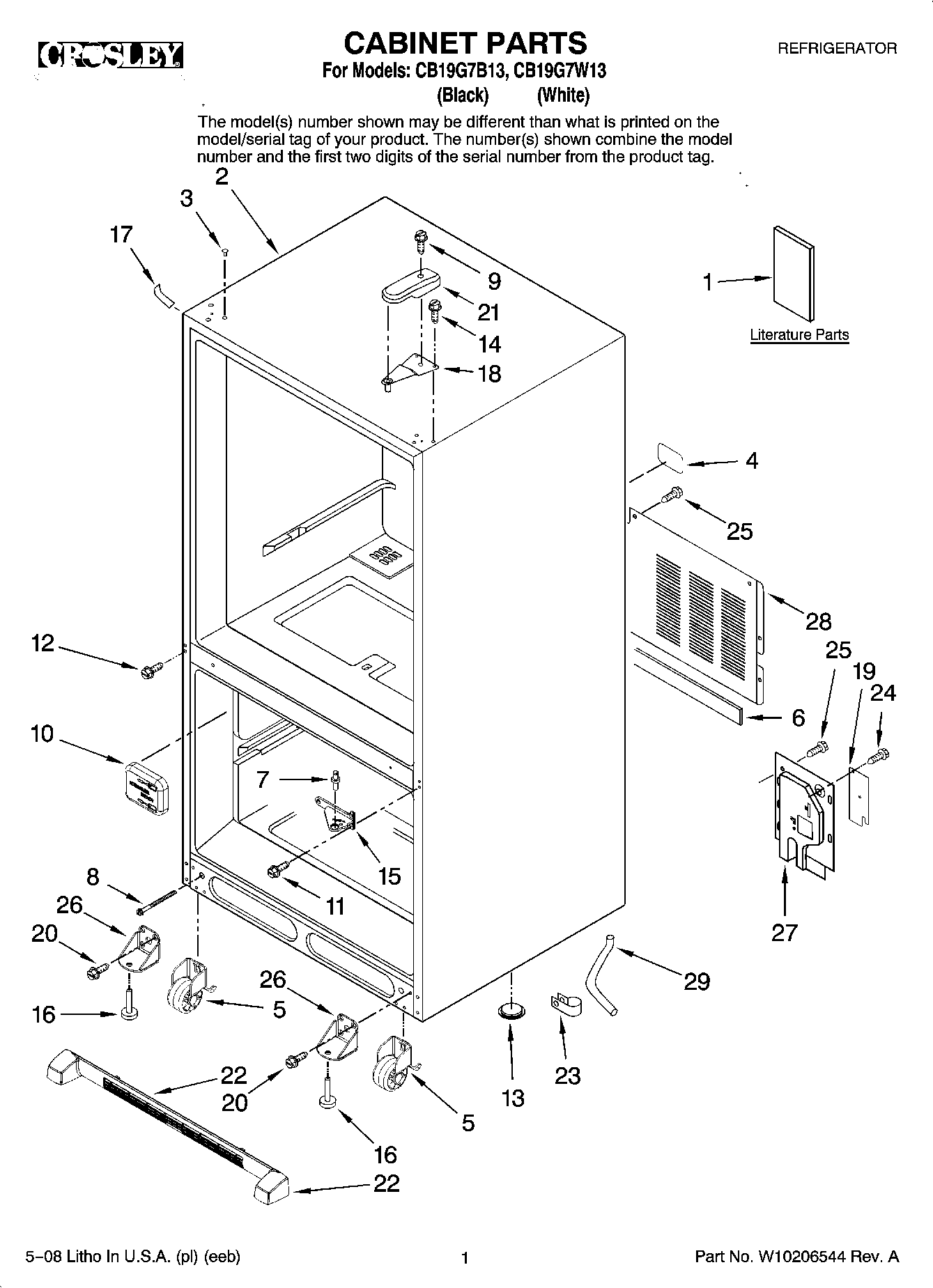

CB19G7B13 01 – CABINET PARTS

CB19G7B13 01 – CABINET PARTS

Written by

in

CB19G7B13 01 – CABINET PARTS

Products

PositionProduct
1Use & Care Guide
1Energy Guide
1Tech Sheet
2Cabinet (Not A Servicable Part)
3WP67001130 Whirlpool Refrigerator White Button Plug
3Plug, Button (3) (Black)
4Label, Fill Tube
5Roller Assy.(Rear)
6Gasket
7WP67006642 Whirlpool Refrigerator Pin
871003131 Whirlpool Oven Screw
9WP8281196 Whirlpool Screw
10WP67001098 Whirlpool Refrigerator Tube Cover
11WP67006380 Whirlpool Screw
12WP489349 Whirlpool Refrigerator Screw
13A3076901 Whirlpool Refrigerator Plug
15WP12607103WD Whirlpool Refrigerator Center Hinge
15WP12607104ED Whirlpool Refrigerator Door Hinge
16W11177593 Whirlpool Leveling Feet
1767003485 Whirlpool Refrigerator Corner Cover (Black)
1767003484 Whirlpool Refrigerator White Corner Cover
18WP12566606ED Whirlpool Refrigerator Door Hinge
19Plate, Cover
2067006564 Whirlpool Refrigerator Screw
2167001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
2167001014 Whirlpool Refrigerator Top Hinge Cover White
22WPW10534167 Whirlpool Refrigerator Front Grille
22WPW10534166 Whirlpool Refrigerator Front Grille
2367001067 Whirlpool Refrigerator Drain Tube Clip
24WP489128 Whirlpool Refrigerator Screw
2567006425 Whirlpool Refrigerator Screw
26Bracket, Foot
27Cover, Water Valve
2867006101 Whirlpool Refrigerator Cover
29Tube, Drain
