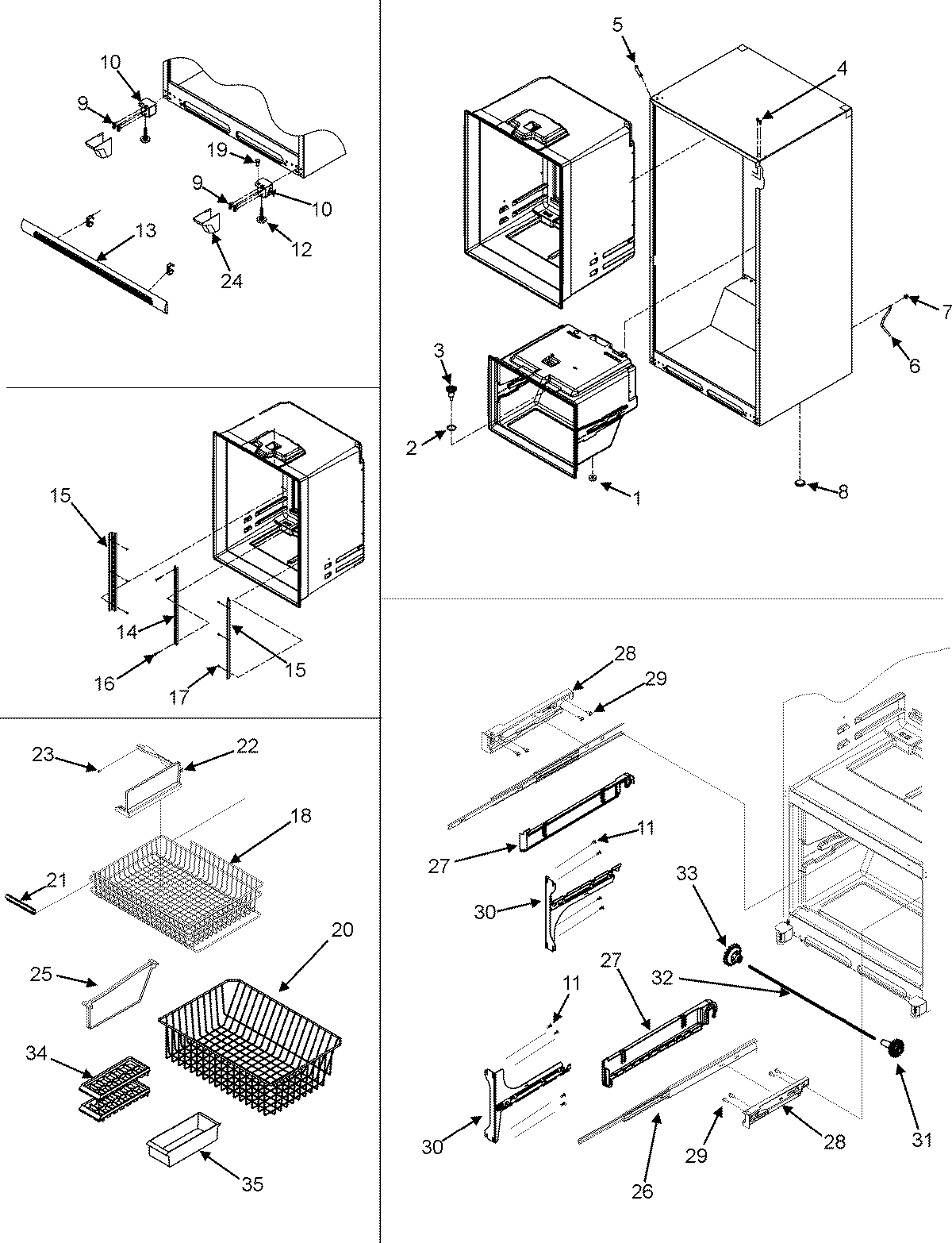

CB19G7W 06 – INTERIOR CABINET & FREEZER SHELVES

Products

Position	Product
NI	12906303WD Whirlpool Refrigerator Bracket
1	Gasket
2	MAY M0500703
3	MAY D7753903
4	MAY A4539607
5	67003484 Whirlpool Refrigerator White Corner Cover
6	MAY 67001066
7	67001067 Whirlpool Refrigerator Drain Tube Clip
8	A3076901 Whirlpool Refrigerator Plug
9	MAY 67003858
10	HINGE, BOTTOM E-CT (WHT)
11	MAY M0211018
12	W11177593 Whirlpool Leveling Feet
13	WPW10534167 Whirlpool Refrigerator Front Grille
13	Clip, Grille
13	WPW10534166 Whirlpool Refrigerator Front Grille
13	MAY 67002399
14	67001073 Whirlpool Refrigerator Center Ladder
15	MAY 67001302
16	MAY M0231425
17	SCREW, SM
18	MAY 67003381
19	PLUG, BUTTON
20	W10503182 Whirlpool Refrigerator Freezer Basket
21	HANDLE, BASKET/SHELF
22	Divider, Upper Basket
23	MAY 67001310
24	MAY 12561901W
25	MAY 67004064
26	MAY 67004862
27	WPW10280608 Whirlpool Refrigerator Bracket
27	WPW10280613 Whirlpool Refrigerator Bracket
28	ADAPTER, SIDE (RT)
28	ADAPTER, SIDE (LT)
29	SCREW, SM
30	BRACKET, DRAWER SLIDE (RT)
30	BRACKET, DRAWER SLIDE (LT)
31	GEAR (LT)
32	W10802329 Whirlpool Refrigerator Shaft
33	GEAR (RT)
34	MAY 67001747
35	MAY 10423131
