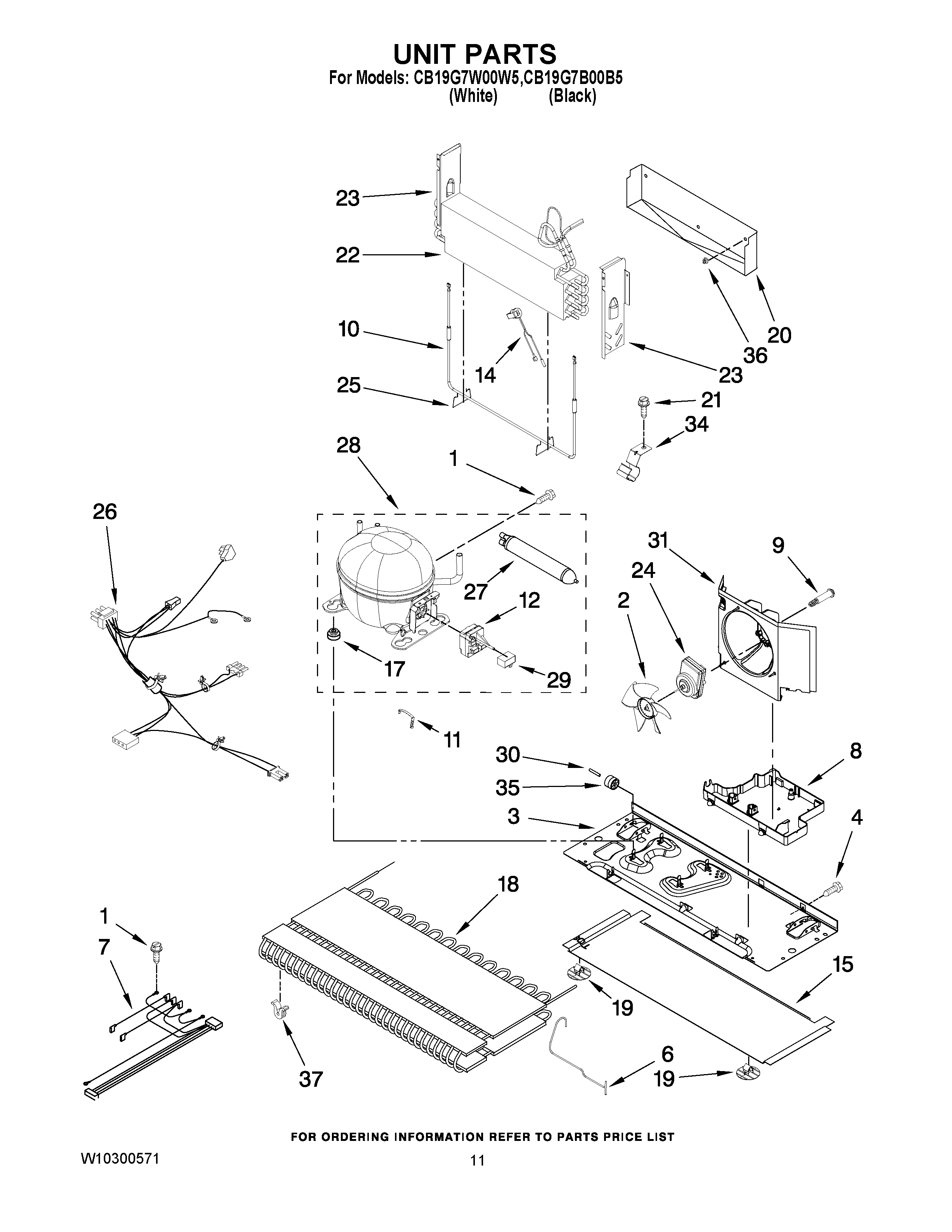

CB19G7W00W5 06 – UNIT PARTS

Products

Position	Product
NI	978030 Whirlpool Refrigerator Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	12992301 Whirlpool Refrigerator Screw
2	WP12825803 Whirlpool Refrigerator Fan Blade
3	W10480107 Whirlpool Refrigerator Plate
4	67006425 Whirlpool Refrigerator Screw
6	TUBE, DISCHARGE
7	HARNESS, EVAP HEATER
8	WPW10655367 Whirlpool Refrigerator Drip Pan
9	W10829281 Whirlpool Refrigerator Screw
10	WP12729127 Whirlpool Refrigerator Heater
11	W11092534 Whirlpool Refrigerator Clip
12	WP2320150 Whirlpool Refrigerator Start Device
12	WPW10197426 Whirlpool Refrigerator Start Device
14	WP67003426 Whirlpool Refrigerator Thermostat
15	W10206336 Whirlpool Refrigerator Extension
17	WPW10169124 Whirlpool Refrigerator Grommet
18	W10346423 Whirlpool Refrigerator Condenser
19	W10206339 Whirlpool Fastener
20	TRAY, DRIP
21	WP33001882 Whirlpool Screw
22	EVAPORATOR
23	Dam (Left Side)
23	Dam (Right Side)
24	W11613295 Whirlpool Condenser Motor
25	W11673433 Whirlpool Clip
26	WPW10234024 Whirlpool Refrigerator Wire Harness
27	WPW10143759 Whirlpool Dryer Filter
28	COMPRESSOR (INCLUDES ITEMS 11,12,17,27)
29	WPW10662129 Whirlpool Refrigerator Run Capacitor
30	67006434 Whirlpool Axle Pin
31	W11556315 Whirlpool Shroud
34	10547003 Whirlpool Refrigerator Dryer Clip
35	WP67005149 Whirlpool Roller
36	CLIP, EVAP (2)
37	WPW10137529 Whirlpool Refrigerator Grommet
