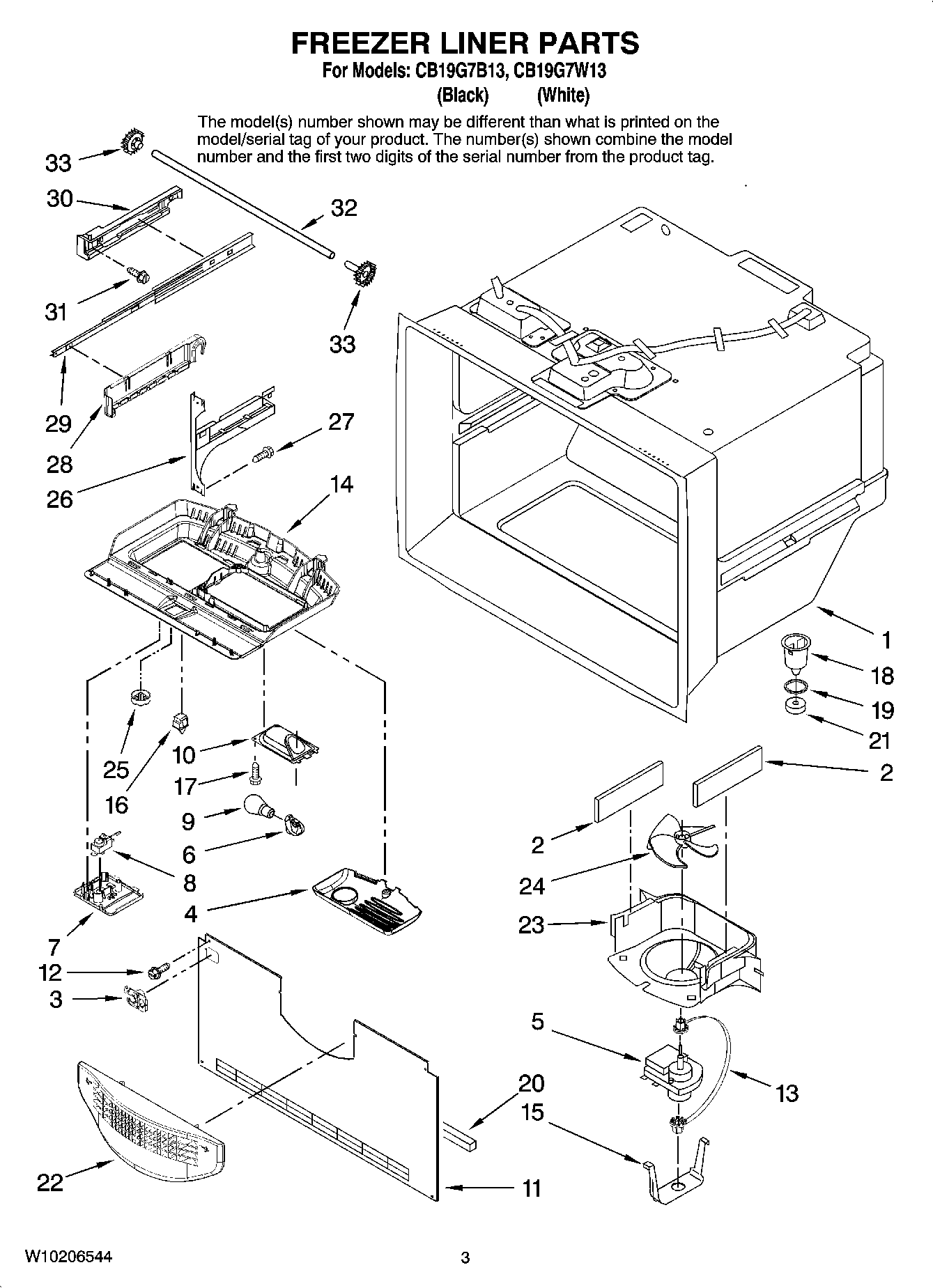

CB19G7W13 02 – FREEZER LINER PARTS

Products

Position	Product
	Harness, Lights (Freezer)
	Following Parts Not Illustrated
1	Liner (Not A Seviceable Part)
2	W10856123 Whirlpool Refrigerator Gasket
3	W11448709 Whirlpool Refrigerator Bracket
4	Cover, Light
5	WPW10128551 Whirlpool Evaporator Fan Motor
6	W11447232 Whirlpool Refrigerator Socket
7	Panel Control
8	WP67003000 Whirlpool Refrigerator Control
9	W11679940 Whirlpool Refrigerator Light Bulb Assembly
10	Housing, Light
11	Cover, Evaporator
12	67006425 Whirlpool Refrigerator Screw
13	W10121318 Whirlpool Refrigerator Grommet
14	WP12476002 Whirlpool Refrigerator Module
16	W11396033 Whirlpool Refrigerator Rocker Switch
17	W10709797 Whirlpool Refrigerator Screw
18	W10815413 Whirlpool Refrigerator Funnel
19	WPM0500703 Whirlpool Refrigerator O-Ring Seal
20	A3189394 Whirlpool Refrigerator Gasket
21	WPB8381501 Whirlpool Refrigerator Door Gasket
22	WPW10175909 Whirlpool Grille Assembly
23	WPW10167023 Whirlpool Refrigerator Shroud
24	WP2169142 Whirlpool Fan Blade
25	Knob, Fz Control
26	WPW10330991 Whirlpool Refrigerator Bracket
26	WPW10330993 Whirlpool Refrigerator Bracket
27	WP98165 Whirlpool Screw
28	WPW10280613 Whirlpool Refrigerator Bracket
28	WPW10280608 Whirlpool Refrigerator Bracket
29	W11658402 Whirlpool Drawer Slide Rail
30	Adapter, Slide (Left)
30	WPW10284681 Whirlpool Refrigerator Bracket
31	WP489474 Whirlpool Refrigerator Screw
32	W10802329 Whirlpool Refrigerator Shaft
33	12002497 Whirlpool Refrigerator Drawer Gear Kit
