CBR1415AGS 02 – CONTROL PANEL/TOP ASSEMBLY – Aparts

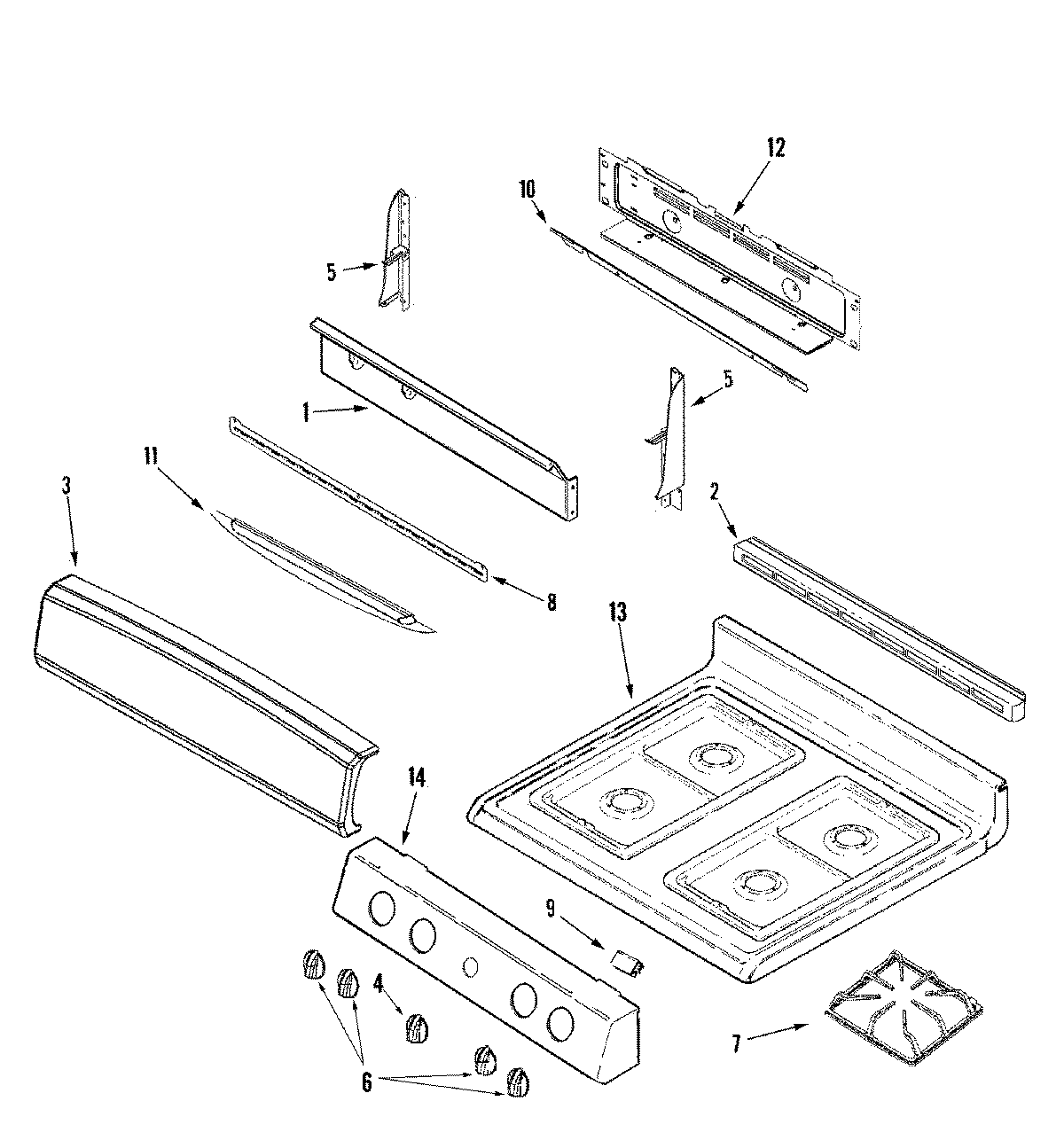

CBR1415AGS 02 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 7101P147-60
1	MAY 74009779
2	SCREW (10ABX1/4P TR ZN)
2	MAY 74009797
3	MAY 74011255
4	MAY 74010732
5	WP74003976 Whirlpool Screw
5	MAY 74010202
5	MAY 74010201
7	WP2003X030-00 Whirlpool Burner Grate
8	MAY 74009780
9	MAY 74004827
10	SCREW
10	MAY 74009978
11	WP98008545 Whirlpool Screw
11	MAY 74009800
12	MAY 74009943
12	MAY 74006536
12	MAY 71001394
12	WP90767 Whirlpool Screw
13	WP74005546 Whirlpool RU Spacer
13	W11189172 Whirlpool Glide Drawer
13	MAY 74010711
14	MAY 74010728
