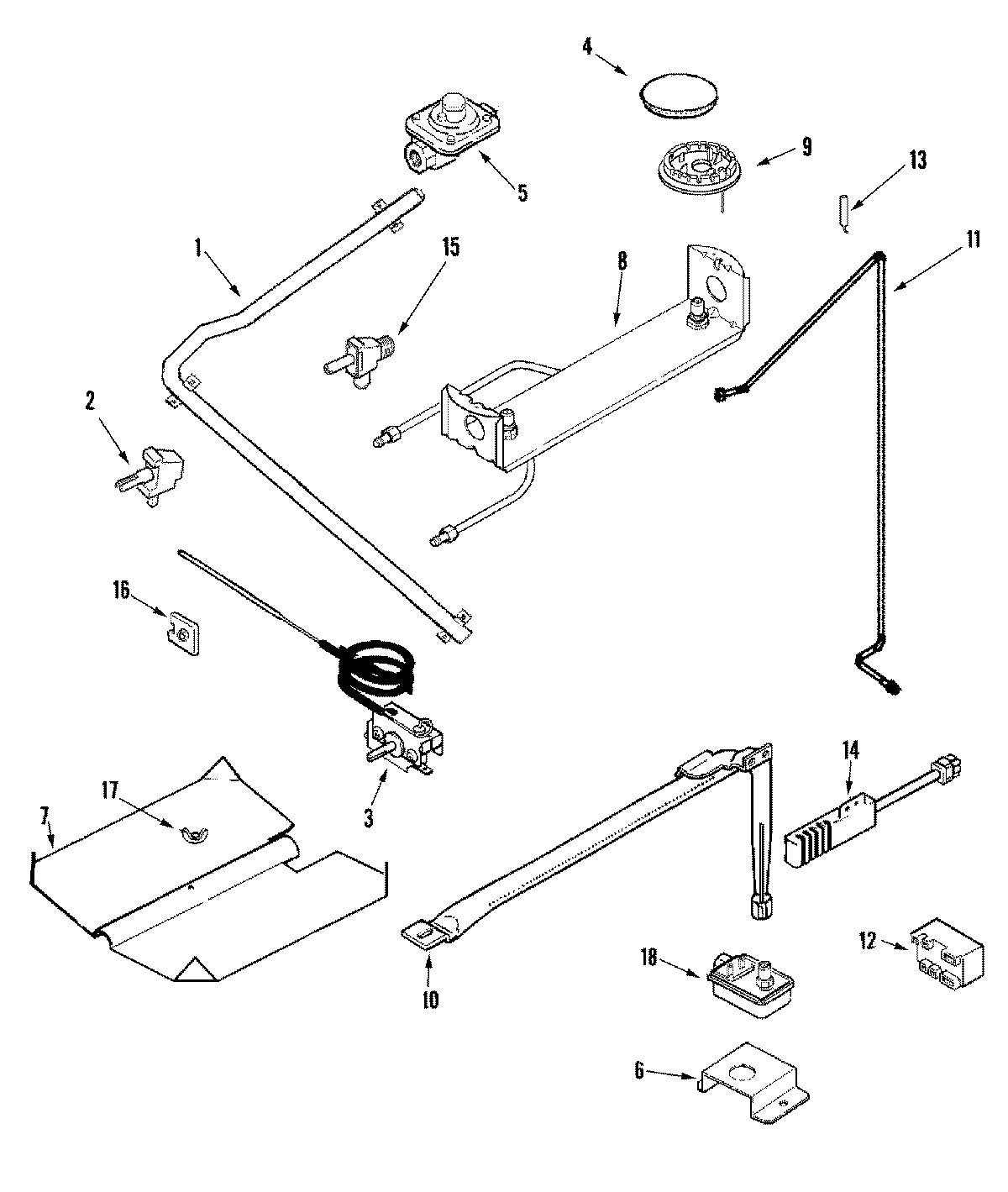

CBR1430BGH 04 – GAS CONTROLS

Products

Position	Product
1	MAY 74002454
2	WP8273096 Whirlpool Screw
2	MAY 74002532
3	MAY 7101P280-60
3	WP74002390 Whirlpool Oven Thermostat
4	MAY 74007534
5	MAY 74007524
6	MAY 74005051
7	MAY 74002393
8	MAY 74007629
8	MAY 74007630
9	MAY 74007528
9	MAY 74007527
9	MAY 7101P343-60
10	SCREW
10	MAY 74002434
11	MAY 74006417
12	MAY 74004285
13	WP8523793 Whirlpool Oven Surface Igniter
14	SCREW (10-24X5/16-NI)
14	74007498 Whirlpool Range Flat Igniter
15	12002280 Whirlpool Oven Valve Kit and Screw
15	MAY 71003231
16	MAY 74007095
17	NUT, WING
18	MAY 74006353
