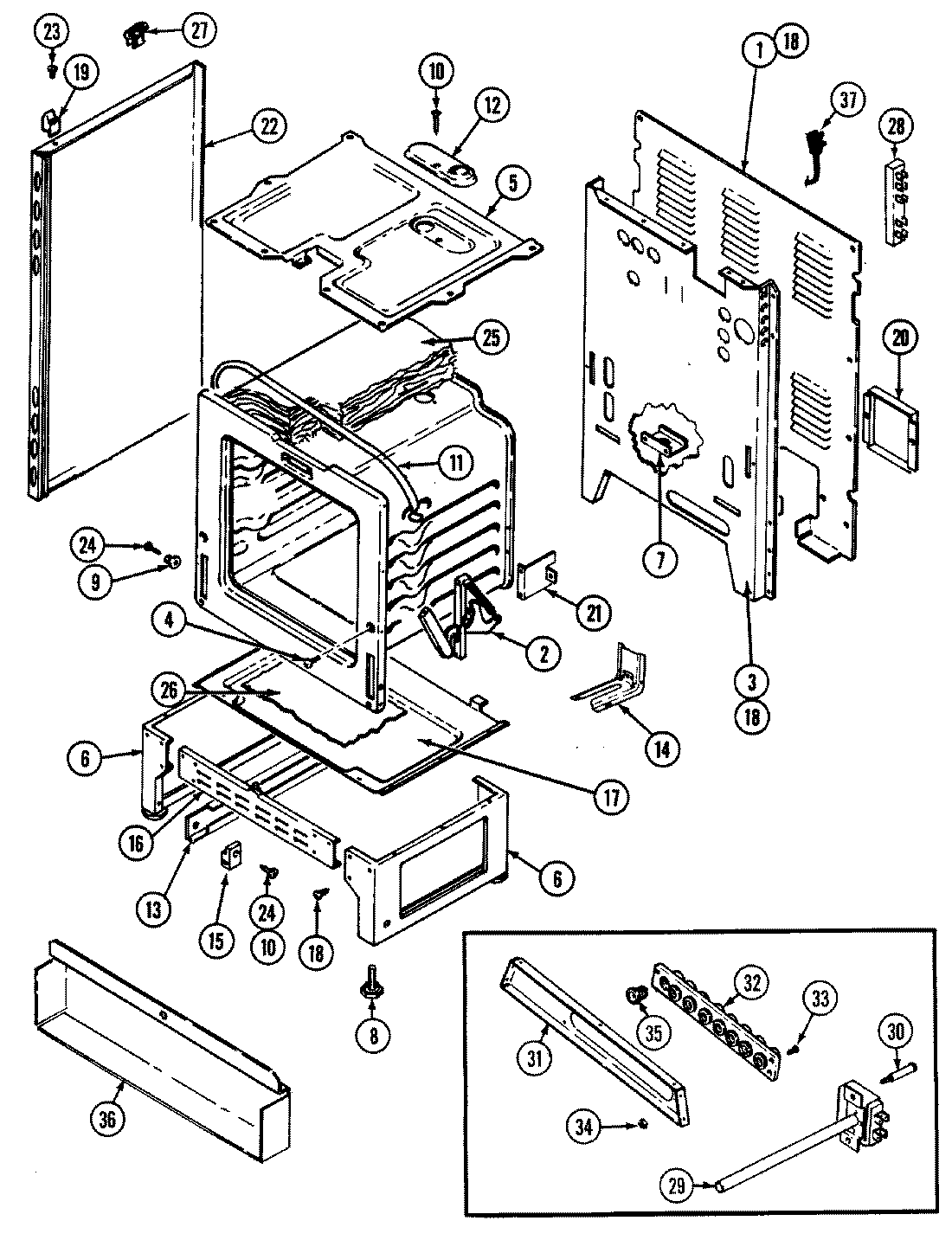

CC3531WRA 01 – BODY

Products

Position	Product
1	MAY 4005F381-51
3	MAY 4002F184-80
4	SCREW, HINGE
5	MAY 4011F208-19
6	MAY 4020W007-80
7	MAY 3605F174-51
8	MAY 7101P306-60
9	MAY 8004P024-60
10	SCREW
11	MAY 4820F001-59
12	COVER, VENT
13	MAY 3406F028-51
14	MAY 7101P289-60
14	MAY 3801F218-51
15	MAY 8004P025-60
16	MAY 4020F001-80
17	MAY 3804F109-51
18	MAY 7101P290-60
19	SPACER, MAIN TOP (RT)
19	SPACER, MAIN TOP (LT)
20	MAY 4005F427-51
21	SUPPORT,OVEN REAR
23	MAY 7118P013-60
24	MAY 7101P300-60
25	MAY 4804F031-60
25	MAY 4804F032-60
26	MAY 8312P058-60
27	MAY 8007P023-60
28	WPW10245259 Whirlpool Terminal Block
28	SCREW (10ABX1.0-ZN)
29	MAY 7404P057-60
30	MAY 7118P020-60
31	MAY 3801F309-80
32	MAY 7401P031-60
33	MAY 7101P068-60
34	MAY 7103P064-60
35	MAY 7416P005-60
35	MAY 7416P006-60
36	MAY 4005F417-51
36	MAY 7101P263-60
37	MAY 7402P036-60
