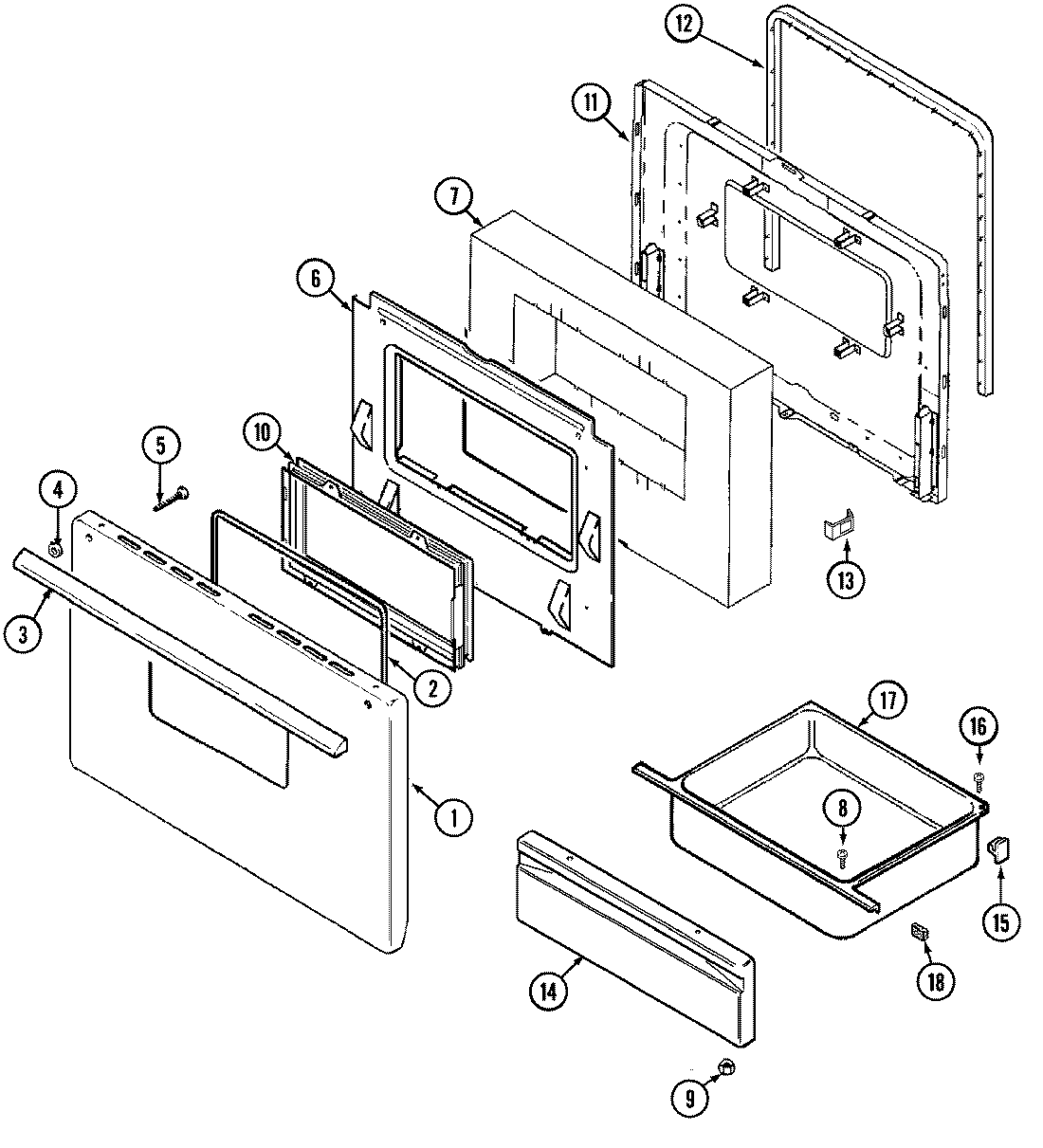

CC3531WUV 03 – DOOR/DRAWER (CC3531WUx)

Products

Position	Product
1	MAY 2401F121-71
2	MAY 7201P017-60
5	WP3387230 Whirlpool Screw
6	MAY 3601F236-47
7	MAY 7002P156-60
8	MAY 7101P037-60
9	W10080180 Whirlpool Nut
11	MAY 2402W212-19
12	WP7212P043-60 Whirlpool Oven Door Seal Gasket
13	CLIP, DOOR
14	MAY 2416F039-62
15	WP8004P026-60 Whirlpool Support
16	MAY 7101P329-60
17	MAY 3405F019-80
18	MAY 7208P011-60
