CC3531XRA 03 – DOOR/DRAWER (CC3531WRW, CC3531WRV) – Aparts

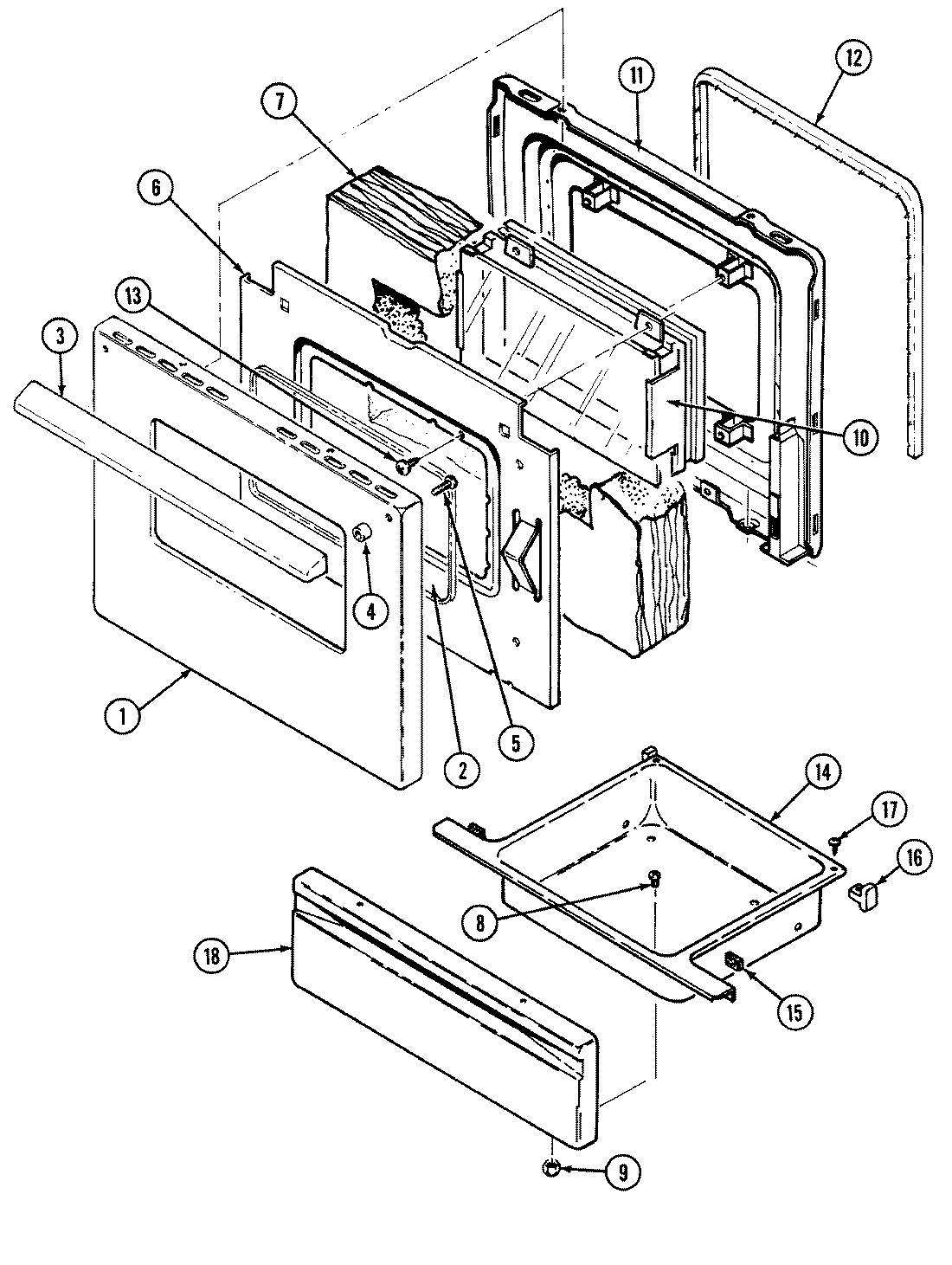

CC3531XRA 03 – DOOR/DRAWER (CC3531WRW, CC3531WRV)

Products

Position	Product
1	CLIP, DOOR
1	MAY 2401F097-71
2	MAY 7201P017-60
5	MAY 7101P080-60
6	MAY 3601F232-45
7	MAY 4804F033-60
8	WP4159193 Whirlpool Screw
9	WPW10131078 Whirlpool Nut Assembly
10	MAY 7907P015-60
10	MAY 7907P022-60
11	MAY 2402W203-19
12	MAY 7212P034-60
13	MAY 7101P290-60
14	MAY 3405F015-80
15	MAY 8010P086-60
16	WP8004P026-60 Whirlpool Support
17	MAY 7101P329-60
18	MAY 2416F039-62
