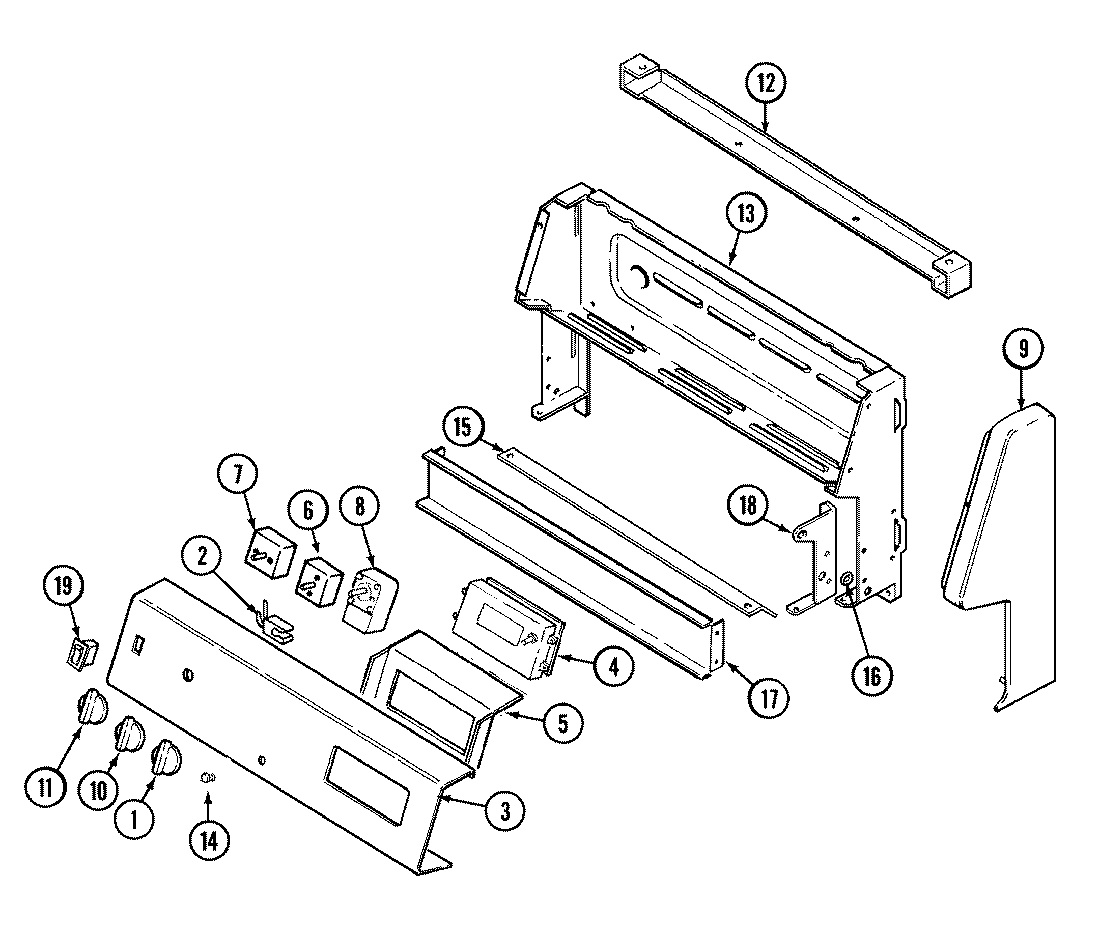

CC3531XUW 02 – CONTROL PANEL

Products

Position	Product
NI	MAY 74001592
NI	MAY 5170D118-60
NI	MAY 8113P023-60
NI	MAY 5125A338-60
NI	MAY 16002080
2	W10852510 Whirlpool Indicator Light
3	MAY 7703P639-60
4	MAY 7602P118-60
4	SCREW (8BX3/8-NI)
5	MAY 3801F340-45
5	WPY706189 Whirlpool Stove Screw
6	WP7403P255-60 Whirlpool Selector Switch
7	WP7403P239-60 Whirlpool Oven Switch
7	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
8	WP7404P105-60 Whirlpool Thermostat
9	MAY 7726P059-60
9	MAY 7726P060-60
11	MAY 7731P082-60
11	SCREW
12	MAY 4001F064-51
13	MAY 74002162
14	W11690131 Whirlpool Light Lens
15	MAY 3604F201-80
16	MAY 7103P129-60
17	MAY 3802F088-51
18	MAY 3418D097-60
18	MAY 3418D098-60
19	7403P067-60 Whirlpool Light Switch
