CC3872XRA 03 – DOOR/DRAWER – Aparts

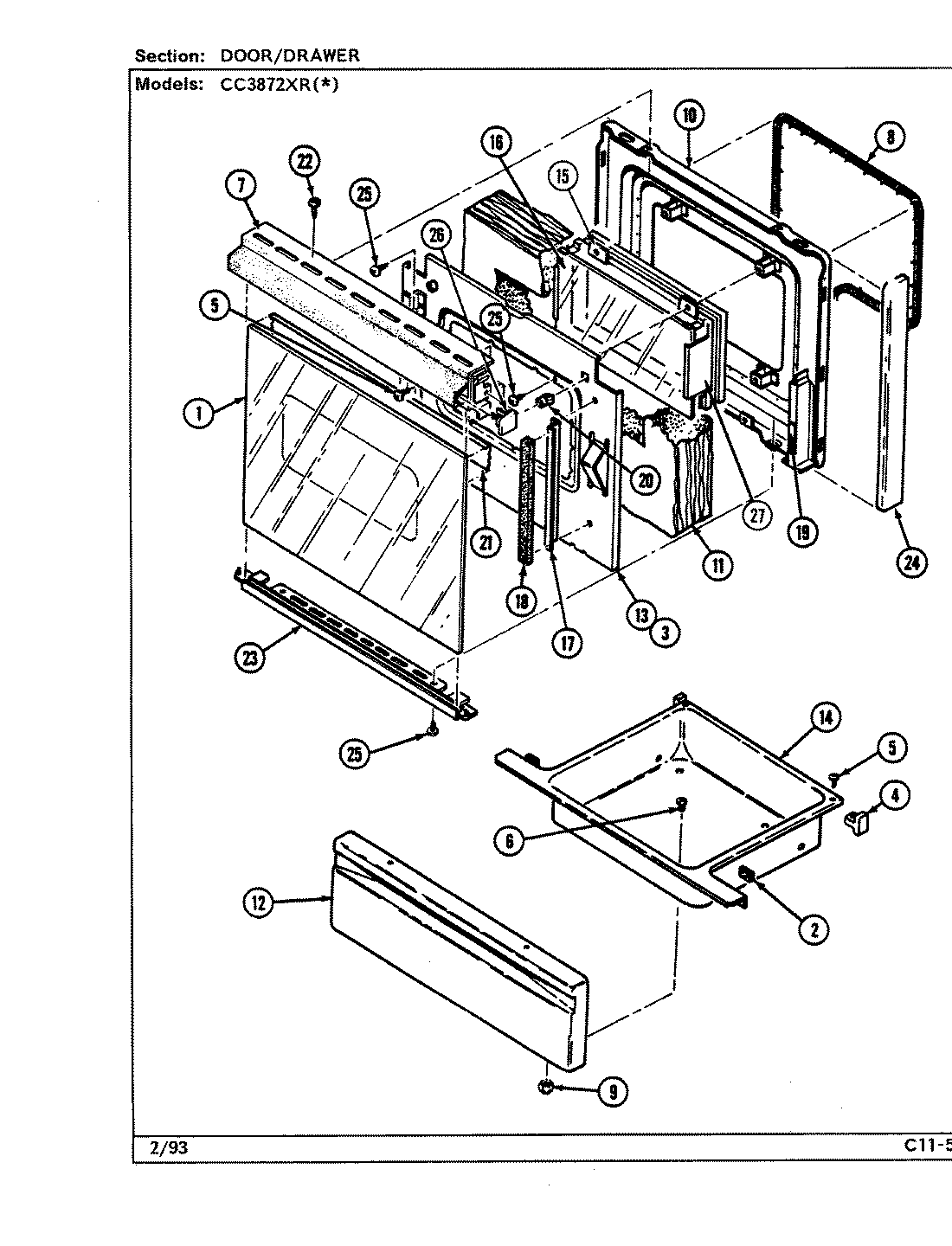

CC3872XRA 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 7902P321-60
2	MAY 8010P086-60
3	MAY 8010P085-60
4	WP8004P026-60 Whirlpool Support
5	MAY 7101P329-60
6	WP4159193 Whirlpool Screw
7	MAY 7701P103-60
8	GASKT-DOOR OVEN
9	WPW10131078 Whirlpool Nut Assembly
10	MAY 2402W202-19
11	MAY 4804F034-60
12	MAY 2416F039-64
13	MAY 3601F232-45
14	MAY 3405F015-80
15	MAY 7907P009-60
16	MAY 7902P342-60
16	MAY 7902P341-60
16	MAY 7902P323-60
17	MAY 3818F052-51
18	MAY 7208P002-60
19	MAY 7208P011-60
20	MAY 7103P045-60
21	TAPE, FOIL (3`` WIDE)
22	WP98008545 Whirlpool Screw
23	MAY 7744P105-60
24	MAY 7744P055-60
25	MAY 7101P290-60
26	MAY 7744P076-60
26	MAY 7744P075-60
27	MAY 7907P014-60
