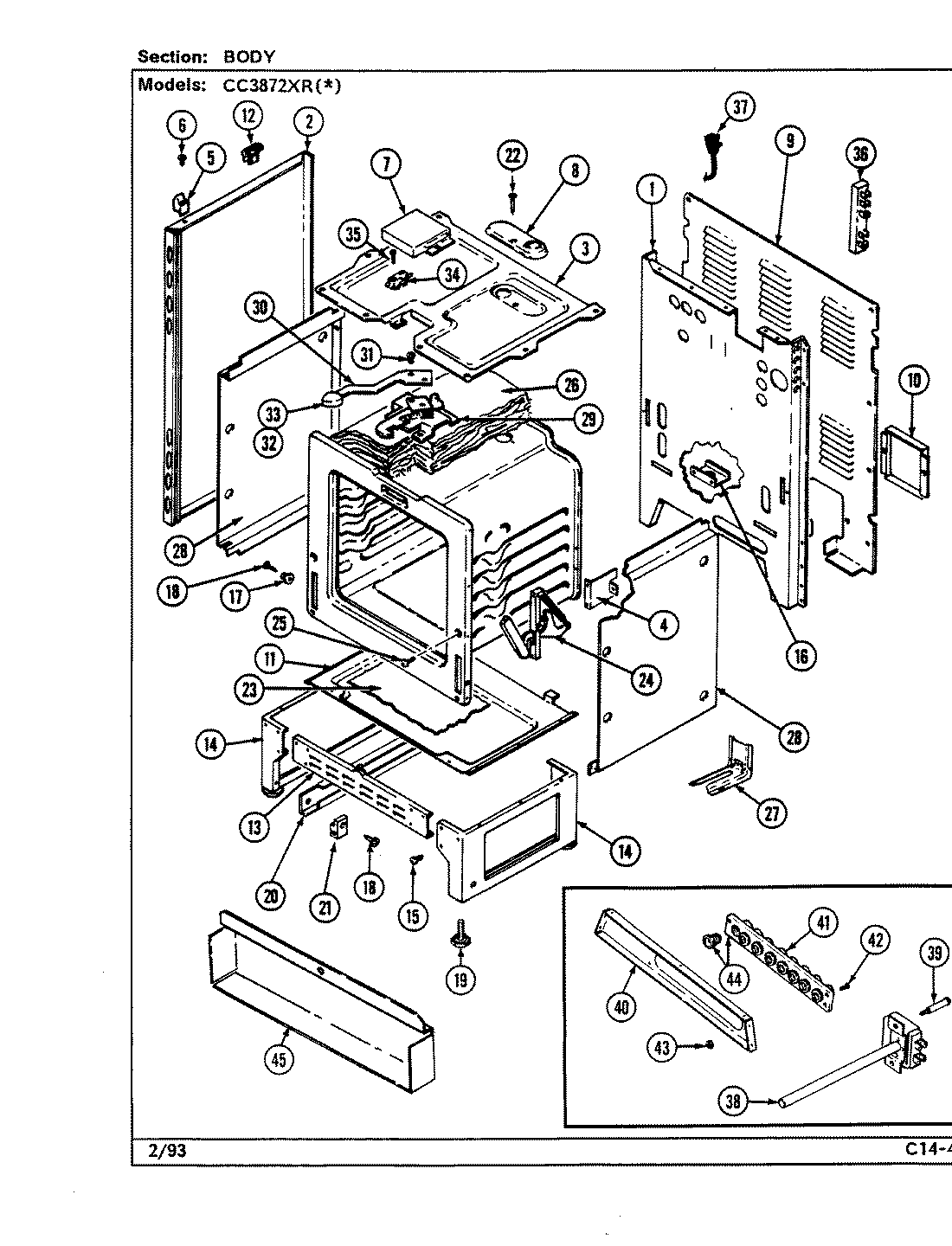

CC3872XRW 01 – BODY – Aparts

CC3872XRW 01 – BODY

Products

Position	Product
1	MAY 4002F184-80
2	MAY 5700D345-71
2	MAY 5700D344-71
3	MAY 4011F219-19
3	MAY 74001753
4	SUPPORT,OVEN REAR
5	SPACER, MAIN TOP (RT)
5	SPACER, MAIN TOP (LT)
6	MAY 7118P013-60
7	MAY 4005F398-80
8	COVER, VENT
9	MAY 4005F381-51
10	MAY 4005F427-51
11	MAY 3804F109-51
12	MAY 8007P023-60
13	MAY 4020F001-80
14	MAY 4020W007-80
15	MAY 7101P290-60
16	MAY 3605F174-51
17	MAY 8004P024-60
18	MAY 7101P300-60
19	MAY 7101P306-60
20	MAY 3406F028-51
21	MAY 8004P025-60
22	SCREW
23	MAY 8312P058-60
24	MAY 7106P033-60
25	SCREW, HINGE
26	MAY 4804F030-60
26	MAY 4804F029-60
27	MAY 3801F218-51
27	MAY 7101P289-60
28	MAY 3804F103-51
29	MAY 7101P280-60
29	MAY 8002P025-60
30	MAY 8009P016-60
30	MAY 74001725
31	SCREW, LEVER
31	MAY 7109P015-60
32	MAY 7112P003-60
33	MAY 7701P088-60
34	MAY 74001708
34	MAY 3604F203-45
34	MAY 4804F028-60
34	MAY 7403P323-60
35	MAY 7101P130-60
36	MAY 7401P041-60
37	MAY 7402P036-60
38	MAY 7404P057-60
39	MAY 7118P020-60
40	MAY 3801F309-80
41	MAY 7401P031-60
42	MAY 7101P068-60
43	MAY 7103P064-60
44	MAY 7416P004-60
44	MAY 7416P005-60
44	MAY 7416P006-60
45	MAY 5195D092-60
45	MAY 4005F417-51
45	MAY 7101P263-60
45	MAY 5195D082-60
45	MAY 5175D078-60
