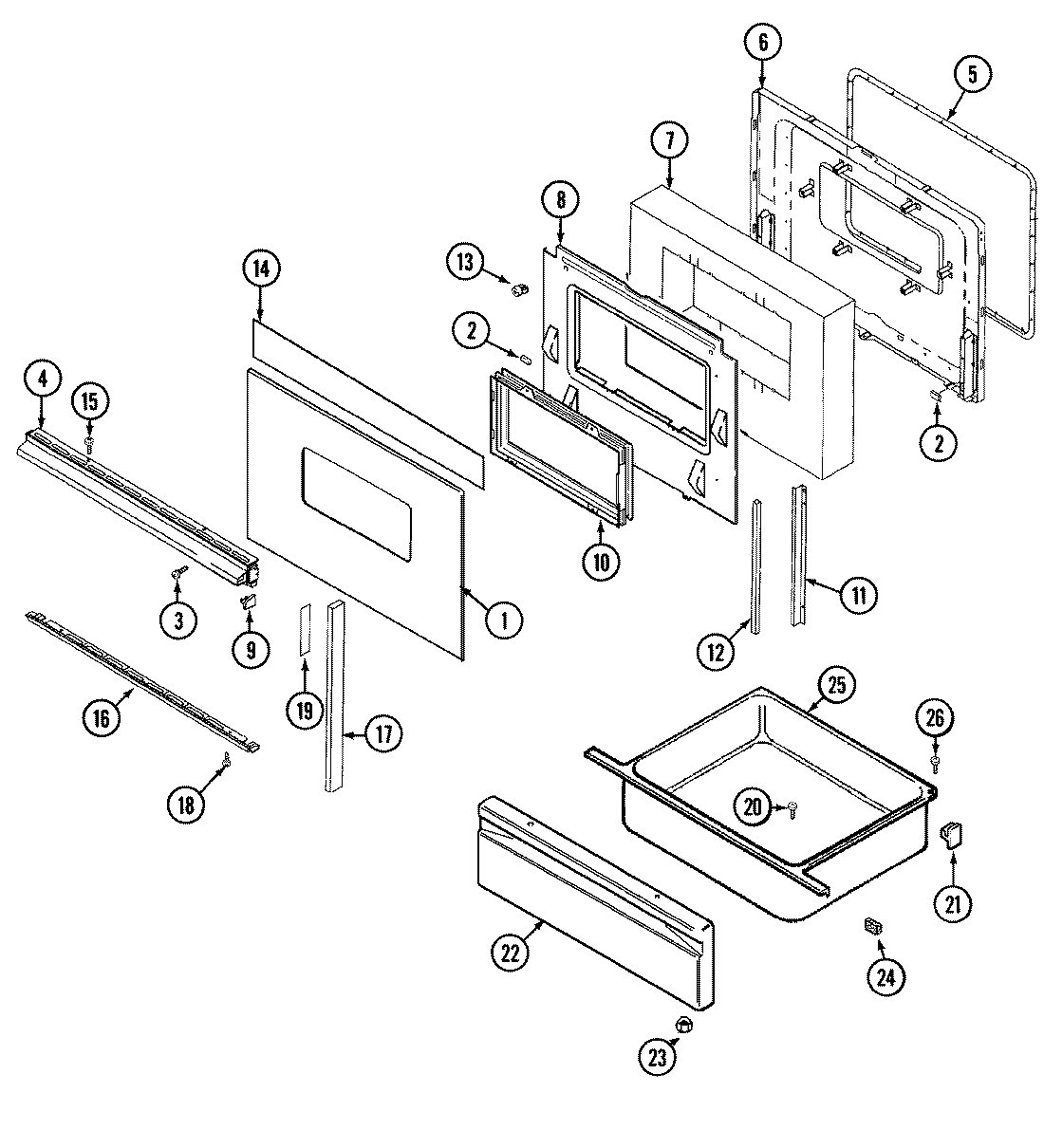

CC3872XVA 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 7902P321-60
2	MAY 8010P086-60
4	MAY 7701P103-60
5	GASKT-DOOR OVEN
6	MAY 2402W202-19
7	MAY 7002P155-60
8	MAY 8010P085-60
8	MAY 3601F236-47
9	MAY 7744P076-60
9	MAY 7744P075-60
10	MAY 7907P021-60
10	MAY 3805F002-34
11	MAY 3818F052-51
12	MAY 7208P002-60
13	MAY 8010P075-60
14	MAY 8270P078-60
15	WP98008545 Whirlpool Screw
16	MAY 7744P105-60
17	MAY 7744P055-60
18	SCREW
19	TAPE
20	WP4159193 Whirlpool Screw
21	WP8004P026-60 Whirlpool Support
22	MAY 2416F039-64
23	WPW10131078 Whirlpool Nut Assembly
24	MAY 7208P011-60
25	MAY 3405F019-80
26	MAY 7101P290-60
