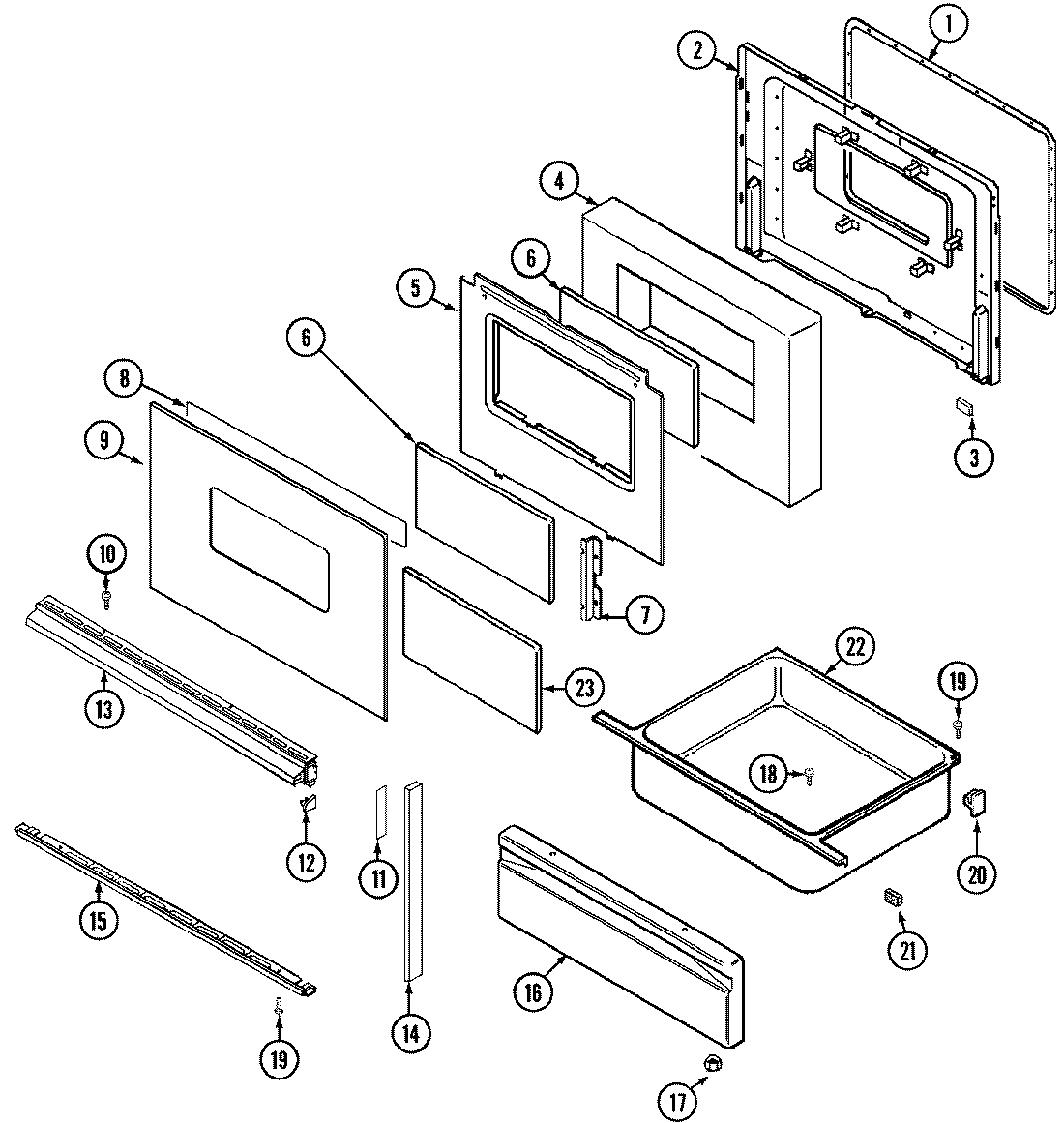

CC3872XVA 04 – DOOR/DRAWER (SER. PRE. 21)

Products

Position	Product
1	GASKT-DOOR OVEN
2	MAY 2402W209-19
3	MAY 8010P085-60
4	MAY 74001842
5	MAY 74001843
6	MAY 74001841
7	MAY 74001844
8	MAY 8270P078-60
9	MAY 7902P321-60
10	WP98008545 Whirlpool Screw
11	MAY 8270P093-60
12	MAY 7744P076-60
12	MAY 7744P075-60
13	MAY 7701P103-60
14	MAY 7744P055-60
15	MAY 7744P105-60
16	MAY 2416F039-64
17	WPW10131078 Whirlpool Nut Assembly
18	WP7101P072-60 Whirlpool Screw
20	WP8004P026-60 Whirlpool Support
21	MAY 7208P011-60
22	SCREW
22	MAY 3405F019-80
23	MAY 74002002
