CC3872XVW 01 – BODY – Aparts

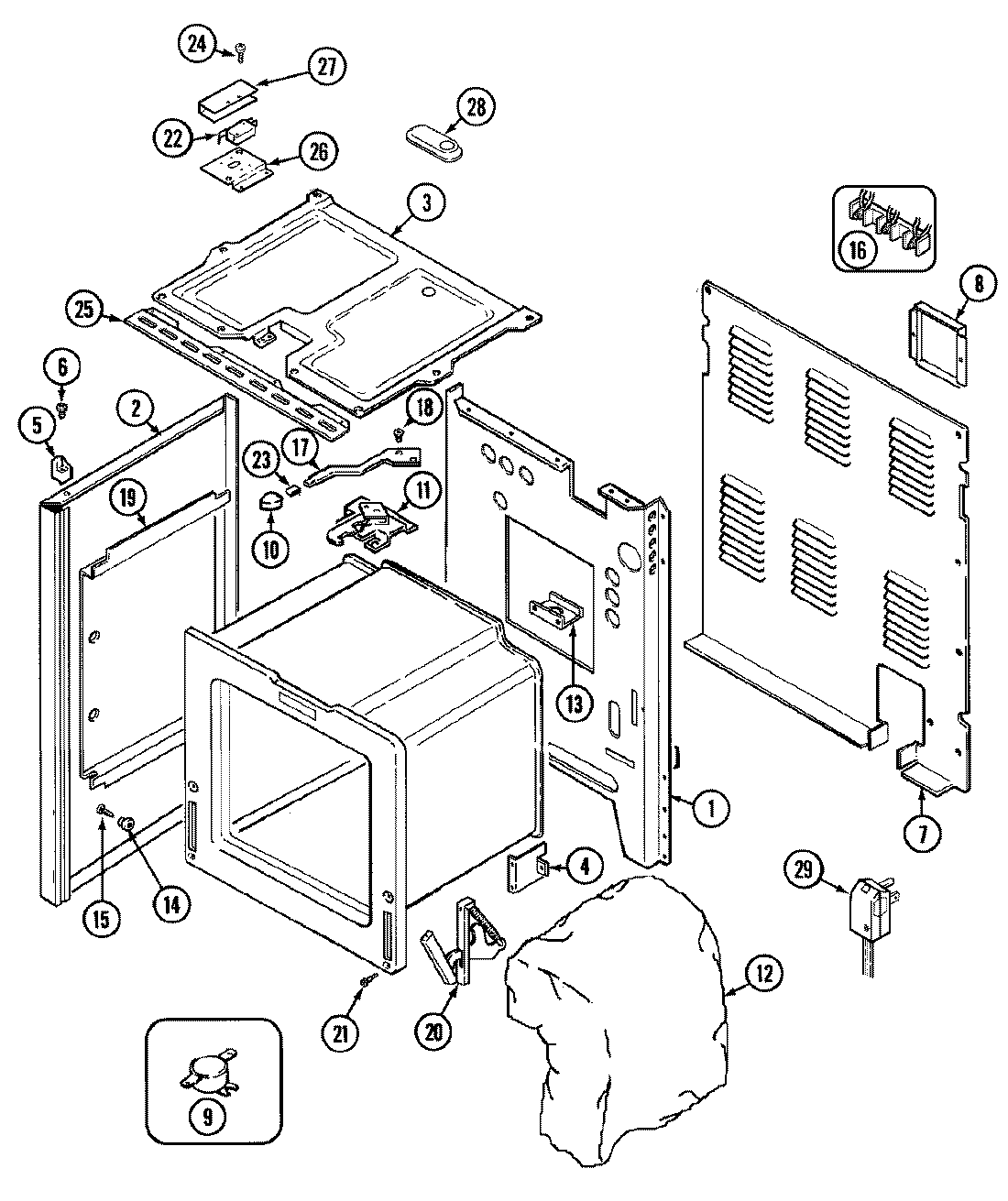

CC3872XVW 01 – BODY

Products

Position	Product
1	MAY 74001772
2	MAY 74001884
2	MAY 7003P067-60
2	MAY 8270P078-60
3	MAY 4011F240-19
3	MAY 74001753
4	SUPPORT,OVEN REAR
5	SPACER, MAIN TOP (RT)
5	SPACER, MAIN TOP (LT)
6	MAY 7101P313-60
7	MAY 4005F455-51
8	MAY 4005F427-51
9	MAY 7403P160-60
10	MAY 74001719
11	MAY 8002P025-60
11	MAY 4804F028-60
11	MAY 7101P280-60
12	MAY 4804F036-60
12	MAY 74001800
13	MAY 3605F174-51
14	MAY 8004P024-60
16	MAY 7401P041-60
17	MAY 8009P024-60
17	MAY 74001725
18	SCREW, LEVER
19	MAY 3804F103-51
20	MAY 7106P056-60
21	SCREW (10-24X5/16-NI)
22	MAY 7403P323-60
22	MAY 74001708
22	MAY 74001745
23	MAY 7112P112-60
24	MAY 7101P031-60
25	MAY 3801F305-80
26	MAY 3605F197-51
26	MAY 74001744
27	MAY 74001999
28	COVER, VENT
28	MAY 74001449
29	MAY 7402P050-60
