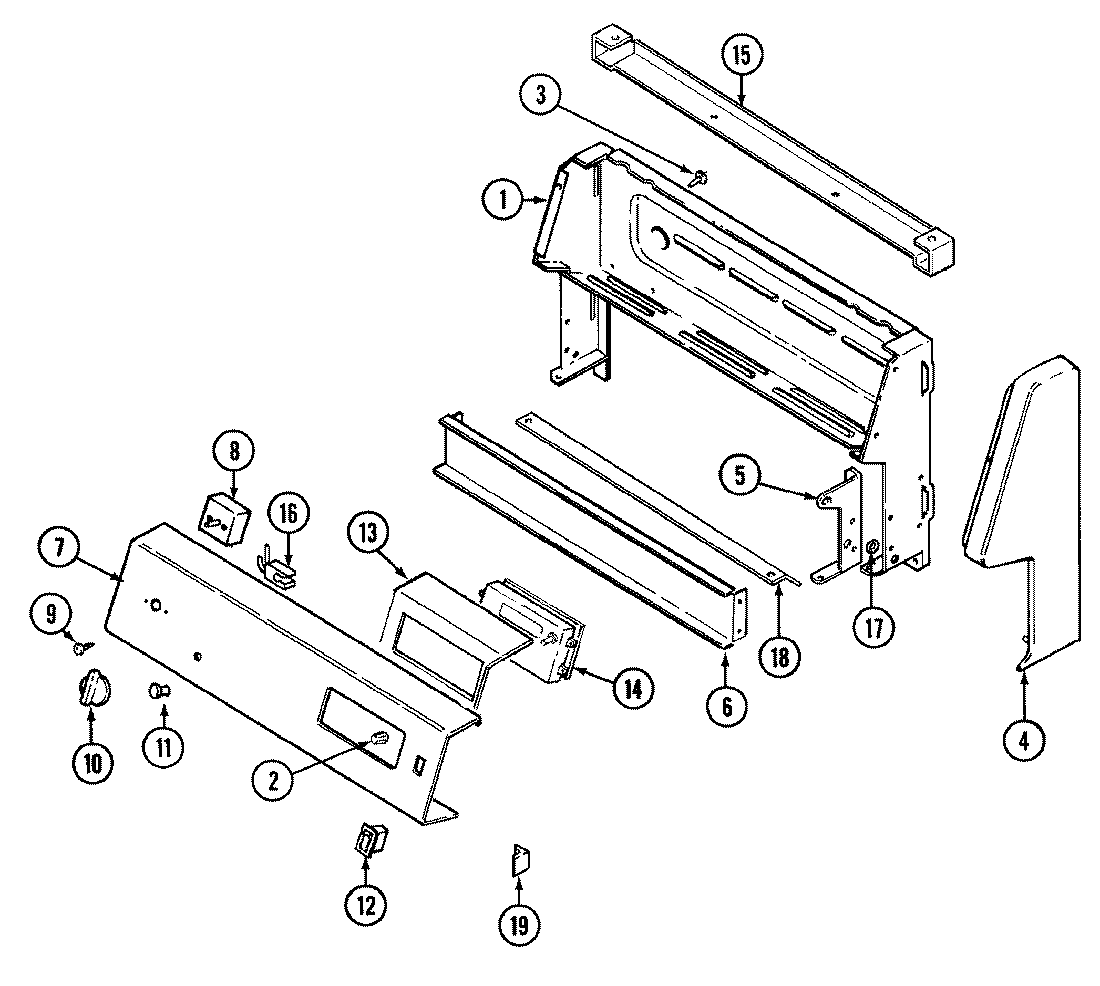

CC3872XVW 02 – CONTROL PANEL

Products

Position	Product
NI	MAY 8113P068-60
NI	MAY 74001007
NI	MAY 74001427
NI	MAY 16002080
NI	MAY 5170P205-60
NI	MAY 74001013
1	MAY 74002162
2	WP7711P492-60 Whirlpool Clock Knob
4	MAY 7726P059-60
4	MAY 7726P060-60
5	MAY 3807F453-51
5	MAY 3807F454-51
5	MAY 8114P348-60
6	MAY 3802F088-51
7	MAY 7703P591-60
8	WP7403P239-60 Whirlpool Oven Switch
8	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
9	SCREW
10	MAY 7731P082-60
11	W11690131 Whirlpool Light Lens
12	MAY 7403P102-60
13	MAY 74001703
13	WPY706189 Whirlpool Stove Screw
14	MAY 74001005
15	MAY 4001F064-51
16	W10852510 Whirlpool Indicator Light
17	WP3195558 Whirlpool Nut
18	MAY 3604F201-80
18	SCREW (8BX3/8-NI)
19	MAY 8010P083-60
19	WP59002061 Whirlpool Microwave Screw
