CC3878VRA 01 – BODY – Aparts

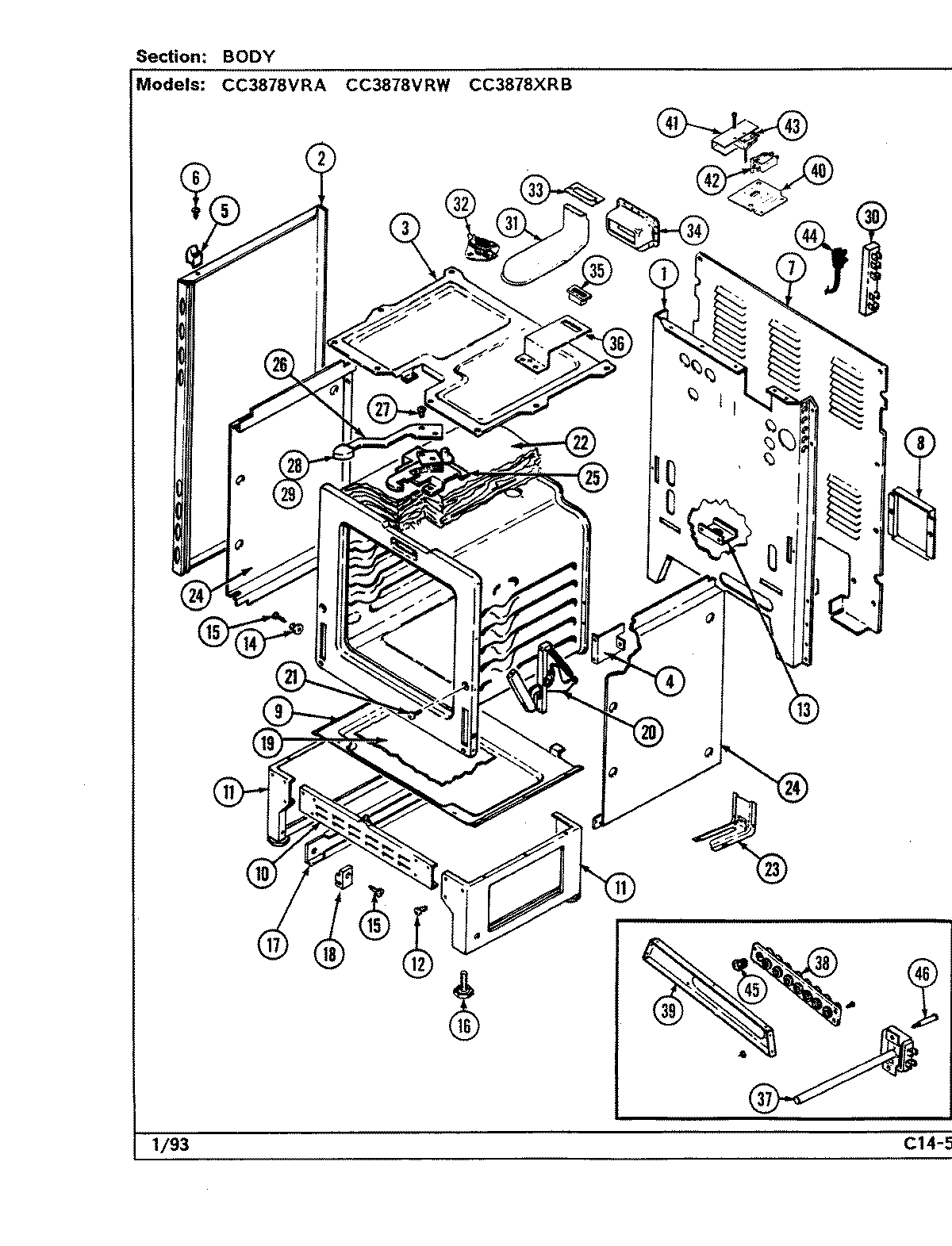

CC3878VRA 01 – BODY

Products

Position	Product
1	MAY 4002F184-80
2	MAY 5700D344-74
2	MAY 5700D345-74
3	MAY 74001707
3	MAY 4011F207-19
4	SUPPORT,OVEN REAR
5	SPACER, MAIN TOP (LT)
5	SPACER, MAIN TOP (RT)
6	MAY 7118P013-60
7	MAY 4005F348-51
8	MAY 4005F427-51
9	MAY 3804F109-51
10	MAY 4020F001-80
11	MAY 4020W007-80
12	MAY 7101P290-60
13	MAY 3605F174-51
14	MAY 8004P024-60
15	MAY 7101P300-60
16	MAY 7101P306-60
17	MAY 3406F028-51
18	MAY 8004P025-60
19	MAY 8312P058-60
20	MAY 7106P033-60
21	SCREW, HINGE
22	MAY 4804F029-60
22	MAY 4804F030-60
23	MAY 7101P289-60
23	MAY 3801F218-51
24	MAY 3804F103-51
25	MAY 7101P280-60
25	MAY 8002P025-60
26	MAY 74001725
26	MAY 8009P016-60
27	MAY 7109P015-60
27	SCREW, LEVER
28	MAY 7112P003-60
29	MAY 7701P088-60
30	MAY 7401P041-60
31	MAY 4006W107-45
32	MAY 7403P160-60
33	MAY 7201P054-60
34	MAY 3826W014-45
35	MAY 7407P089-60
36	MAY 3801F312-45
37	MAY 7404P057-60
38	MAY 7401P031-60
39	MAY 3801F309-80
40	MAY 3605F185-51
41	MAY 7003P049-60
42	MAY 74001743
42	MAY 7403P317-60
43	MAY 7403P323-60
43	MAY 74001708
44	MAY 7402P036-60
45	MAY 7416P004-60
45	MAY 7416P006-60
45	MAY 7416P005-60
46	MAY 5195D092-60
46	MAY 7118P020-60
46	MAY 5175D052-60
