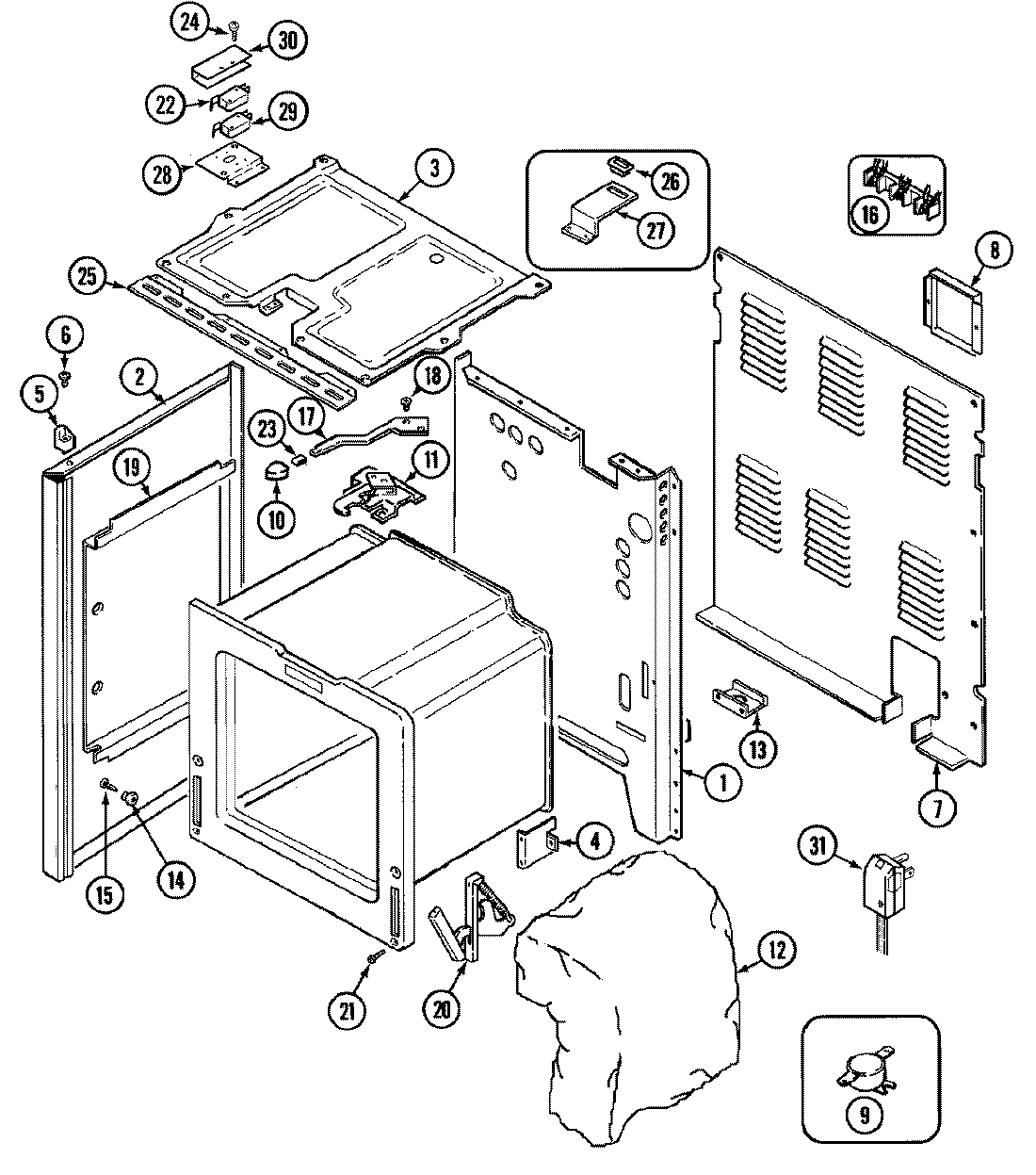

CC3878VVV 01 – BODY
Written by
in
CC3878VVV 01 – BODY
Products
Position
Product
1
MAY 74001772
1
SCREW
2
MAY 2618F110-71
2
MAY 7003P067-60
2
MAY 8270P078-60
3
MAY 4011F238-19
3
MAY 74001707
4
SUPPORT,OVEN REAR
5
SPACER, MAIN TOP (RT)
5
SPACER, MAIN TOP (LT)
6
MAY 7101P313-60
7
MAY 4005F455-51
8
MAY 4005F427-51
9
MAY 7403P160-60
10
MAY 7701P153-60
11
MAY 4804F028-60
11
MAY 7101P280-60
11
MAY 8002P025-60
12
MAY 4804F036-60
12
MAY 74001800
13
MAY 3605F174-51
14
MAY 8004P024-60
15
MAY 74001449
16
MAY 7401P041-60
17
MAY 74001725
17
MAY 8009P024-60
18
SCREW, LEVER
19
MAY 3804F103-51
20
MAY 7106P056-60
21
SCREW (10-24X5/16-NI)
22
MAY 74001708
23
MAY 7112P112-60
24
MAY 7101P130-60
25
MAY 3801F305-80
26
MAY 7407P106-60
27
MAY 3801F312-45
28
MAY 3605F197-51
28
MAY 74001744
29
MAY 7403P317-60
29
MAY 74001743
30
MAY 74001999
31
MAY 7402P050-60
←
