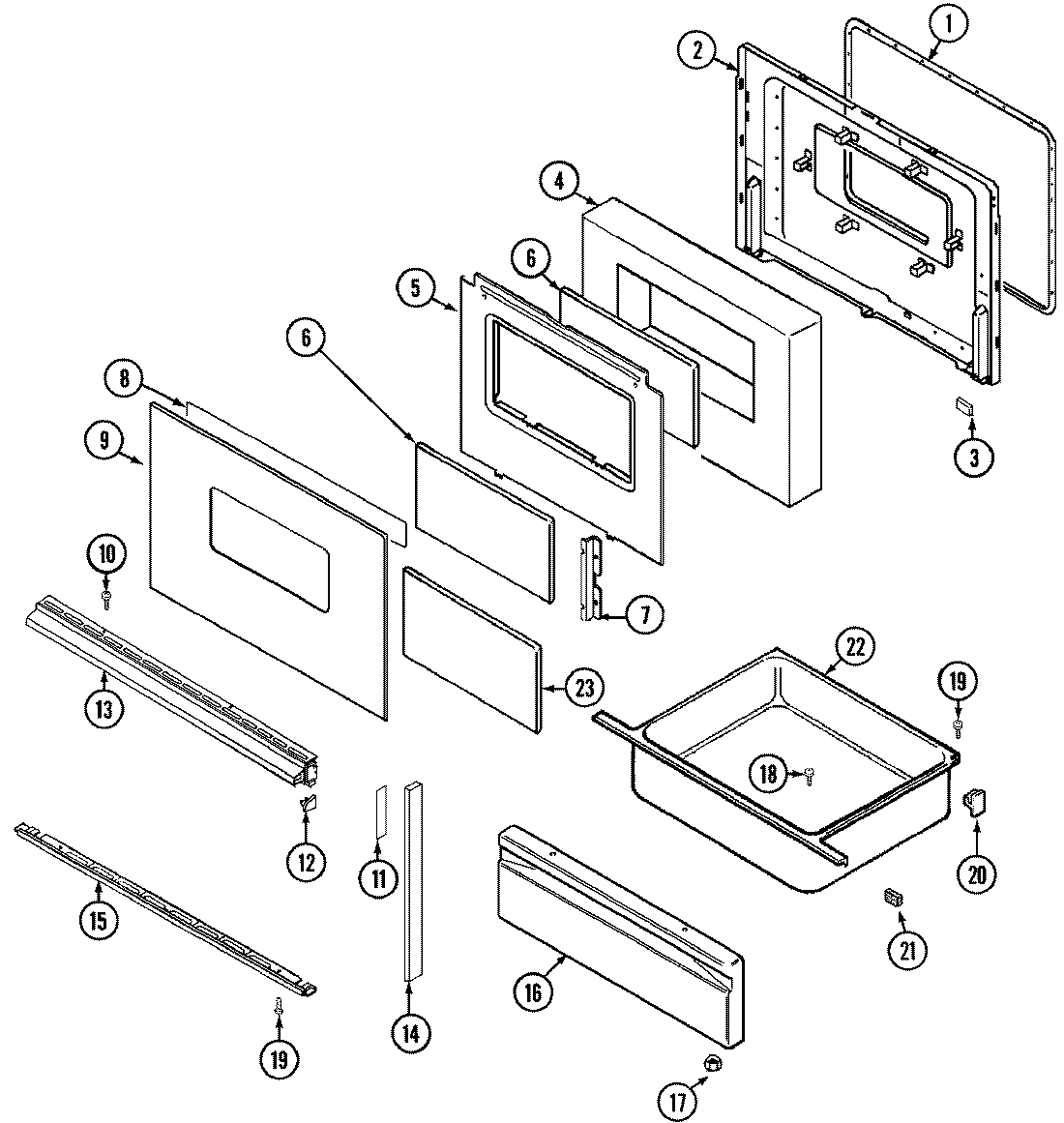

CC3878VVV 04 – DOOR/DRAWER (SER. PRE. 21)

Products

PositionProduct
1GASKT-DOOR OVEN
2MAY 2402W209-19
3MAY 8010P085-60
4MAY 74001842
5MAY 74001843
6MAY 74001841
7MAY 74001844
8TAPE, FOIL (3“ WIDE)
9MAY 7902P328-60
10WP98008544 Whirlpool Screw Assembly
11MAY 8270P048-60
12MAY 74002738
13MAY 7701P105-60
14MAY 74002342
15MAY 7744P103-60
16MAY 2416F038-62
17WPW10131078 Whirlpool Nut Assembly
18WP7101P072-60 Whirlpool Screw
19SCREW
20WP8004P026-60 Whirlpool Support
21MAY 7208P011-60
22MAY 3405F018-80
23MAY 74002002
