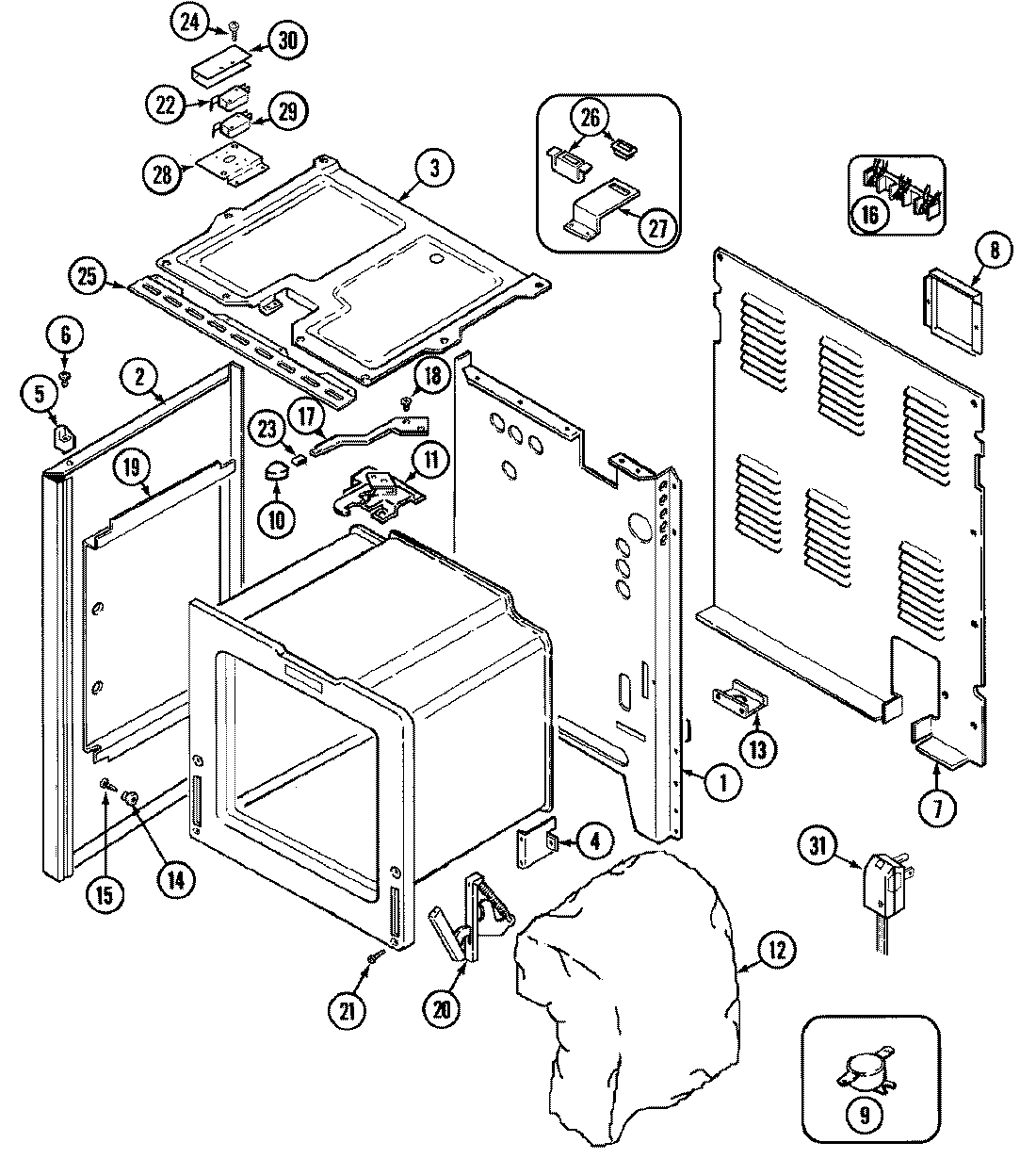

CC3878VYV 01 – BODY

Products

Position	Product
1	SCREW
1	MAY 74001772
2	MAY 74001884
2	MAY 7003P067-60
2	TAPE, FOIL (3“ WIDE)
3	MAY 74001695
3	MAY 74001753
4	SUPPORT,OVEN REAR
5	SPACER, MAIN TOP (RT)
5	SPACER, MAIN TOP (LT)
6	MAY 7101P313-60
7	MAY 4005F455-51
8	MAY 4005F427-51
9	MAY 7403P160-60
10	MAY 7701P153-60
11	MAY 7101P280-60
11	MAY 74003032
11	W10828565 Whirlpool Screw
11	MAY 4804F028-60
11	MAY 8002P025-60
12	MAY 74001800
12	MAY 4804F036-60
13	MAY 3605F174-51
14	MAY 8004P024-60
15	MAY 74001449
16	MAY 7401P038-60
17	MAY 74001725
17	MAY 74002973
18	SCREW, LEVER
19	MAY 74002599
20	MAY 7106P056-60
21	SCREW (10-24X5/16-NI)
22	MAY 74001708
23	MAY 7112P112-60
24	MAY 7101P130-60
25	MAY 3801F305-80
26	MAY 7407P106-60
26	MAY 74003053
27	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
27	MAY 3801F312-45
28	MAY 74001744
29	MAY 74001743
30	MAY 74001999
31	MAY 7402P050-60
