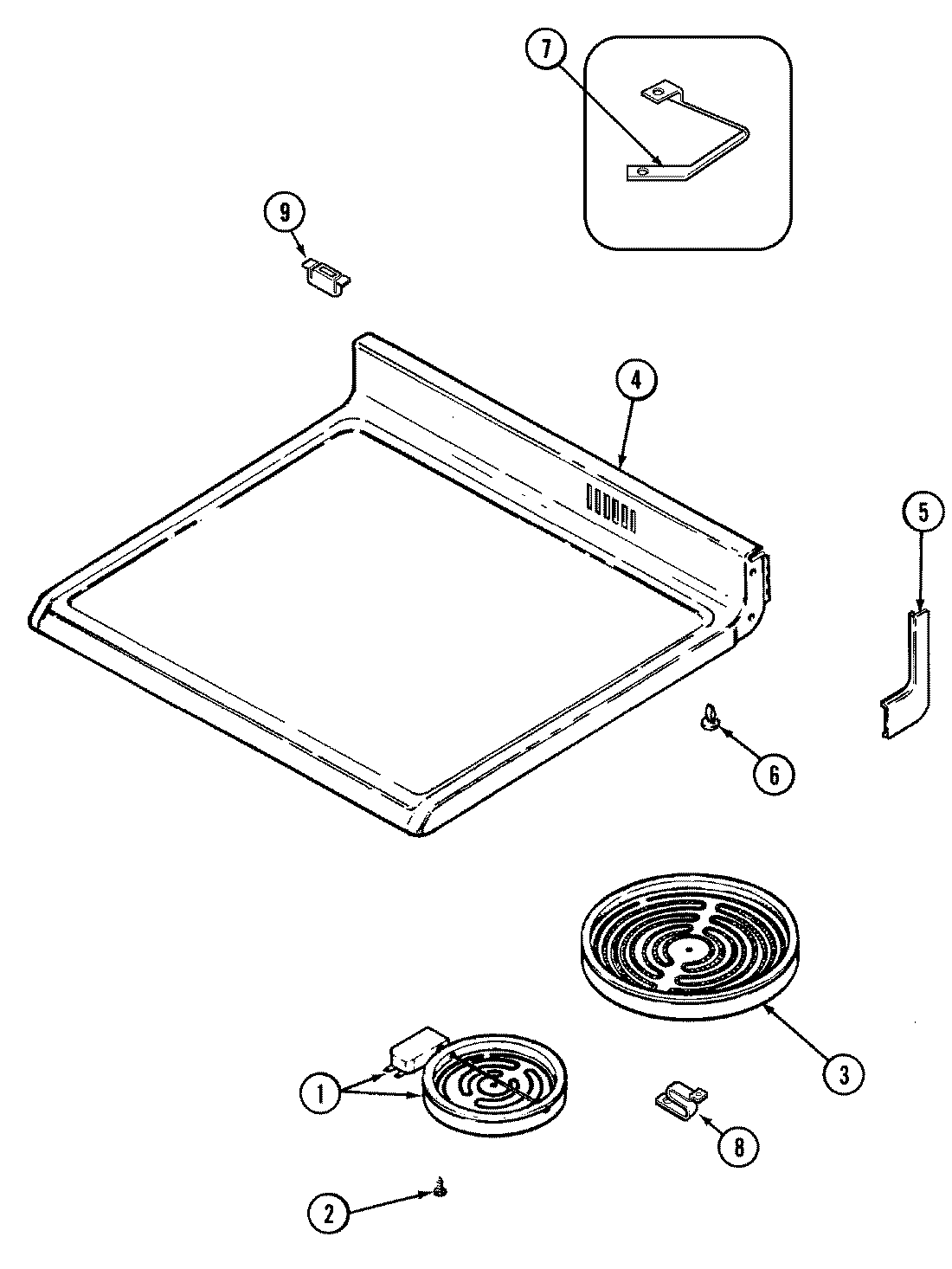

CC3878VYV 05 – TOP ASSEMBLY

Products

PositionProduct
1W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
2SCREW, SPECIAL
3MAY 74002652
3W10823707 Whirlpool Range Radiant Surface Element 8"
4MAY 74002346
4MAY 74003074
4MAY 8308P002-60
4WA906B Whirlpool Cooktop Glass Scraper
5MAY 7746P033-60
5MAY 7746P032-60
6MAY 74001428
7MAY 74001437
7NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
88004P093-60 Whirlpool Support C
9MAY 74003053
