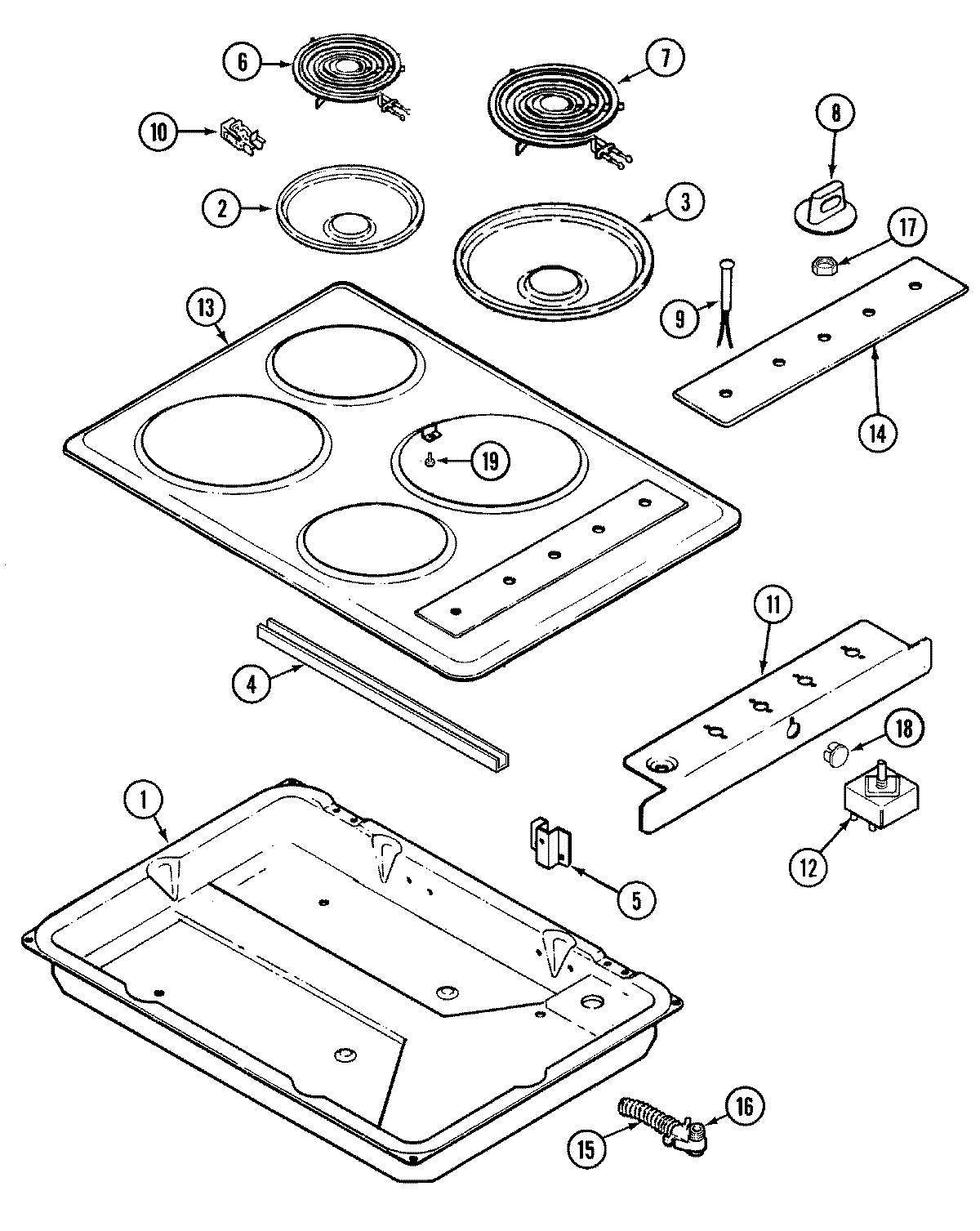

CCE1401B 01 – TOP ASSEMBLY

Products

Position	Product
NI	MAY 71002617
NI	MAY 16010241
NI	MAY 12001323
1	BOTTOM, BURNER BOX
2	WPW10196406 Whirlpool 6" Chrome Drip Bowl
3	DRIP BOWL 8" W/HOLE CHROME
4	BRACE, TOP
5	MAY 7111P002-60
5	MAY 7118P004-60
5	BRACKET, MAIN TOP SUPPORT
6	WP660532 Whirlpool Oven Surface Element
6	MAY 7406P054-60
7	MAY 7406P055-60
7	00484791 Bosch Oven Heating Element
8	MAY 74003151
9	MAY 74001480
9	MAY 8112P001-60
10	MAY 1430306K
11	MAY 3604F133-80
12	W10900107 Whirlpool Oven Surface Element Switch
13	MAY 2002W063-90
14	MAY 74003149
15	MAY 3414F035-44
15	MAY 74001216
15	MAY 3801F072-45
16	MAY 8018P001-60
16	MAY 7417P004-60
17	MAY 7103P021-60
18	MAY 8008P014-60
19	SCREW
