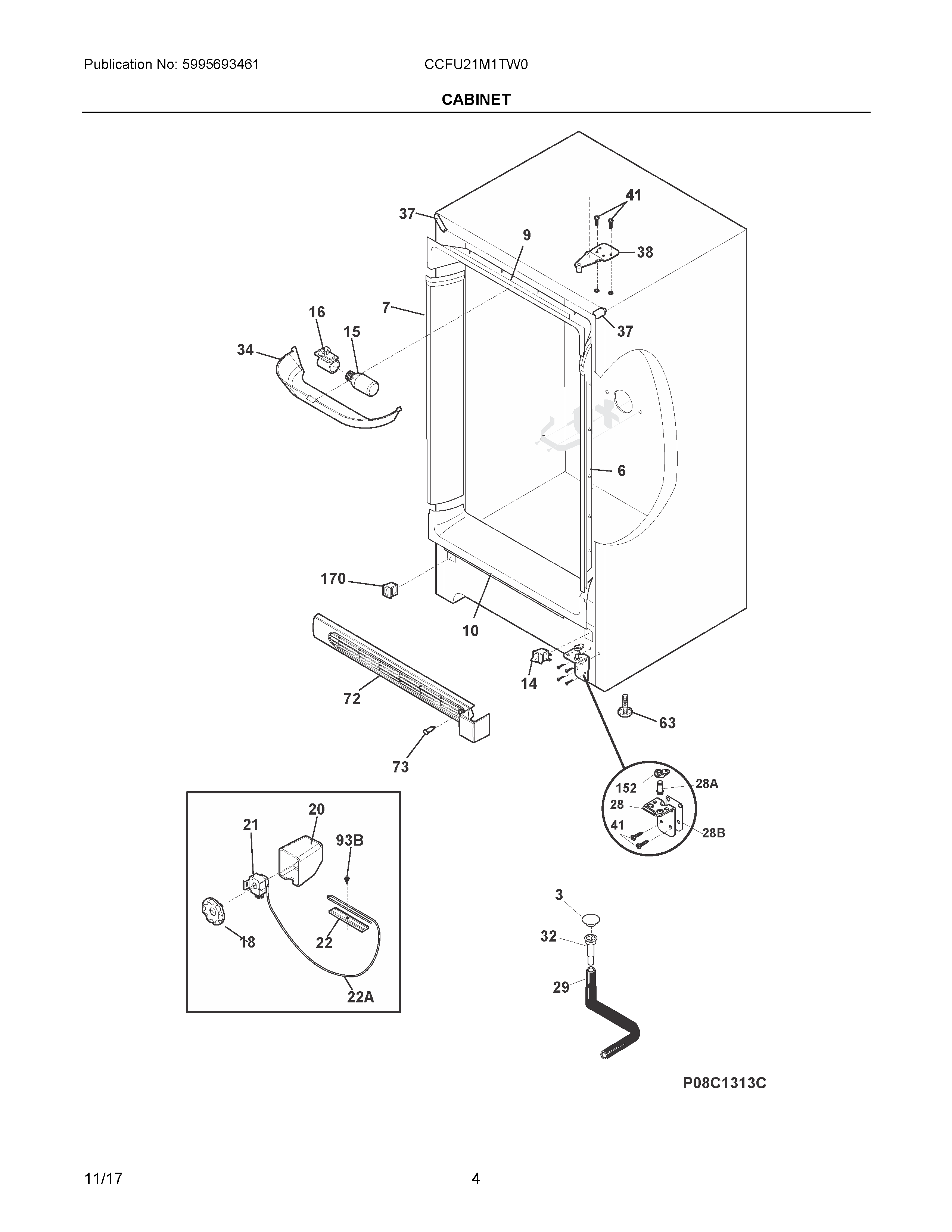

CCFU21M1TW0 03 – CABINET

Products

Position	Product
NIB	Bracket,RH leg levelor
NI	297001704 Frigidaire Refrigerator Insulation
NIA	Bracket,LH leg levelor
NI	241853202 Frigidaire Refrigerator Screw
NI	216337701 Frigidaire Refrigerator Screw
NI	ENERGY GUIDE
NI	INSULATION, DRAIN TUBE
NI	5304498525 Frigidaire Service Data Sheet
NI	OWNERS GUIDE
3	PLUG-DRAIN,EXTERIOR
6	297435604 Frigidaire Refrigerator Breaker
7	297435605 Frigidaire Refrigerator Breaker
9	297403901 Frigidaire Refrigerator Breaker
10	297403902 Frigidaire Refrigerator Breaker
14	216822900 Frigidaire Refrigerator Switch
15	5304517886 Frigidaire Refrigerator Light
16	297139501 Frigidaire Refrigerator Socket
18	216707200 Frigidaire Refrigerator Cold Control Knob
20	COVER-CONTROL HOUSING
21	5304514707 Frigidaire Refrigerator Control
22	CLAMP, CAP TUBE, COLD CONTROL
26	297415900 Frigidaire Door Closer Ramp
28A	297438300 Frigidaire Refrigerator Pin
28	297416301 Frigidaire Refrigerator Hinge
29	5304510363 Frigidaire Refrigerator Hose-Drain
32	5304511843 Frigidaire Refrigerator Sleeve
34	WCI 297184400
37	297273904 Frigidaire Refrigerator Corner Cabinet Trim
38	297283803 Frigidaire Freezer Upper Door Hinge
41	240578902 Frigidaire Screw Mounting Hinge
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
72	297387930 Frigidaire Refrigerator Kickplate Grille
73	5304495394 Frigidaire Refrigerator Light Signal
93B	216036601 Frigidaire Refrigerator Screw
93	216858001 Frigidaire Refrigerator Screw
152	5304511026 Frigidaire Refrigerator Freezer Hinge Bearing
170	297280400 Frigidaire Refrigerator Valve
