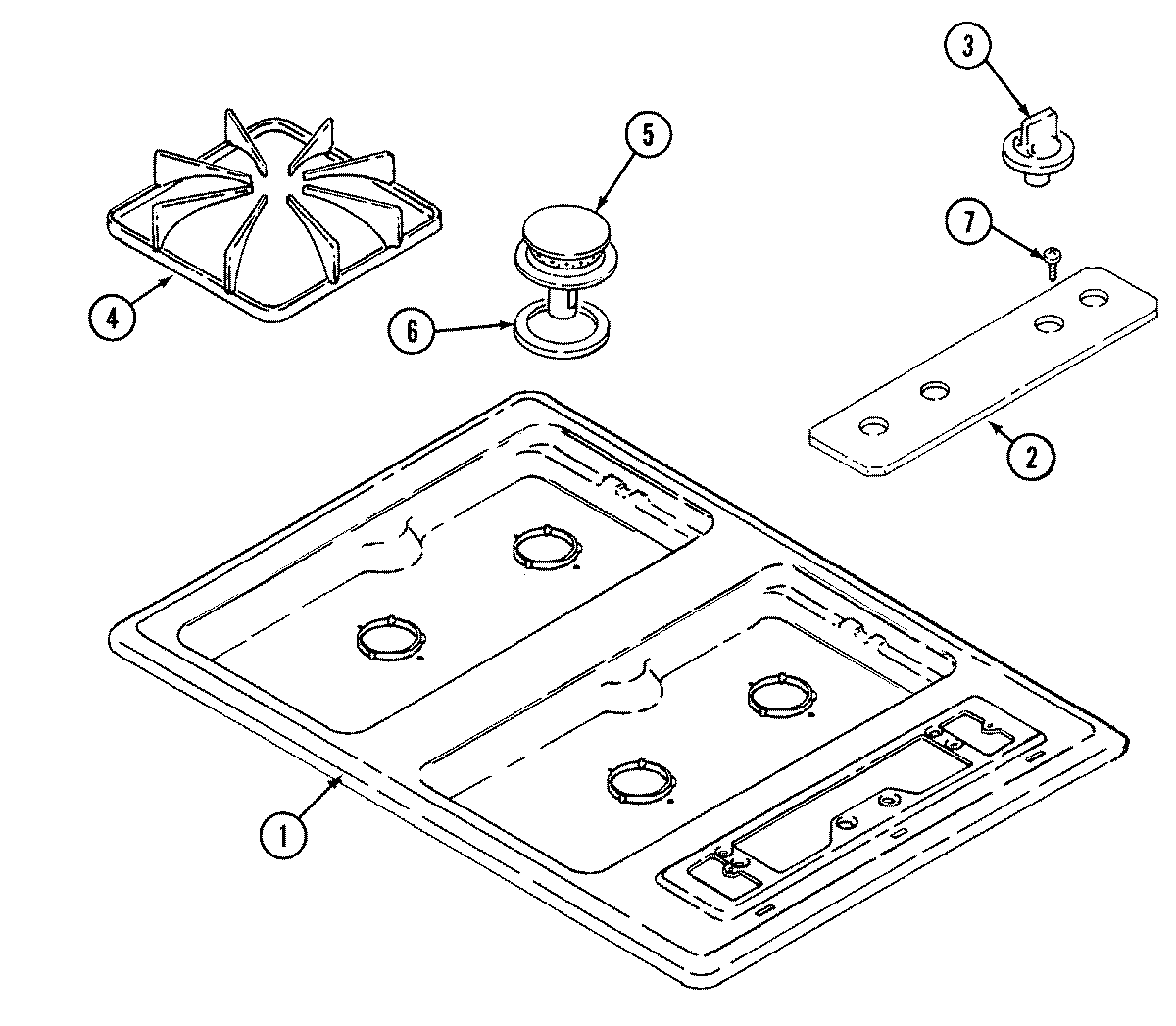

CCG2421B 02 – TOP ASSEMBLY

Written by

Products

Position	Product
NI	MAY 74001760
1	MAY 74001888
2	MAY 74001762
3	MAY 74001765
4	MAY 74001769
5	MAY 3412D018-09
5	WP3412D024-09 Whirlpool Oven Burner Head
5	74004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
5	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
6	MAY 7201P050-60
7	WP59002061 Whirlpool Microwave Screw
