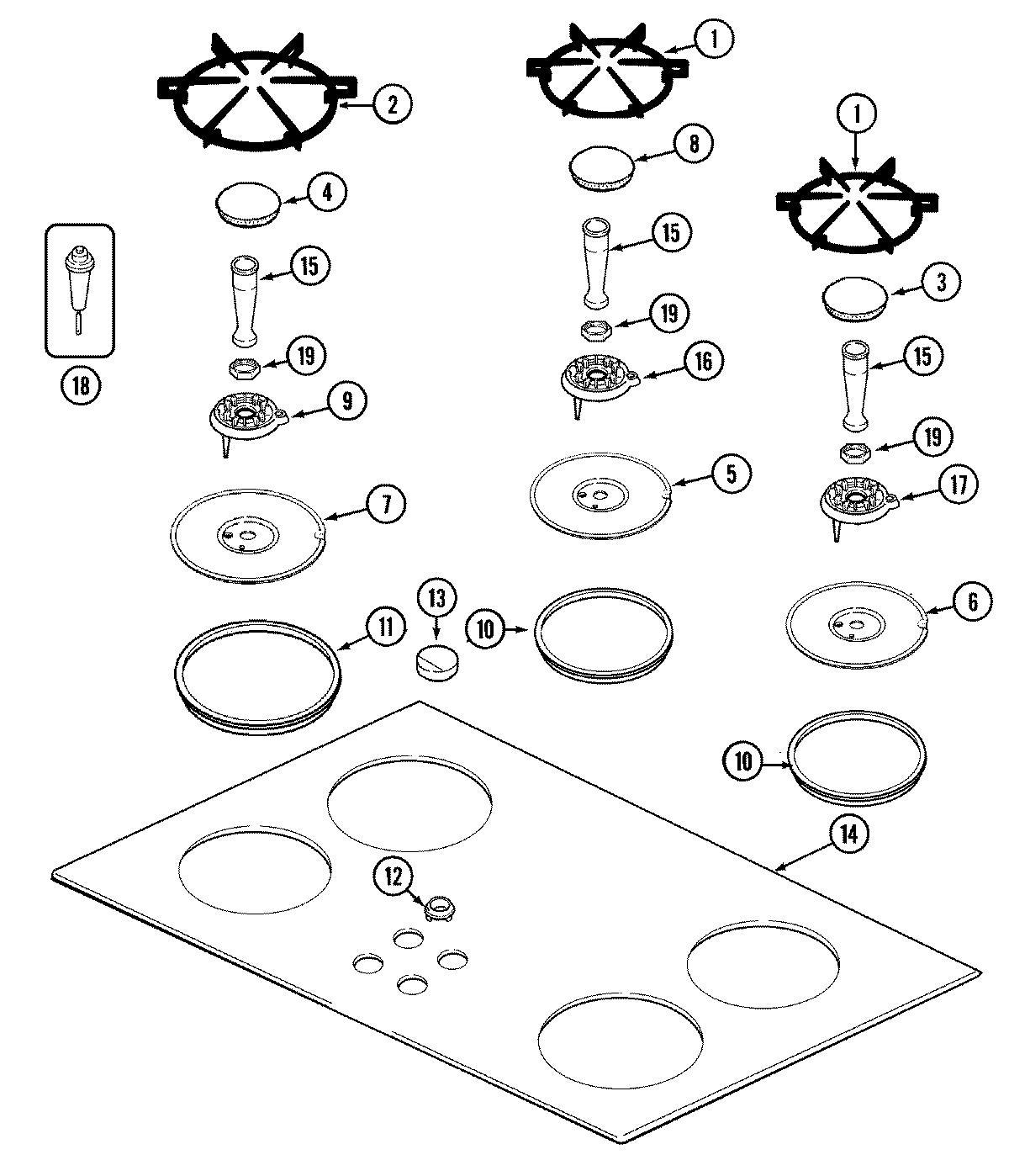

CCG2423Q 02 – TOP ASSEMBLY

Products

PositionProduct
NIMAY 71002725
NIMAY 71002741
1MAY 74005333
2MAY 74005334
3MAY 74005335
3MAY 74007198
4MAY 74007201
4MAY 74005336
5MAY 74005337
6MAY 74005338
7MAY 74005339
8MAY 74007189
8MAY 74005340
9MAY 71002743
9BURNER, BASE (LRG)
10WP71001669 Whirlpool Pan Seal
11WP71001670 Whirlpool Pan Seal
12MAY 71002371
13MAY 71003554
14MAY 74005341
15WP7538P003-60 Whirlpool Venturi
16WP7540P028-60 Whirlpool Burner Base
17MAY 71002744
17BURNER, BASE (SM)
18WP7432P109-60 Whirlpool Oven Igniter
19WP7103P178-60 Whirlpool Nut
