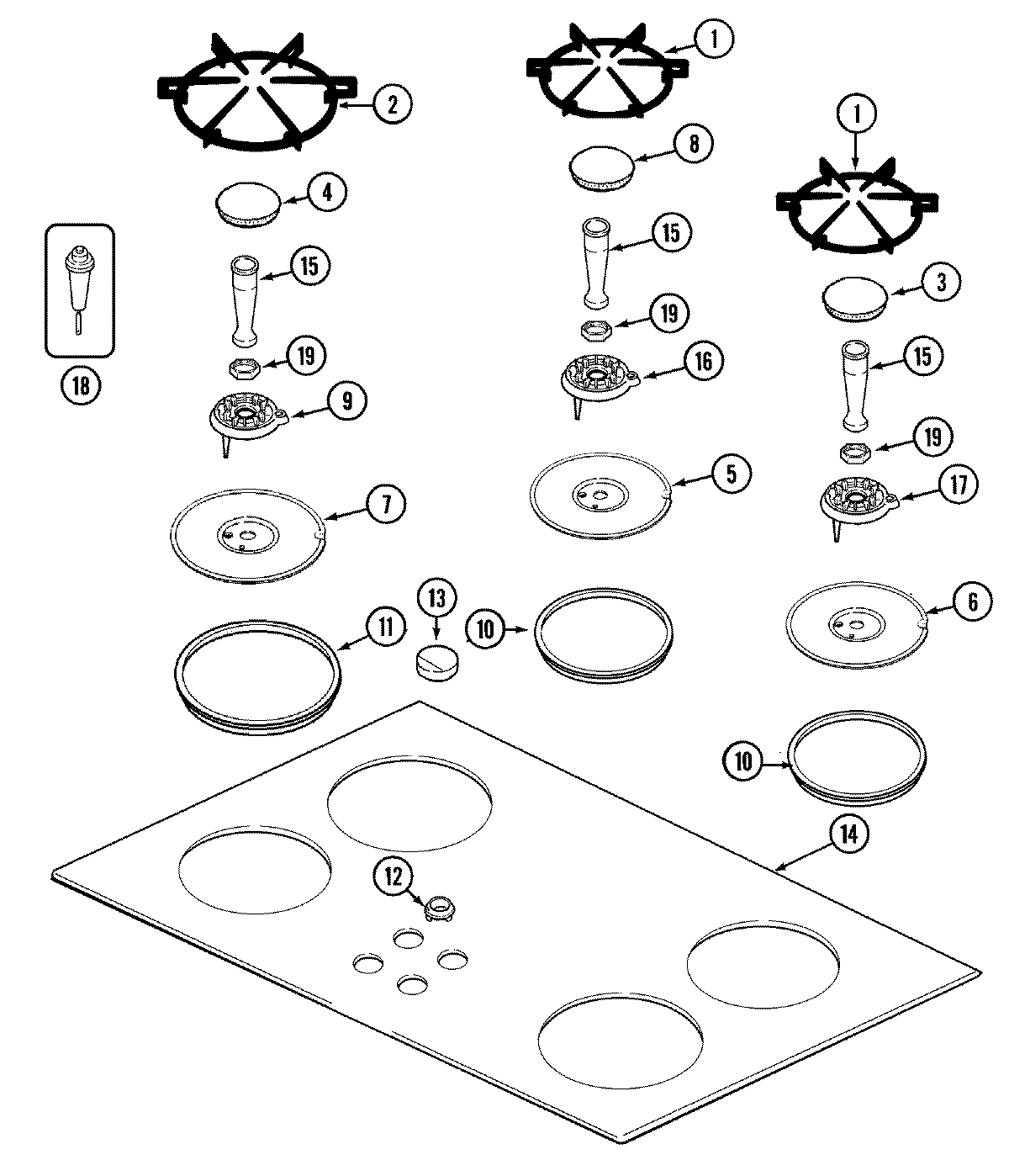

CCG2423S 02 – TOP ASSEMBLY

CCG2423S 02 – TOP ASSEMBLY

Written by

in

CCG2423S 02 – TOP ASSEMBLY

Products

Position	Product
NI	MAY 71002741
NI	MAY 71002725
1	MAY 74005342
2	MAY 74005343
3	MAY 74005344
3	WP74007196 Whirlpool Burner Cap
4	CAP, BURNER (LRG-BLK)
4	MAY 74005345
5	MAY 74005346
6	MAY 74005347
7	MAY 74005348
8	MAY 74005349
8	CAP, BURNER (SMR-MT BLK)
9	BURNER, BASE (LRG)
9	MAY 71002743
10	WP71001669 Whirlpool Pan Seal
11	WP71001670 Whirlpool Pan Seal
12	WP8008P071-60 Whirlpool Grommet
13	WP71002372 Whirlpool Control Knob
14	MAY 74005350
15	WP7538P003-60 Whirlpool Venturi
16	WP7540P028-60 Whirlpool Burner Base
17	BURNER, BASE (SM)
17	MAY 71002744
18	WP7432P109-60 Whirlpool Oven Igniter
19	WP7103P178-60 Whirlpool Nut
