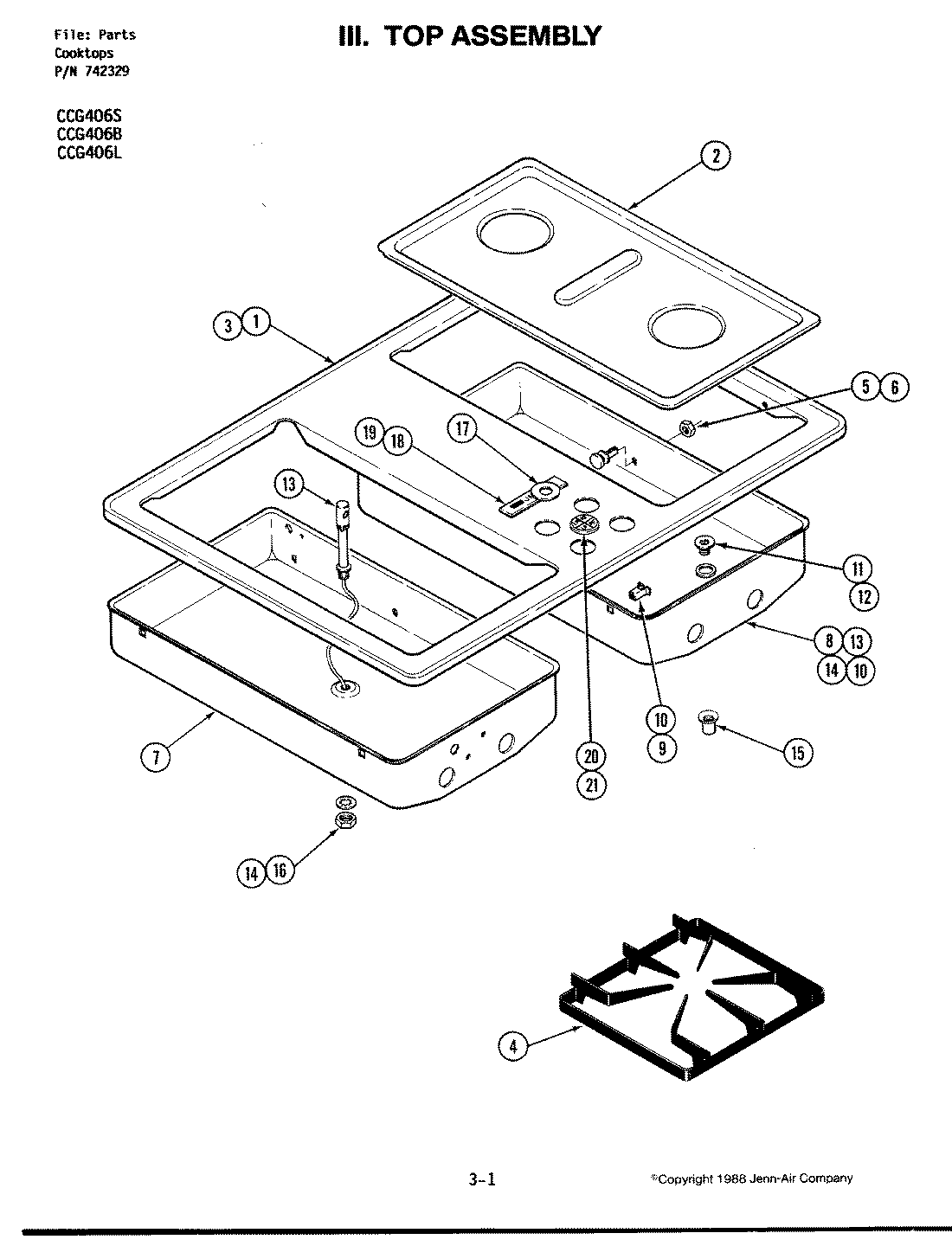

CCG406B 04 – TOP ASSEMBLY

Products

Position	Product
1	MAY 704989
1	MAY 704324
2	3401X055-09 Whirlpool Pan
3	WP90767 Whirlpool Screw
4	MAY Y705483
4	MAY Y704543
5	MAY Y704553
6	MAY 704536
7	MAY Y704924
7	MAY 704528
8	MAY 704529
8	MAY 704925
10	MAY Y700503
11	MAY 702748
12	MAY 702747
13	MAY 704535
14	MAY 704568
15	MAY 704546
16	WPY703856 Whirlpool Nut
17	MAY Y704276
18	MAY 704350
19	7103P166-60 Whirlpool Nut
20	MAY 704351
21	MAY 704353
