CCG406L 02 – BURNER/MANIFOLD ASSEMBLY
Written by
in

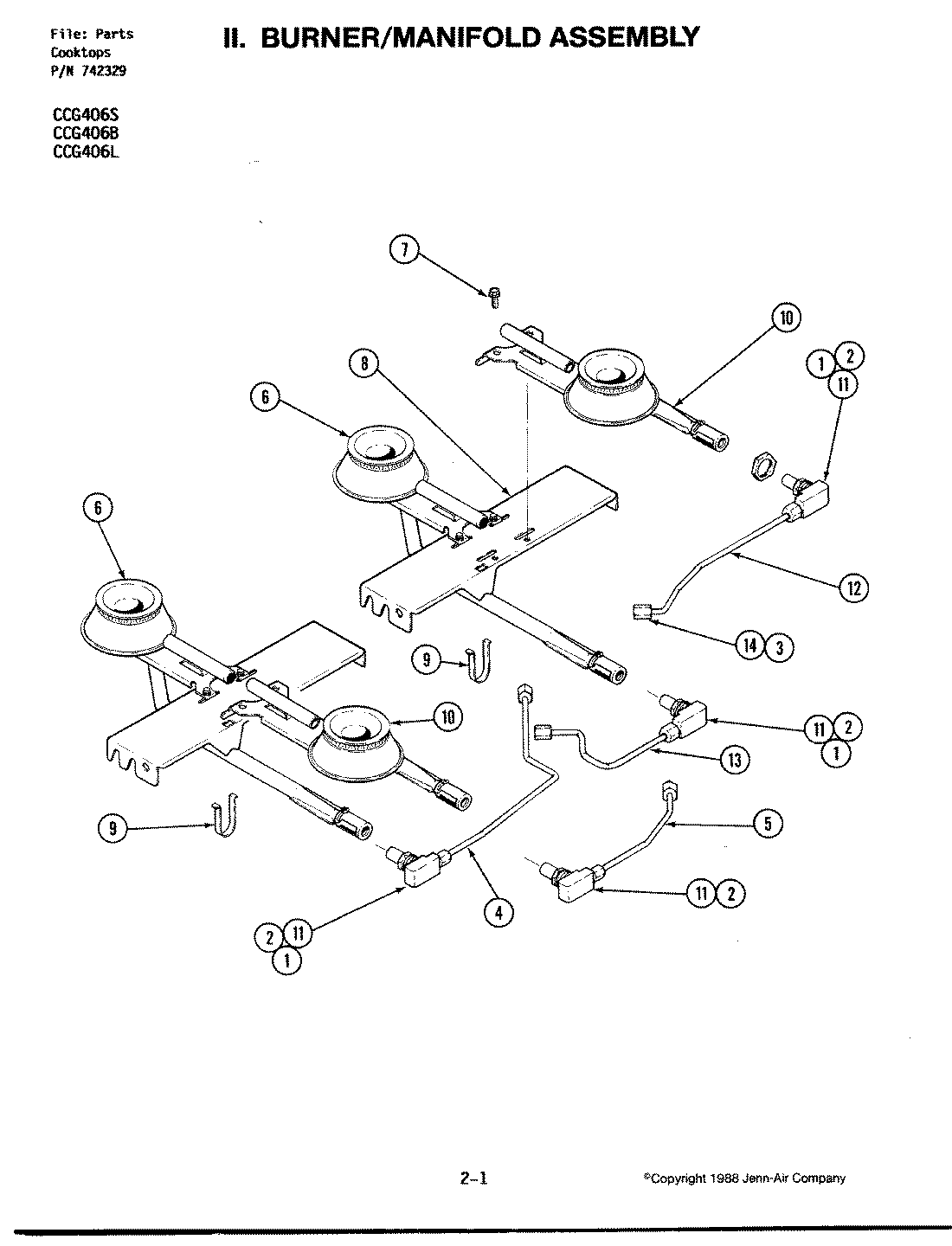

CCG406L 02 – BURNER/MANIFOLD ASSEMBLY
Products
Position
Product
1
MAY Y704947
1
MAY 704328
2
MAY Y704977
2
MAY Y704588
3
MAY 704590
4
MAY Y705166
4
MAY 704751
4
MAY 704509
5
MAY 705167
6
MAY Y704518
6
MAY Y705402
7
WP90767 Whirlpool Screw
8
WP3801F403-80 Whirlpool Bracket
9
MAY 704549
10
MAY Y704517
10
MAY Y705401
12
MAY 704700
12
MAY Y705165
13
MAY Y705164
←
