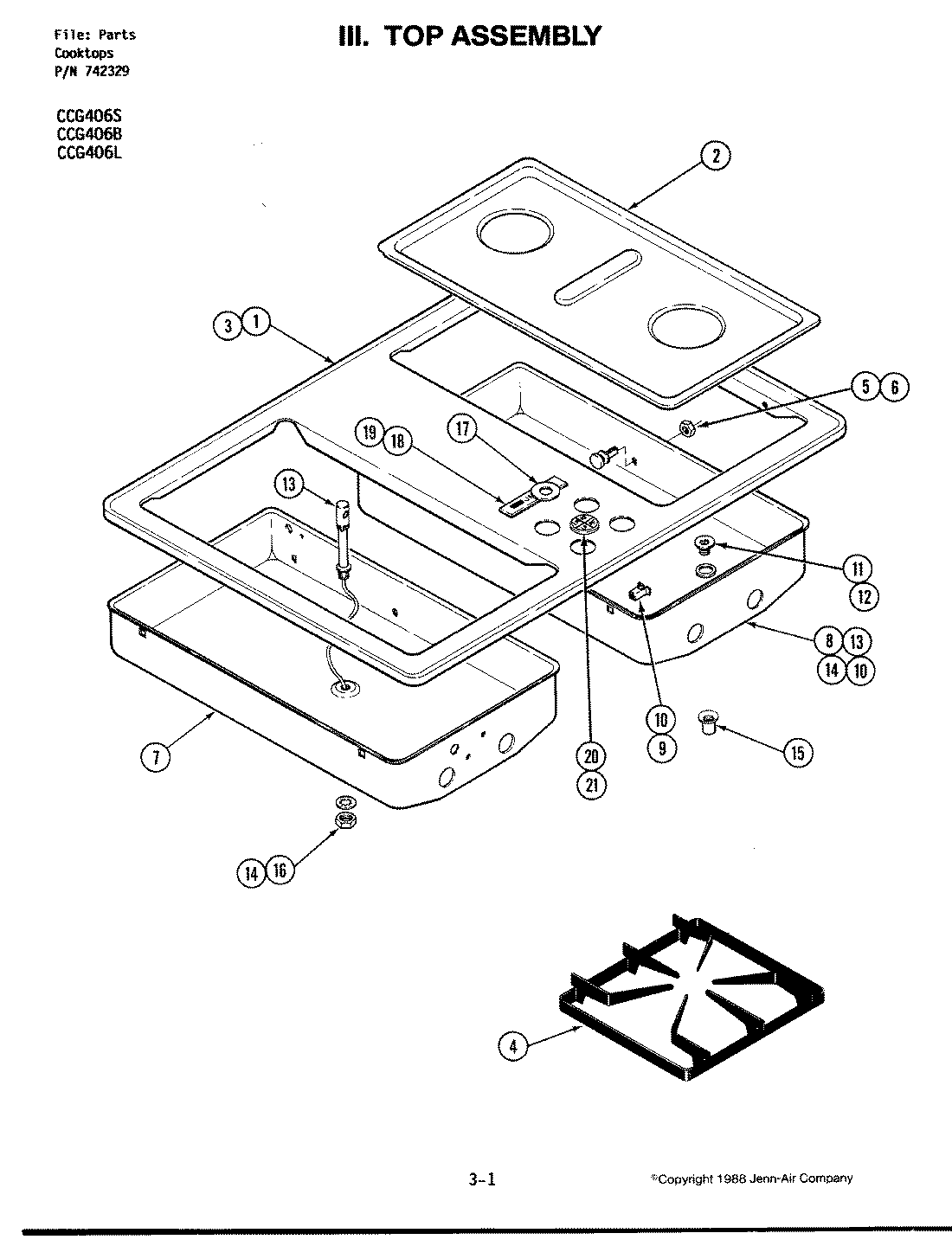

CCG406S 03 – TOP ASSEMBLY (CCG406S)

CCG406S 03 – TOP ASSEMBLY (CCG406S)

Written by

in

CCG406S 03 – TOP ASSEMBLY (CCG406S)

Products

PositionProduct
1MAY 704991
1MAY 704326
23401X055-09 Whirlpool Pan
3WP90767 Whirlpool Screw
4MAY Y705483
4MAY Y704543
5MAY Y704553
6MAY 704536
7MAY Y704924
7MAY 704528
8MAY 704529
8MAY 704925
10MAY Y700503
11MAY 702748
12MAY 702747
13MAY 704535
14MAY 704568
15MAY 704546
16WPY703856 Whirlpool Nut
17MAY Y704276
18MAY 704350
197103P166-60 Whirlpool Nut
20MAY 704351
21MAY 704353
