CCGP2420PU 03 – TOP ASSEMBLY – Aparts

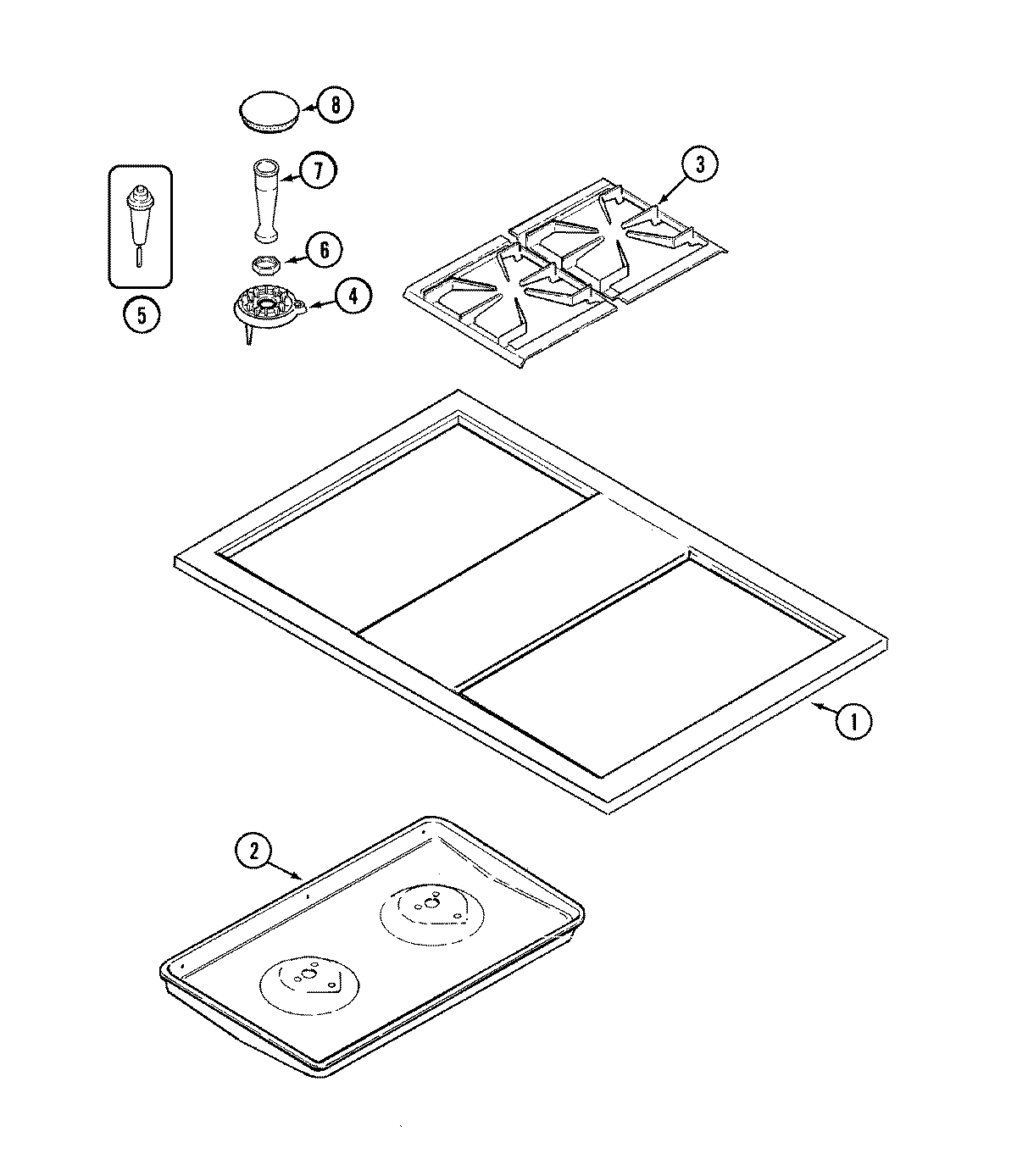

CCGP2420PU 03 – TOP ASSEMBLY

Products

Position	Product
1	WP90767 Whirlpool Screw
1	MAY 71003124
2	MAY 71003156
2	MAY 71003155
3	MAY 71003158
4	MAY 71002743
4	WP7540P028-60 Whirlpool Burner Base
4	MAY 71002744
5	WP7432P109-60 Whirlpool Oven Igniter
6	WP7103P178-60 Whirlpool Nut
7	WP7538P003-60 Whirlpool Venturi
8	MAY 71002738
8	MAY 71002740
8	MAY 71002787
