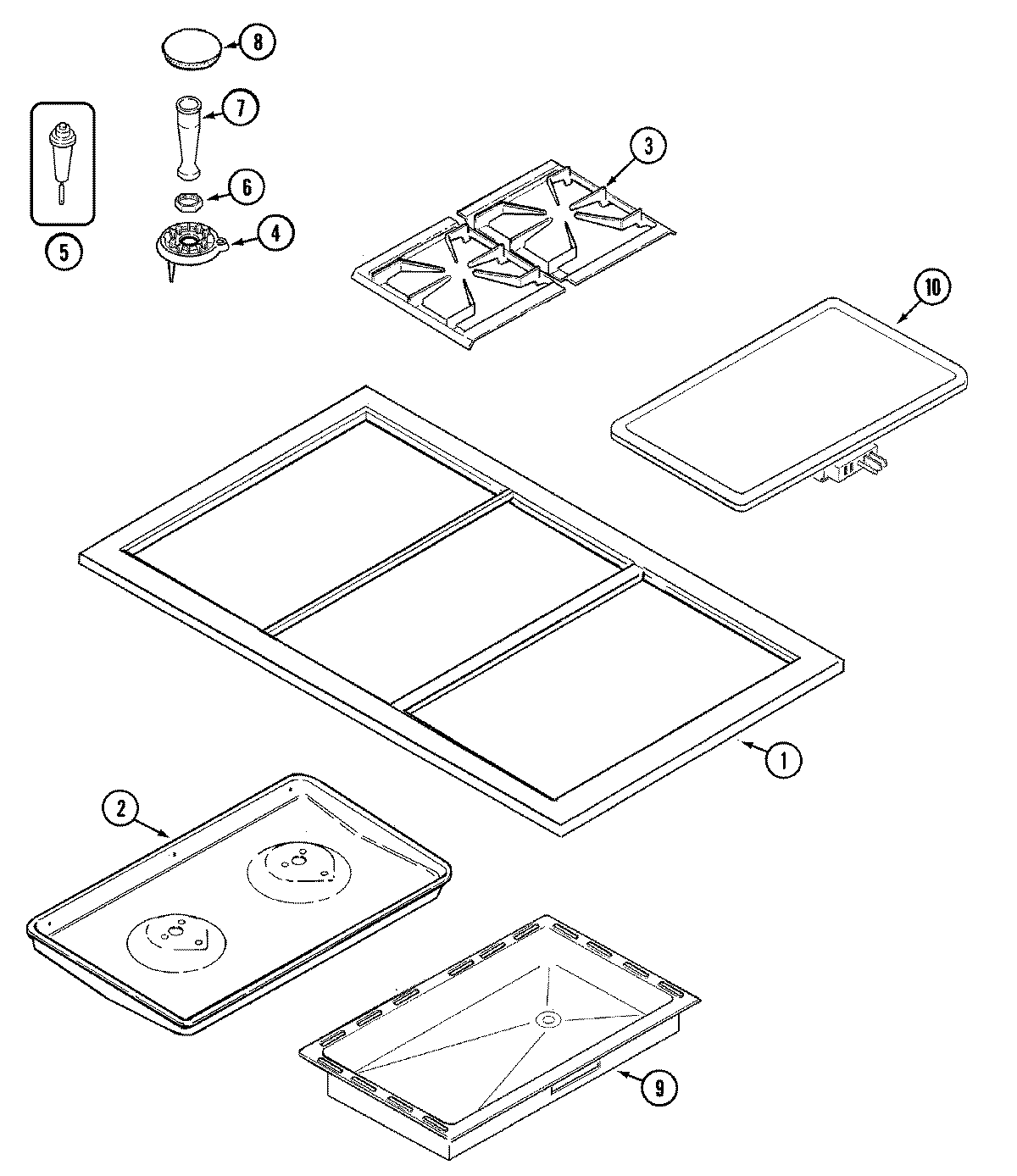

CCGP2720P 03 – TOP ASSEMBLY
Written by
in
CCGP2720P 03 – TOP ASSEMBLY
Products
Position
Product
1
WP90767 Whirlpool Screw
1
MAY 71003125
2
MAY 71003156
2
MAY 71003155
3
MAY 71003158
4
BURNER, BASE (LRG)
4
MAY 71002744
4
MAY 71002743
4
WP7540P028-60 Whirlpool Burner Base
4
BURNER, BASE (SM)
5
WP7432P109-60 Whirlpool Oven Igniter
6
WP7103P178-60 Whirlpool Nut
7
WP7538P003-60 Whirlpool Venturi
8
MAY 71002740
8
MAY 71002738
8
MAY 74007187
8
MAY 74007199
8
MAY 74007193
8
MAY 71002787
9
MAY 71003157
10
MAY 71003215
10
MAY 71003159
10
MAY 71003151
←
