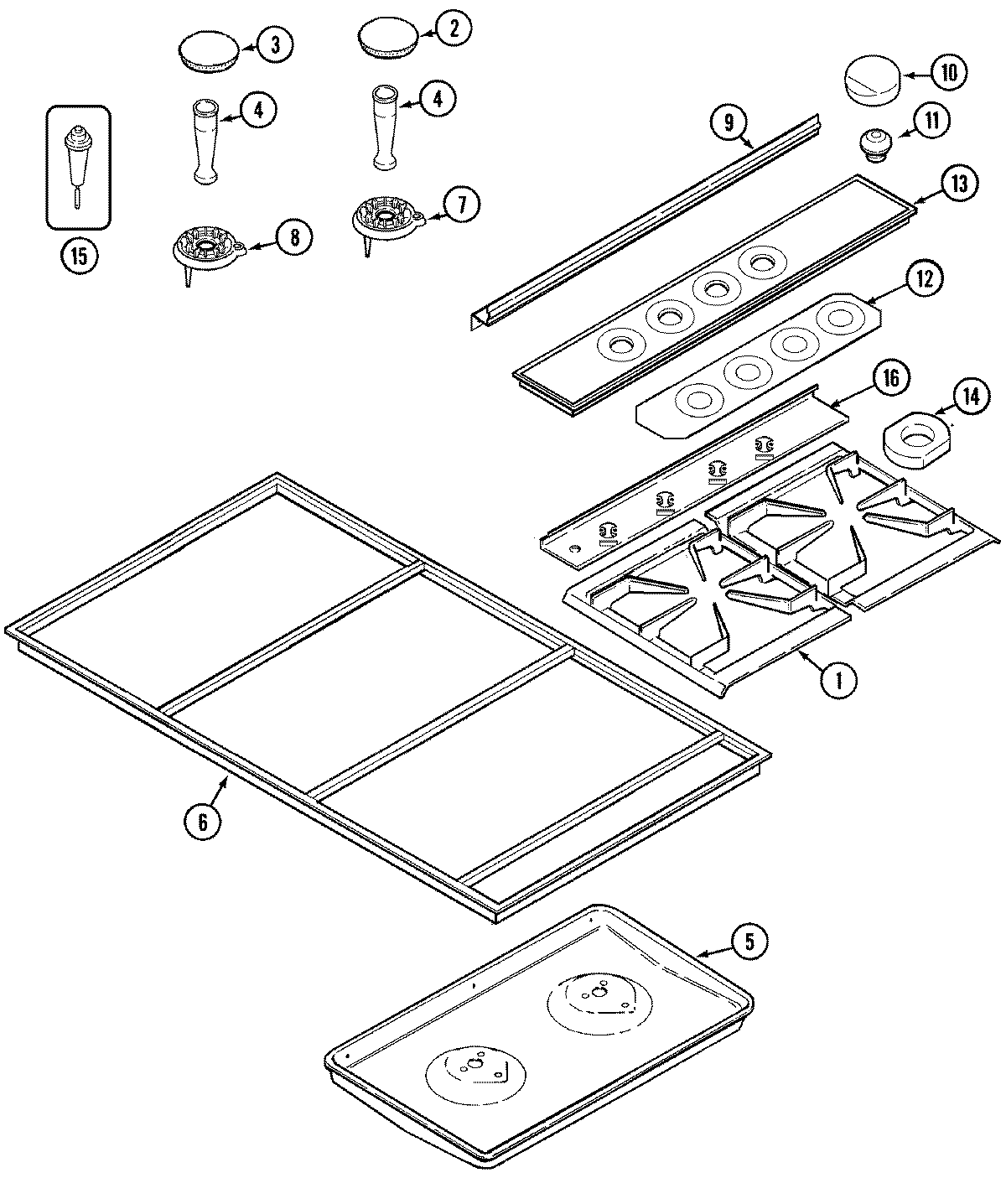

CCGX2420B 02 – TOP ASSEMBLY

CCGX2420B 02 – TOP ASSEMBLY

Written by

in

CCGX2420B 02 – TOP ASSEMBLY

Products

Position	Product
NI	MAY 71002782
NI	MAY Y04100536
NI	MAY Y04100378
NI	MAY 71002942
NI	MAY 71002941
NI	MAY 71002943
NI	MAY 71001159
NI	MAY 71002936
NI	MAY 71002937
NI	MAY Y04100535
NI	MAY 71002938
NI	MAY 16000326
1	MAY 71001004
2	MAY 71002787
3	MAY 71002740
4	WP7538P003-60 Whirlpool Venturi
5	MAY 71002786
6	MAY 71002940
7	WP7540P028-60 Whirlpool Burner Base
8	MAY 74006032
8	MAY 71002743
9	MAY 71002566
10	WP71002372 Whirlpool Control Knob
11	WP8008P071-60 Whirlpool Grommet
12	MAY 71002580
13	MAY 71002930
14	MAY Y706061
15	WP7432P109-60 Whirlpool Oven Igniter
16	MAY 71002559
16	MAY 71002568
16	MAY 71003219
