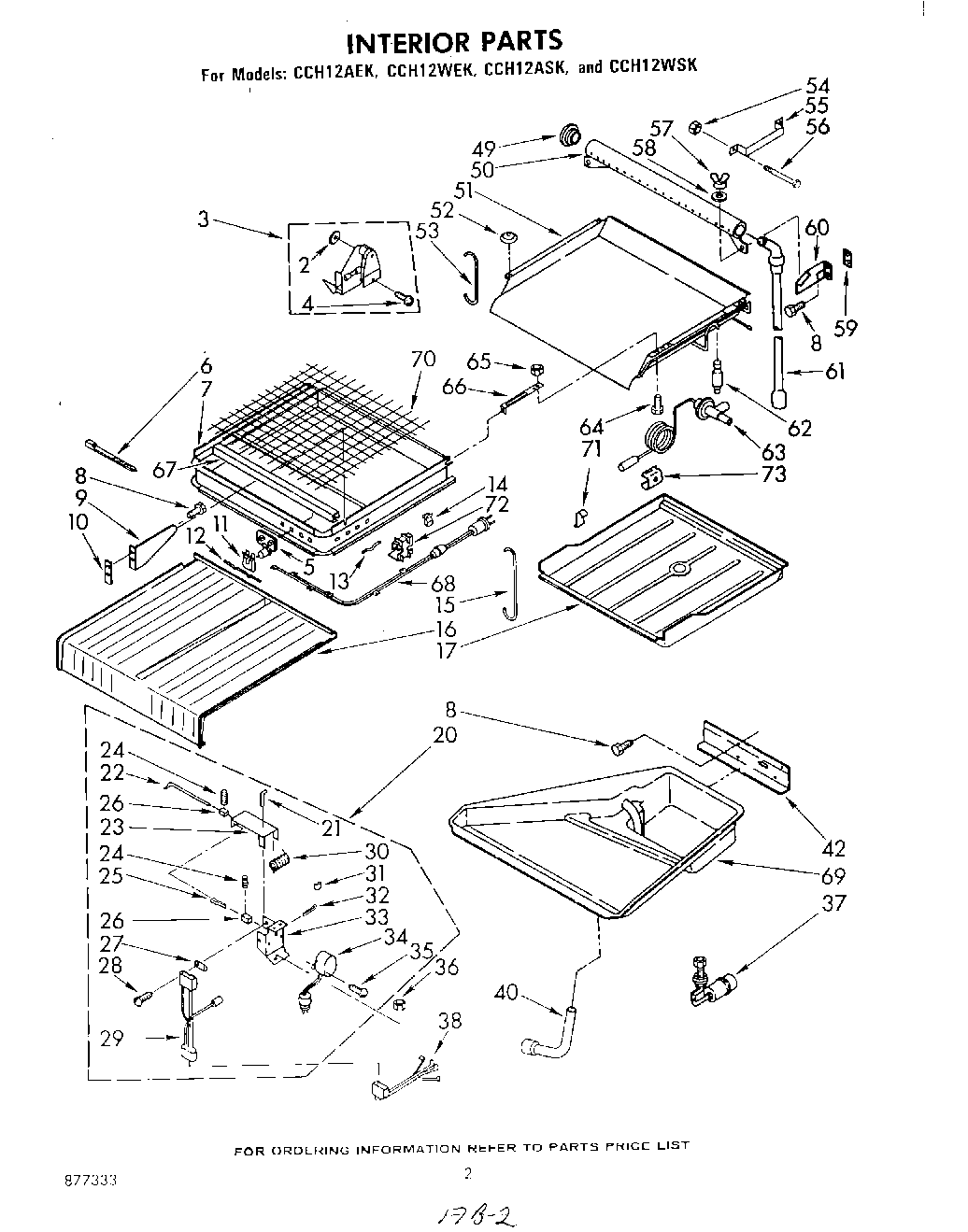

CCH12AEK 02 – INTERIOR

Products

Position	Product
2	Nut, Spring
3	Bracket Assembly (Cutter Grid) (3)
4	WP90767 Whirlpool Screw
5	Insulator, Grid Wires (38)
6	WPW10339879 Whirlpool Wire Tie
7	Frame, Grid Assembly (Non-Service)
8	Screw, 10-32 x 1/2 (4)
9	Gusset (L.S.) (3)
10	Gasket, Gusset (L.S.)
11	Clip, Grid Wires (38)
12	Pin, Grid Wire (17)
13	Pin, Grid Wires (4)
14	Clip, Wiring Harness
15	Hanger, Grid (Lower) (2)
16	Deflector (Upper)
17	Dispenser (Lower)
20	Control, Ice Thickness
21	Screw, Adjusting
22	Shaft, Ice Thickness Control
23	Bracket, Shaft
24	Setscrew (4)
25	Shaft, Flexible
26	Coupling, Shaft (2)
27	Spacer
28	Screw
29	Harness Micro Switch
30	Spring, Hold Down
31	Clamp, Wire
32	Pin, Cotter
33	Bracket, Motor
34	Motor, Ice Thickness Control
35	Screw
37	Valve, Assembly Float
38	Plug, Control Motor
40	Hose, Drain
42	Support, Water Pan
49	Seal, Dispenser
50	Dispenser, Water
51	Evaporator (Service) (3)
52	WPL 562336
53	Hanger, Grid (Upper)
54	WP488826 Whirlpool Nut
55	Strap, Tube
56	Screw, 10-32 x 1-5/8 (2)
57	WPL 681584
58	WPL 680396
59	Gasket, Gusset (R.S.)
60	Gusset (R.S.) (3)
61	Hose,
62	WPL 562036
63	WPL 757005
64	681390 Whirlpool Refrigerator Screw
65	WP486255 Whirlpool Air Conditioner Nut
66	WPL 751161
67	Deflector, Ice Slab
68	Harness, Grid Connecting ((1-2/4“ Grid))
68	Harness, Grid Connecting ((3/4“ Grid))
69	WPL 756884
70	Wire Kit, Grid Cutter ((1-2/4“ Grid))
70	Wire Kit, Grid Cutter ((3/4“ Grid))
71	WPL 587646
72	WPL 587653
73	WPL 593874
