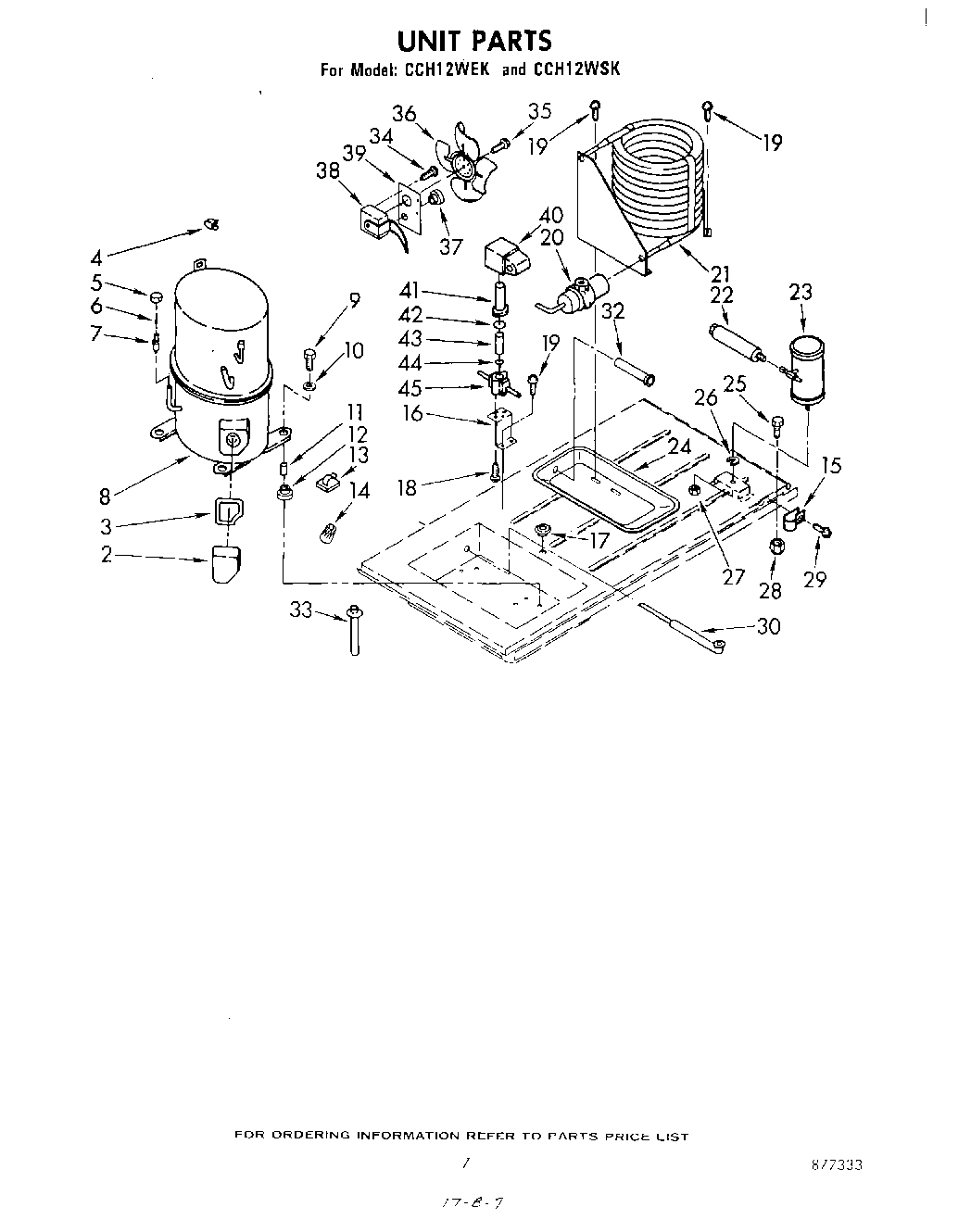

CCH12AEK 06 – CCH12WEK, CCH12WSK

Products

Position	Product
2	Cover, Terminal
3	Gasket, Cover
4	Clip
5	Cap, Valve
6	Core, Valve
7	Valve
8	Compressor
9	Screw (4)
10	Washer, Flat (4)
11	Sleeve, Grommet (4)
12	Grommet (4)
13	Retainer, Wire
14	Connector, Closed End
15	Clamp
16	Bracket, Valve
17	Button, Plug
18	WP486579 Whirlpool Air Conditioner Screw
19	Screw
20	Valve, Water
21	Condenser, Water
22	Drier
23	Receiver
24	Pan, Condenser
25	Screw, 10-32 x 1/2 (3)
26	Washer, Lock
27	Nut (1)
28	Nut, Acorn (3)
29	Screw
30	Hose, Drain
32	Hose, Well Drain
33	Thermistor, Weld Assembly
34	Screw
35	WP487887 Whirlpool Refrigerator Screw
36	Blade, Fan
37	Bushing, Snap (4)
38	Motor, Fan
39	Bracket, Motor
40	Coil, Solenoid
41	Bonnet Assembly
42	Seal, Bonnet
43	Plunger
44	Diaphragm
45	Body Assembly
