CCH12AEK 07 – PUMP

Written by

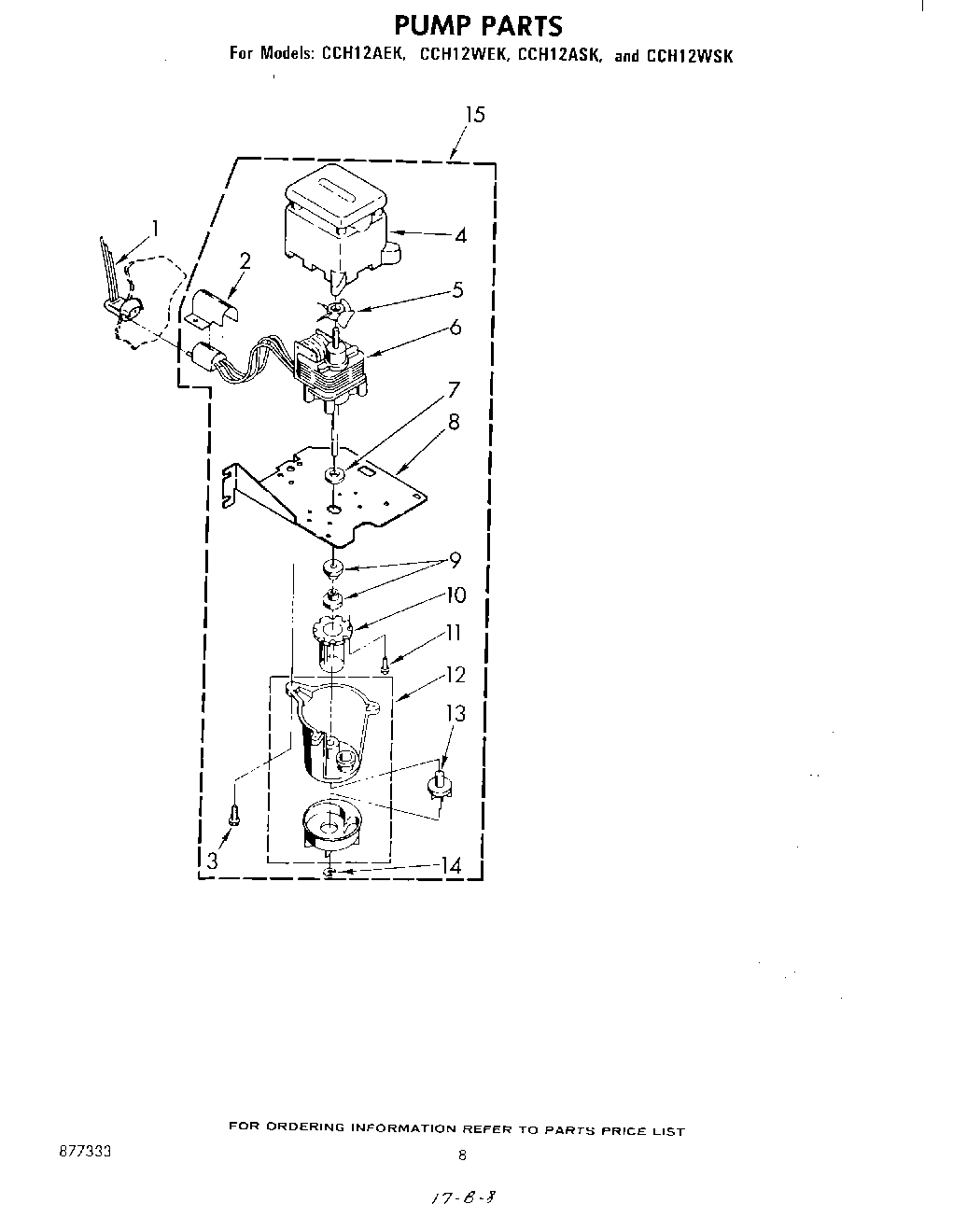

CCH12AEK 07 – PUMP

Products

Position	Product
1	Plug, Pump
2	Sheild, Wiring
3	Screw, 8-18 x 3/4
4	Housing, Motor
5	Blade, Fan
6	Motor, Pump
7	Washer
8	Bracket, Pump
9	Grommet (2)
10	Sleeve
11	681390 Whirlpool Refrigerator Screw
12	Pump, Assembly
13	Impeller
14	Ring, Retaining
15	Pump Assembly, Complete (Alternate)
