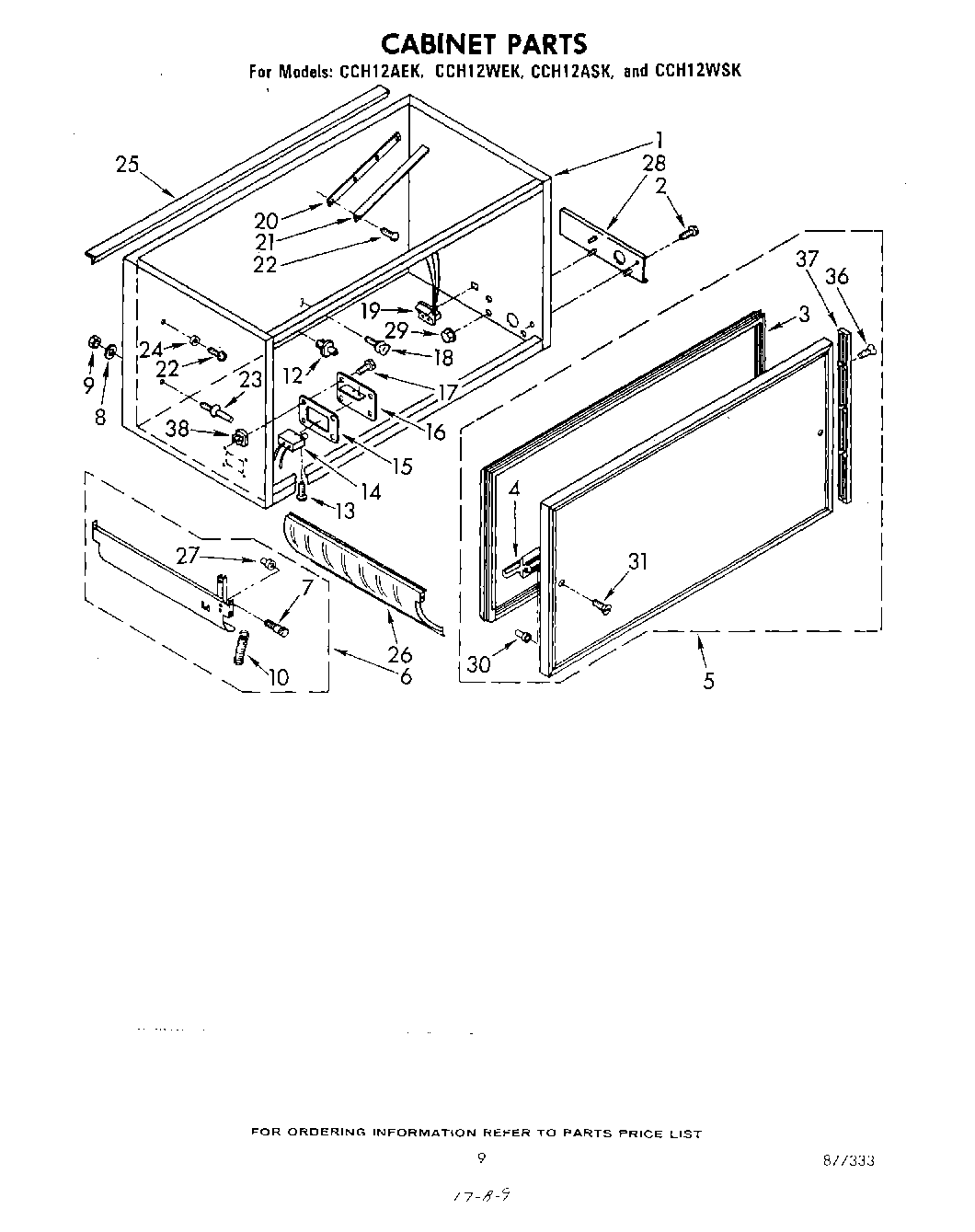

| 1 | Cabinet (Not A Serviceable Part) |
| 2 | Screw, 10-32 x 1/2 |
| 3 | Gasket, Panel |
| 4 | Gasket, Drip |
| 5 | Panel, Front (Note: Panel Assembly Includes Items 3, 4, 30, 31, 36 & 37) (CCH12ASK CCH12WSK) |
| 5 | Panel, Front (Note: Panel Assembly Includes Items 3, 4, 30, 31, 36 & 37) (CCH12AEK CCH12WEK) |
| 6 | Deflector Assembly |
| 7 | Screw, Pivot |
| 8 | Washer, Fibre |
| 9 | Nut, 1/4-20 |
| 10 | Spring |
| 12 | Stud, Deflector |
| 13 | Screw, 4-40 x 5/8 (2) |
| 14 | Switch, Baffle |
| 15 | Gasket, Plate |
| 16 | Plate, Switch |
| 17 | SCREW |
| 18 | Thumbscrew 10-32 x 5/8 |
| 19 | Plug, Pump |
| 20 | Gasket, Support |
| 21 | Support (Not Serviceable) |
| 22 | W10759522 Whirlpool Screw |
| 23 | Stud (2) |
| 24 | Support, Grid (3) |
| 25 | Gasket, Angle |
| 26 | Deflector, Center |
| 27 | Rivnut |
| 28 | Support |
| 29 | Nut, Acorn (3) |
| 30 | Sleeve, Panel (2) |
| 31 | Screw |
| 36 | Screw (8) |
| 37 | Cap, End (2) (CCH12ASK CCH12WSK) |
| 37 | Cap, End (2) (CCH12AEK CCH12WEK) |
| 38 | Grommet (4) |
