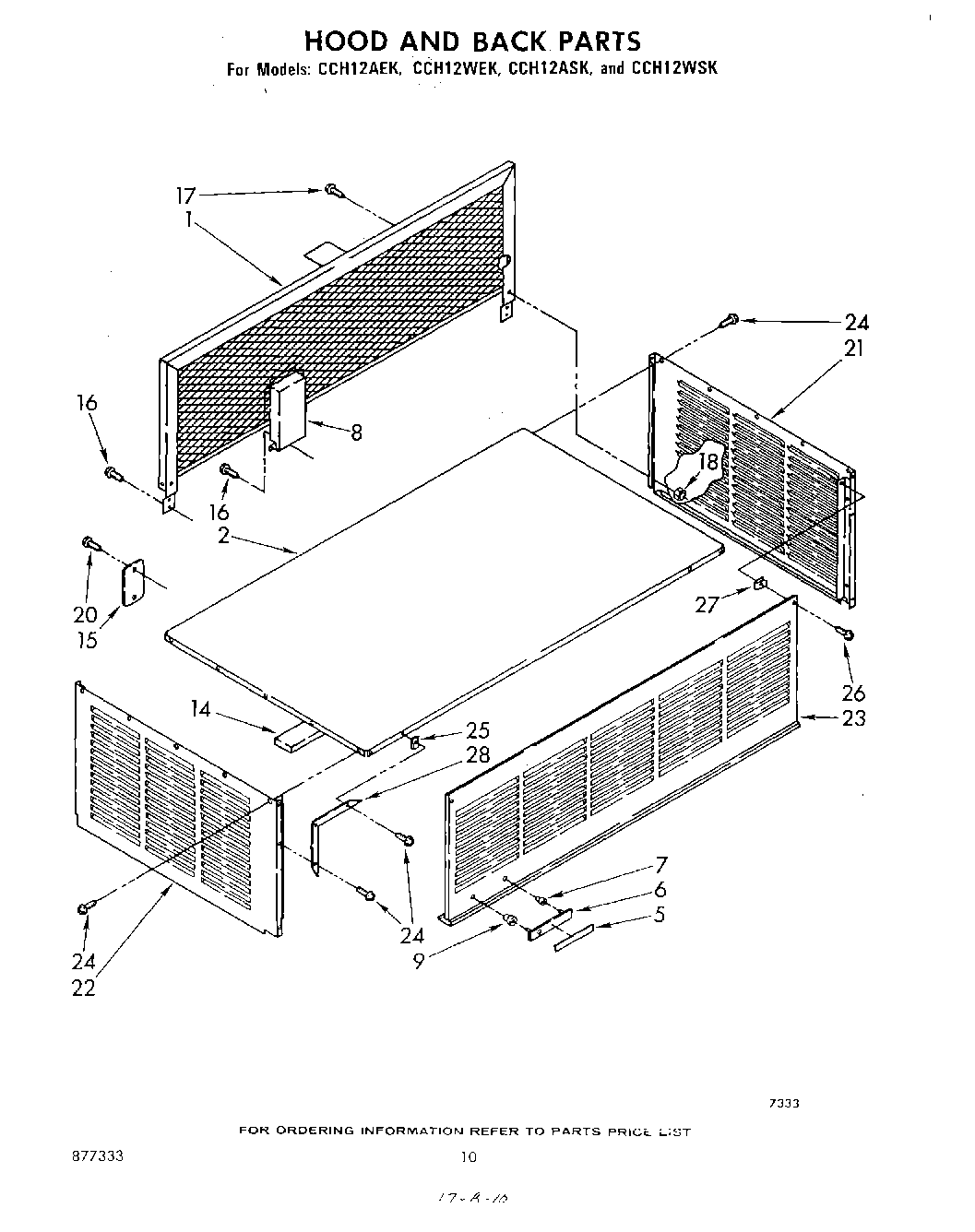

CCH12AEK 09 – HOOD AND BACK , LIT/OPTIONALadmin2025-04-26T12:14:21+00:00CCH12AEK 09 – HOOD AND BACK , LIT/OPTIONAL
Products
| Position | Product |
|---|
| WPL 978932 |
| WPL 978931 |
| 285006 Whirlpool Spray |
| 1 | Panel, Back (CCH12WSK) |
| 1 | Panel, Back (CCH12AEK) |
| 1 | Panel, Back (CCH12ASK) |
| 1 | Panel, Back (CCH12WEK) |
| 2 | Top, Hood (CCH12AEK CCH12WEK (Includes Item 14)) |
| 2 | Top, Hood (CCH12ASK CCH12WSK (Includes Item 14)) |
| 5 | Insert, Escutcheon |
| 6 | Escutcheon, Nameplate |
| 7 | Clip, Sealing (Small) |
| 8 | Junction Box (Not Serviceable) |
| 9 | Clip, Sealing (Large) |
| 14 | Gasket, Hood |
| 15 | Cover, Junction Box |
| 16 | WP488787 Whirlpool Refrigerator Screw |
| 17 | Screw, 10-32 x 1/2 |
| 18 | WP488826 Whirlpool Nut |
| 20 | Screw (Compressor Ground) |
| 21 | Panel, Hood R.S. (CCH12AEK CCH12WEK) |
| 21 | Panel, Hood R.S. (CCH12ASK CCH12WSK) |
| 22 | Panel, Hood L.S. (CCH12ASK CCH12WSK) |
| 22 | Panel, Hood L.S. (CCH12AEK CCH12WEK) |
| 23 | Panel, Hood Front (CCH12ASK CCH12WSK) |
| 23 | Panel, Hood Front (CCH12AEK CCH12WEK) |
| 24 | WP965173 Whirlpool Dishwasher Screw |
| 25 | Nut, No.10 ``U`` Spring |
| 26 | Screw |
| 27 | Pushnut |
| 28 | WPL 757214 |
| 28 | Instr |
| 28 | Gusset (4) |
| 28 | Terminal, Piggy Back |
| 28 | Gasket (Set) |
| 28 | Compound, Caulking (Cartridge) |
| 28 | Enamel, Burnt Sienna (1/2 Pt.) |
| 28 | WP285432 Whirlpool Terminal |
| 28 | 212643 Whirlpool Refrigerator Permagum Sealer |
| 28 | 606755 Whirlpool Refrigerator Bag |
| 28 | 876370 Whirlpool Refrigerator Insulation |
| 28 | WP505587 Whirlpool Refrigerator Sealer |
| 28 | Clip, Terminal (Component Of Start Kit) |
| 28 | WP542638 Whirlpool Refrigerator Grease |
| 28 | Enamel, Beaumont Beige (1/2 Pt.) |
| 28 | WPL 877333 |
