CCH12ASK 07 – PUMP
Written by
in

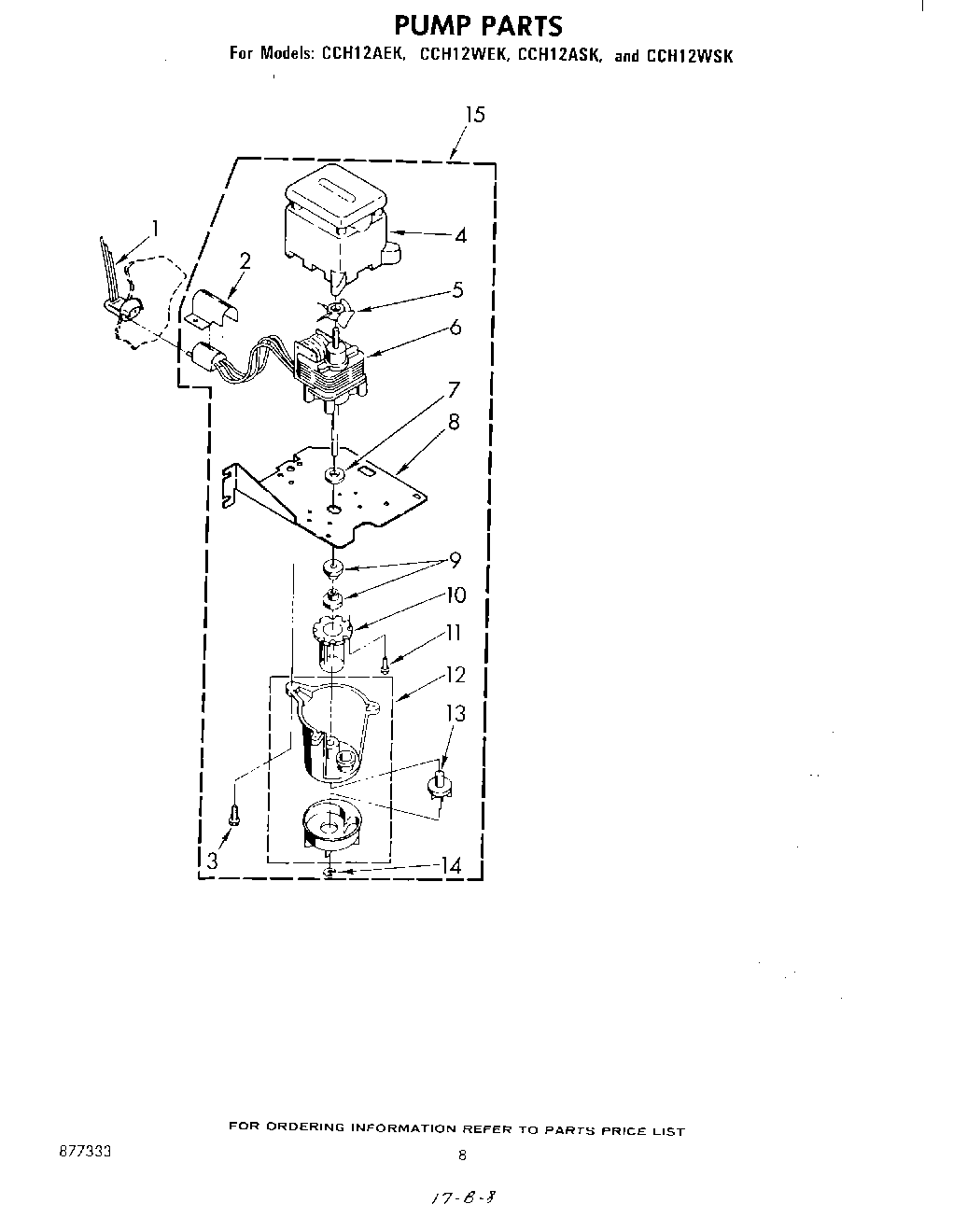

CCH12ASK 07 – PUMP
Products
Position
Product
1
Plug, Pump
2
Sheild, Wiring
3
Screw, 8-18 x 3/4
4
Housing, Motor
5
Blade, Fan
6
Motor, Pump
7
Washer
8
Bracket, Pump
9
Grommet (2)
10
Sleeve
11
681390 Whirlpool Refrigerator Screw
12
Pump, Assembly
13
Impeller
14
Ring, Retaining
15
Pump Assembly, Complete (Alternate)
←
