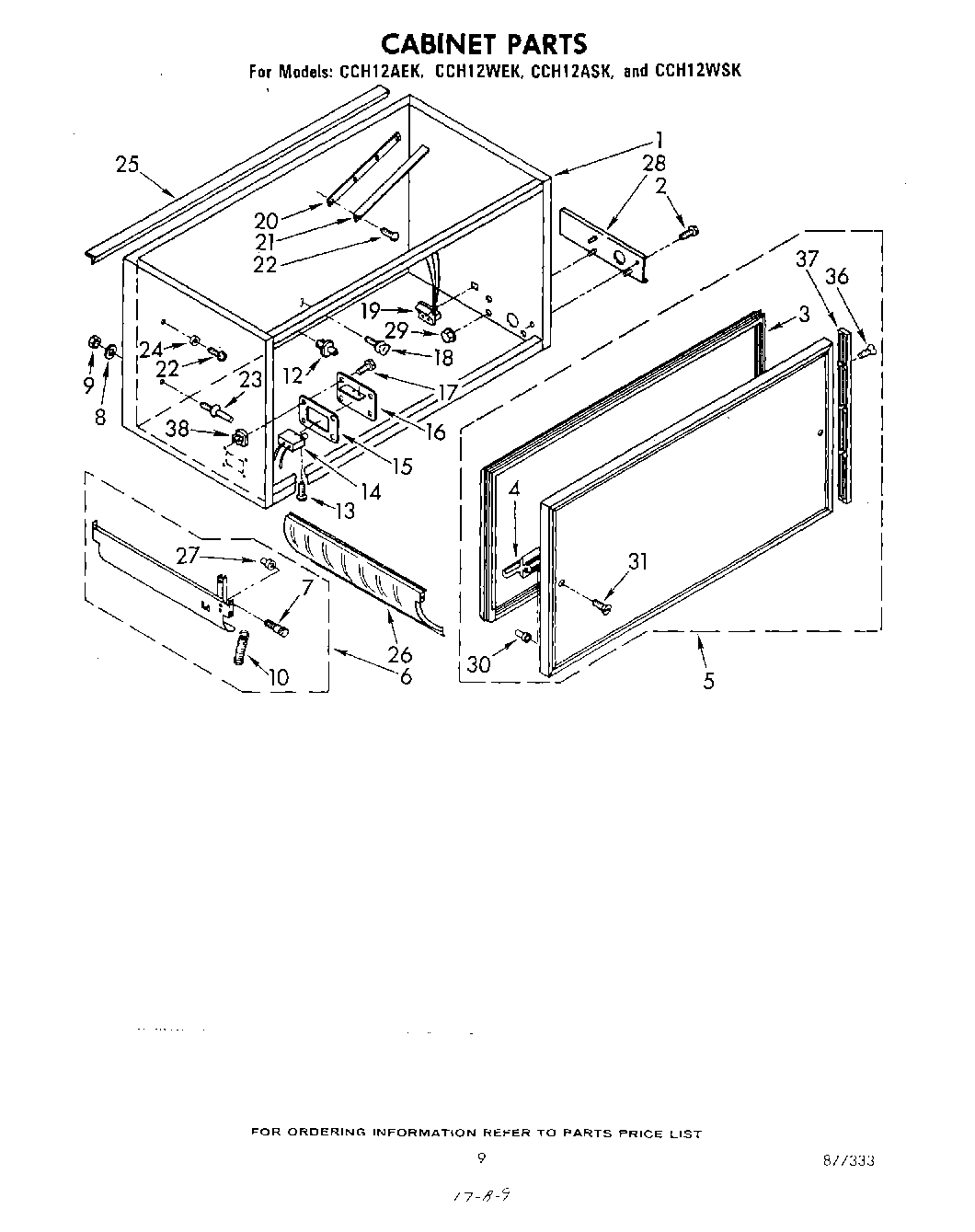

CCH12WEK 08 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Screw, 10-32 x 1/2
3	Gasket, Panel
4	Gasket, Drip
5	Panel, Front (Note: Panel Assembly Includes Items 3, 4, 30, 31, 36 & 37) (CCH12ASK CCH12WSK)
5	Panel, Front (Note: Panel Assembly Includes Items 3, 4, 30, 31, 36 & 37) (CCH12AEK CCH12WEK)
6	Deflector Assembly
7	Screw, Pivot
8	Washer, Fibre
9	Nut, 1/4-20
10	Spring
12	Stud, Deflector
13	Screw, 4-40 x 5/8 (2)
14	Switch, Baffle
15	Gasket, Plate
16	Plate, Switch
17	SCREW
18	Thumbscrew 10-32 x 5/8
19	Plug, Pump
20	Gasket, Support
21	Support (Not Serviceable)
22	W10759522 Whirlpool Screw
23	Stud (2)
24	Support, Grid (3)
25	Gasket, Angle
26	Deflector, Center
27	Rivnut
28	Support
29	Nut, Acorn (3)
30	Sleeve, Panel (2)
31	Screw
36	Screw (8)
37	Cap, End (2) (CCH12AEK CCH12WEK)
37	Cap, End (2) (CCH12ASK CCH12WSK)
38	Grommet (4)
