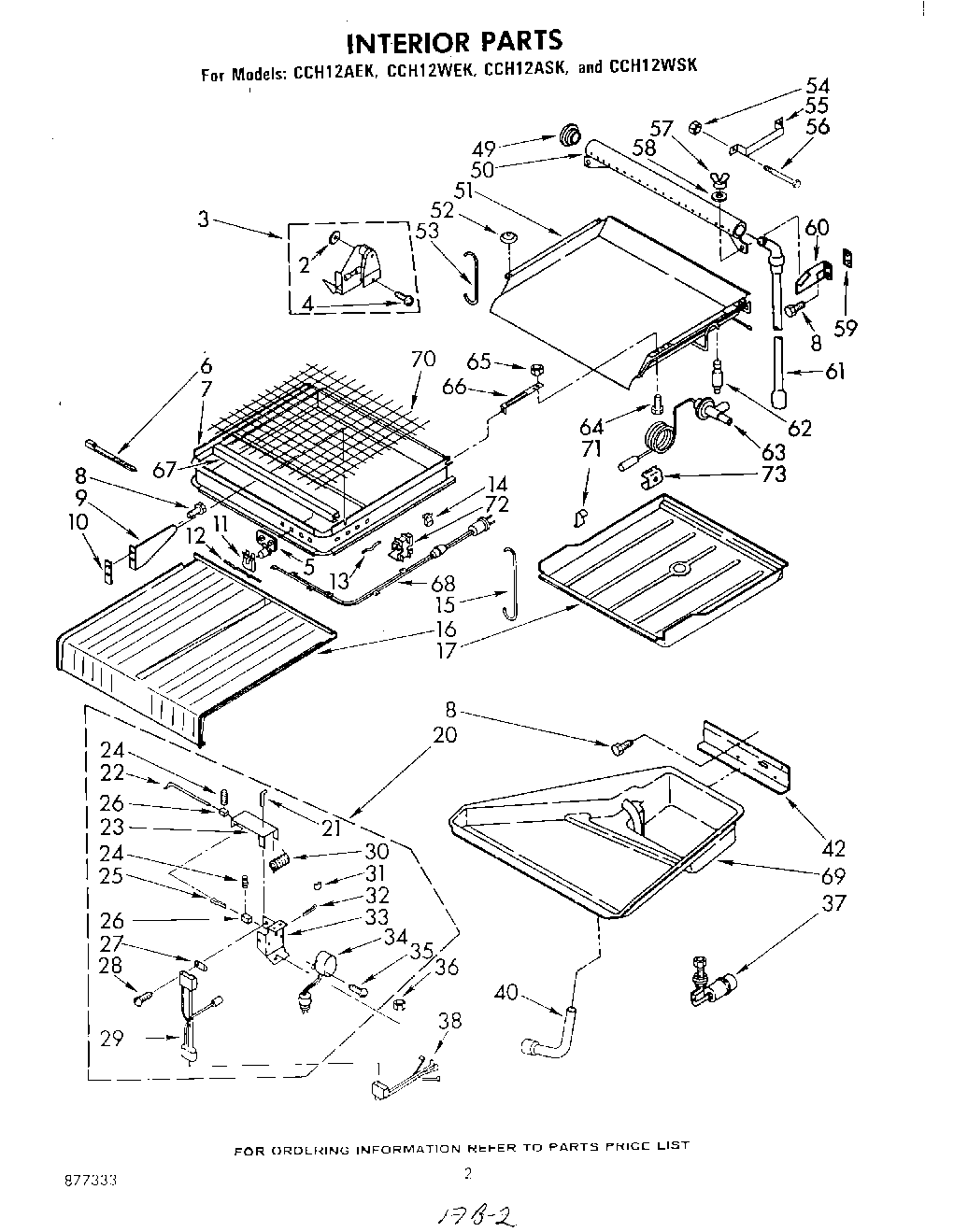

| 2 | Nut, Spring |
| 3 | Bracket Assembly (Cutter Grid) (3) |
| 4 | WP90767 Whirlpool Screw |
| 5 | Insulator, Grid Wires (38) |
| 6 | WPW10339879 Whirlpool Wire Tie |
| 7 | Frame, Grid Assembly (Non-Service) |
| 8 | Screw, 10-32 x 1/2 (4) |
| 9 | Gusset (L.S.) (3) |
| 10 | Gasket, Gusset (L.S.) |
| 11 | Clip, Grid Wires (38) |
| 12 | Pin, Grid Wire (17) |
| 13 | Pin, Grid Wires (4) |
| 14 | Clip, Wiring Harness |
| 15 | Hanger, Grid (Lower) (2) |
| 16 | Deflector (Upper) |
| 17 | Dispenser (Lower) |
| 20 | Control, Ice Thickness |
| 21 | Screw, Adjusting |
| 22 | Shaft, Ice Thickness Control |
| 23 | Bracket, Shaft |
| 24 | Setscrew (4) |
| 25 | Shaft, Flexible |
| 26 | Coupling, Shaft (2) |
| 27 | Spacer |
| 28 | Screw |
| 29 | Harness Micro Switch |
| 30 | Spring, Hold Down |
| 31 | Clamp, Wire |
| 32 | Pin, Cotter |
| 33 | Bracket, Motor |
| 34 | Motor, Ice Thickness Control |
| 35 | Screw |
| 37 | Valve, Assembly Float |
| 38 | Plug, Control Motor |
| 40 | Hose, Drain |
| 42 | Support, Water Pan |
| 49 | Seal, Dispenser |
| 50 | Dispenser, Water |
| 51 | Evaporator (Service) (3) |
| 52 | WPL 562336 |
| 53 | Hanger, Grid (Upper) |
| 54 | WP488826 Whirlpool Nut |
| 55 | Strap, Tube |
| 56 | Screw, 10-32 x 1-5/8 (2) |
| 57 | WPL 681584 |
| 58 | WPL 680396 |
| 59 | Gasket, Gusset (R.S.) |
| 60 | Gusset (R.S.) (3) |
| 61 | Hose, |
| 62 | WPL 562036 |
| 63 | WPL 757005 |
| 64 | 681390 Whirlpool Refrigerator Screw |
| 65 | WP486255 Whirlpool Air Conditioner Nut |
| 66 | WPL 751161 |
| 67 | Deflector, Ice Slab |
| 68 | Harness, Grid Connecting ((3/4`` Grid)) |
| 68 | Harness, Grid Connecting ((1-2/4`` Grid)) |
| 69 | WPL 756884 |
| 70 | Wire Kit, Grid Cutter ((1-2/4`` Grid)) |
| 70 | Wire Kit, Grid Cutter ((3/4`` Grid)) |
| 71 | WPL 587646 |
| 72 | WPL 587653 |
| 73 | WPL 593874 |
