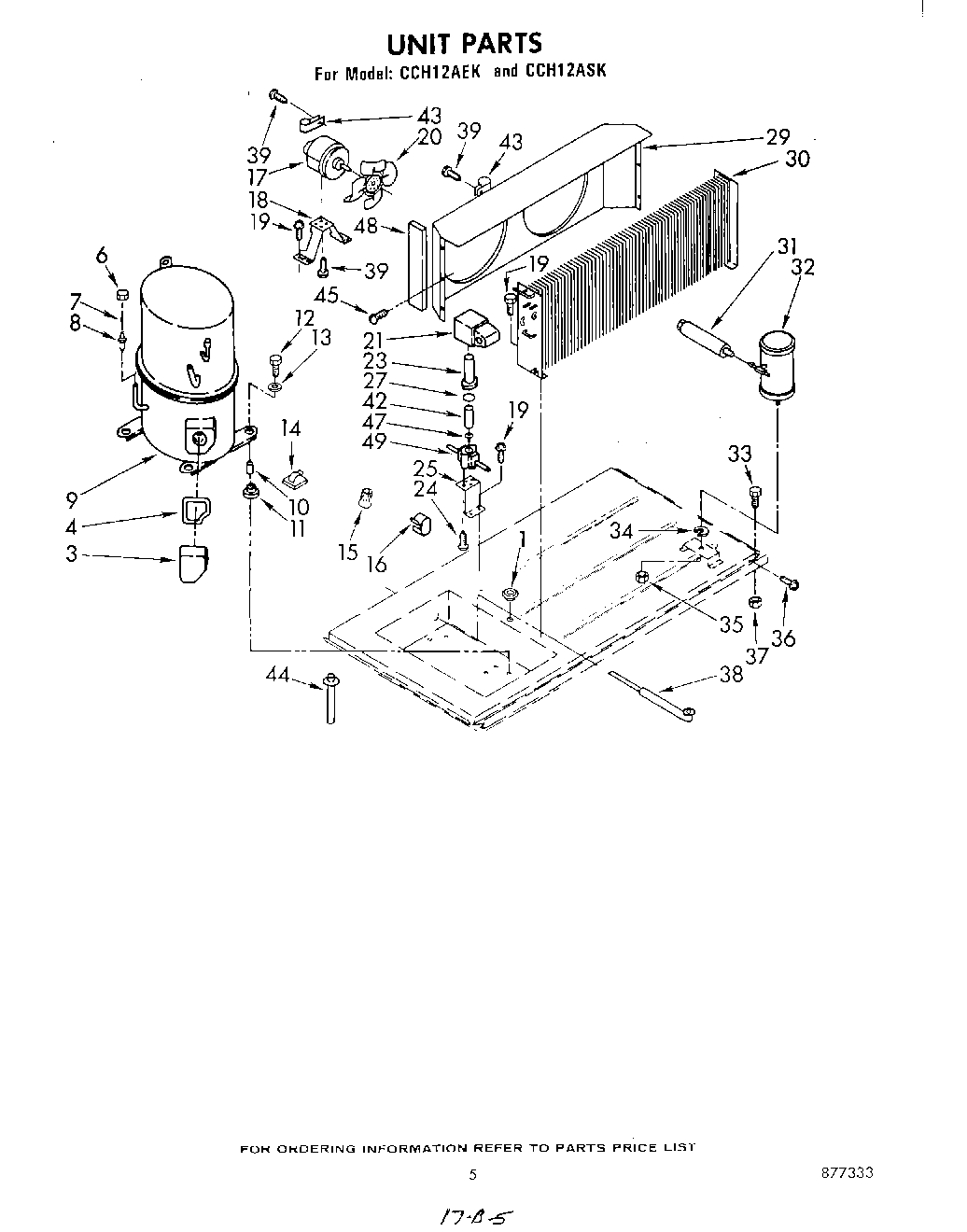

CCH12WSK 04 – CCH12AEK, CCH12ASKadmin2025-04-26T12:15:43+00:00CCH12WSK 04 – CCH12AEK, CCH12ASK
Products
| Position | Product |
|---|
| 1 | Button, Plug |
| 3 | Cover, Terminal |
| 4 | Gasket, Cover |
| 6 | Cap, Valve |
| 7 | Core, Valve |
| 8 | Valve |
| 9 | Compressor |
| 10 | Sleeve, Grommet (4) |
| 11 | Grommet (4) |
| 12 | Screw (4) |
| 13 | Washer, Flat (4) |
| 14 | Retainer, Wire |
| 15 | Connector, Closed End |
| 16 | Clip, Tubing (2) |
| 17 | Motor, Fan (Includes Illus. 21 & 39) (2) |
| 18 | Bracket, Motor (2) |
| 19 | Screw |
| 20 | Blade, Fan (2) |
| 21 | Coil, Solenoid |
| 23 | Bonnet Assembly |
| 24 | WP486579 Whirlpool Air Conditioner Screw |
| 25 | Bracket, Valve |
| 27 | Seal, Bonnet |
| 29 | Shroud, Condenser |
| 30 | Condenser |
| 31 | Drier |
| 32 | Receiver |
| 33 | Screw, 10-32 x 1/2 (3) |
| 34 | Washer, Lock |
| 35 | Nut (1) |
| 36 | Screw |
| 37 | Nut, Acorn (3) |
| 38 | Hose, Drain |
| 39 | Screw, 8-36 x 1/2 (Included W/Fan Motor) |
| 42 | Plunger |
| 43 | Clamp |
| 44 | Thermistor, Weld Assembly |
| 45 | WP90767 Whirlpool Screw |
| 47 | Diaphragm |
| 48 | Block Air |
| 49 | Body Assembly |
