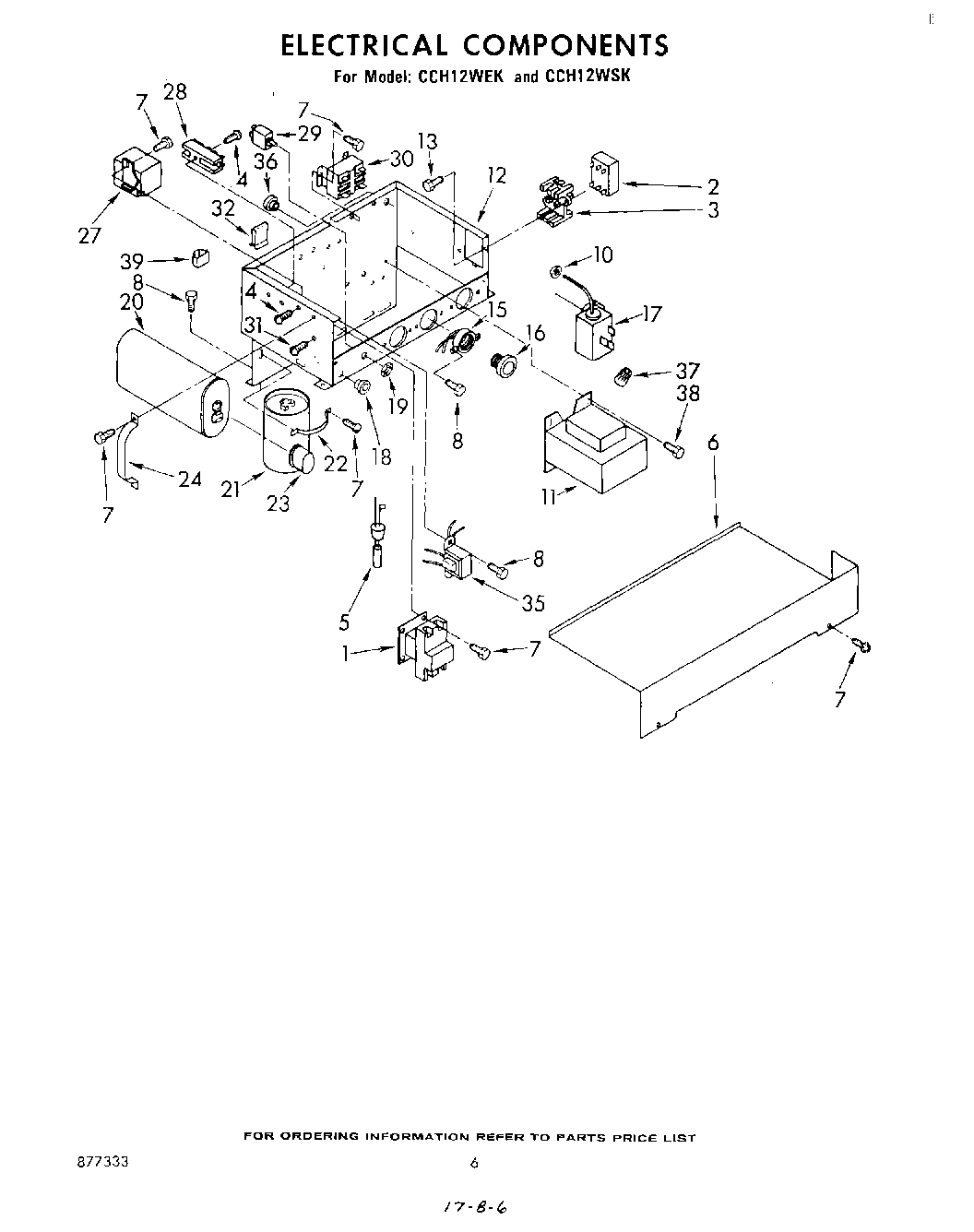

CCH12WSK 05 – CCH12WEK, CCH12WSK

Products

Position	Product
1	Contactor
2	Relay, Holding
3	Base, Relay
4	Screw, 8-32 x 5/8
5	Protector, Thermal
6	Cover, Electrical Box
7	WP90767 Whirlpool Screw
8	Screw, 10-32 x 1/2 (7)
10	Grommet
11	Transformer, Grid (20V)
12	Box, Electrical (Not Serviceable)
13	Screw, 10-32 x 1/2 (4)
15	Receptacle, Fustat (3)
16	Fustat, 8 AMP (3)
17	Control, Hi-Pressure
18	Bushing, Snap (4)
19	Nut, Switch (2)
20	Capacitor, Run
21	Capacitor, Start
22	Clamp, Capacitor Start
23	Cover, Capacitor
24	Clamp, Capacitor Run
27	Relay, Compressor Start
28	Board, Terminal
29	Switch, Service
30	Relay, Slab Completion
31	WP488787 Whirlpool Refrigerator Screw
32	Clip
35	Transformer, Control (14V)
36	Bushing, Snap
37	Connector, Closed End
38	WP999367 Whirlpool Refrigerator Screw
39	Retainer, Wire
