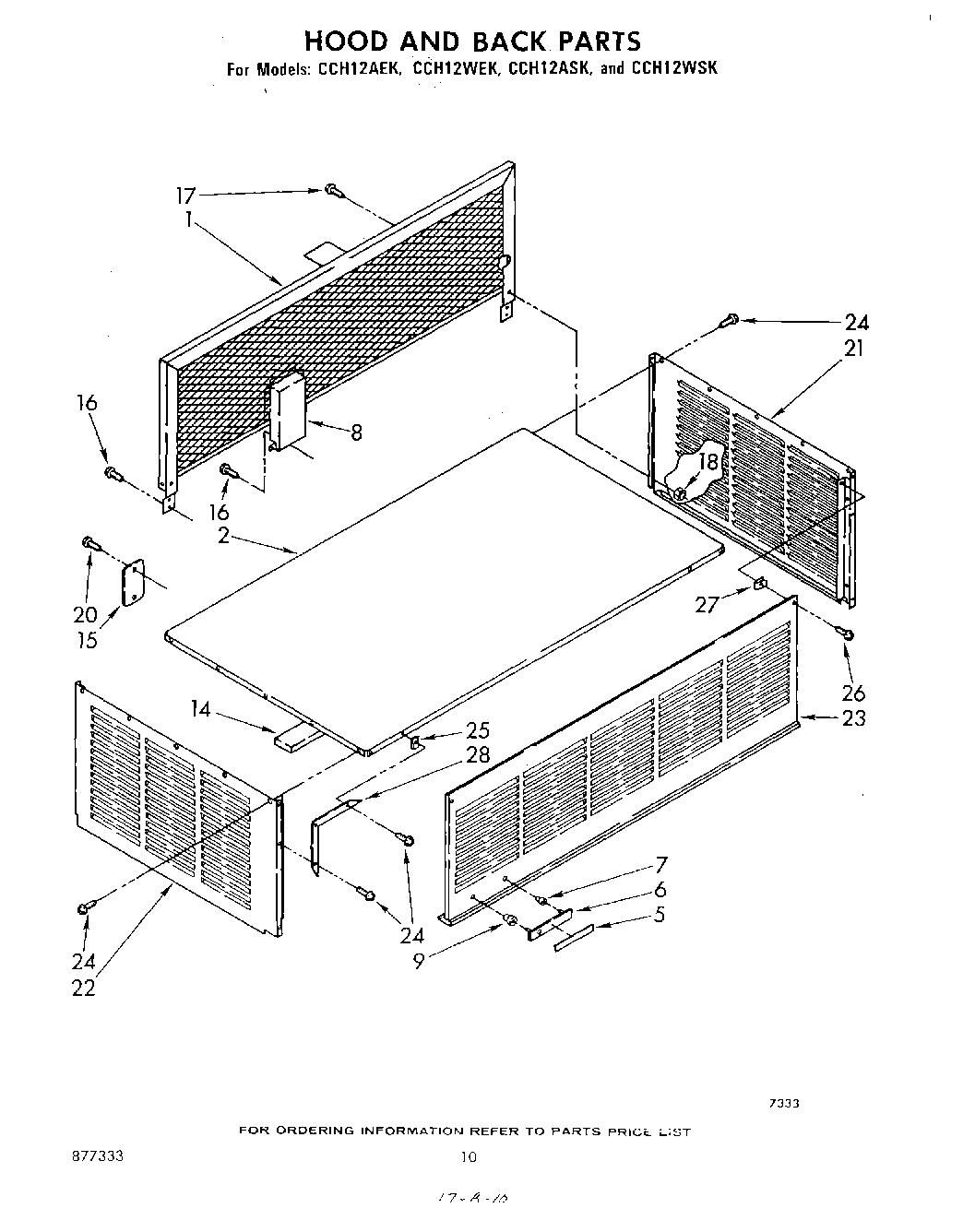

CCH12WSK 09 – HOOD AND BACK , LIT/OPTIONAL

Products

PositionProduct
WPL 978932
WPL 978931
285006 Whirlpool Spray
1Panel, Back (CCH12WSK)
1Panel, Back (CCH12AEK)
1Panel, Back (CCH12ASK)
1Panel, Back (CCH12WEK)
2Top, Hood (CCH12AEK CCH12WEK (Includes Item 14))
2Top, Hood (CCH12ASK CCH12WSK (Includes Item 14))
5Insert, Escutcheon
6Escutcheon, Nameplate
7Clip, Sealing (Small)
8Junction Box (Not Serviceable)
9Clip, Sealing (Large)
14Gasket, Hood
15Cover, Junction Box
16WP488787 Whirlpool Refrigerator Screw
17Screw, 10-32 x 1/2
18WP488826 Whirlpool Nut
20Screw (Compressor Ground)
21Panel, Hood R.S. (CCH12ASK CCH12WSK)
21Panel, Hood R.S. (CCH12AEK CCH12WEK)
22Panel, Hood L.S. (CCH12AEK CCH12WEK)
22Panel, Hood L.S. (CCH12ASK CCH12WSK)
23Panel, Hood Front (CCH12ASK CCH12WSK)
23Panel, Hood Front (CCH12AEK CCH12WEK)
24WP965173 Whirlpool Dishwasher Screw
25Nut, No.10 “U“ Spring
26Screw
27Pushnut
28WPL 877333
28WPL 757214
28Instr
28Gusset (4)
28WP285432 Whirlpool Terminal
28Gasket (Set)
28Compound, Caulking (Cartridge)
28Enamel, Beaumont Beige (1/2 Pt.)
28Enamel, Burnt Sienna (1/2 Pt.)
28212643 Whirlpool Refrigerator Permagum Sealer
28606755 Whirlpool Refrigerator Bag
28876370 Whirlpool Refrigerator Insulation
28WP505587 Whirlpool Refrigerator Sealer
28Clip, Terminal (Component Of Start Kit)
28WP542638 Whirlpool Refrigerator Grease
28Terminal, Piggy Back
