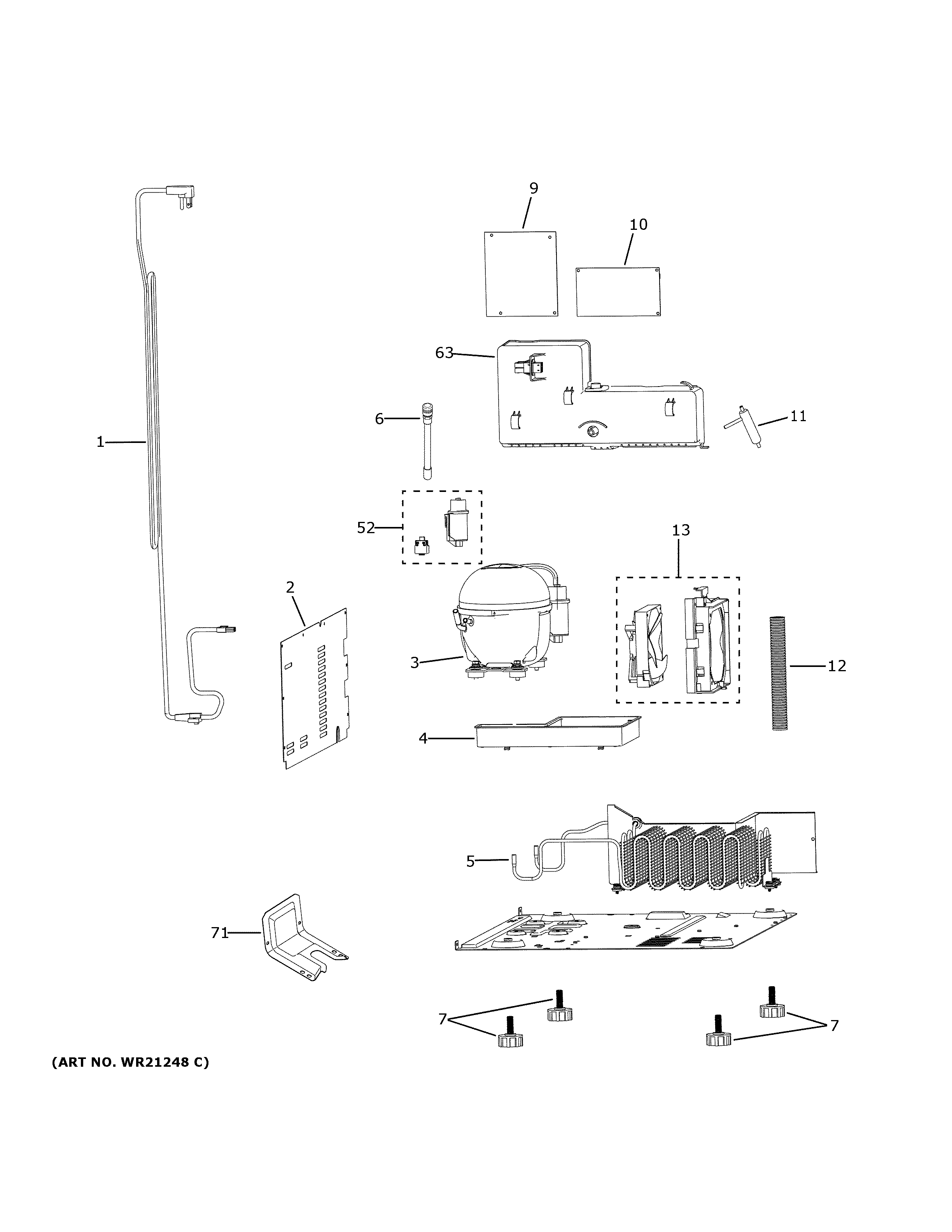

CCP06BP4PBW2 MACHINE COMPARTMENT

CCP06BP4PBW2 MACHINE COMPARTMENT

Written by

in

CCP06BP4PBW2 MACHINE COMPARTMENT

Products

PositionProduct
1POWER CORD
2MACHINE ACCESS COVER
3WR87X32025 GE Compressor
4DRIP PAN
5CONDENSER
6WR87X30876 GE Refrigerator R600 Process Valve with Red Cap
7WR01X27781 GE Refrigerator Adjustable Leg
9WR55X34531 GE Main Control Board
10WR55X31984 GE Refrigerator Power Supply Board
11WR87X30875 GE Refrigerator R600 Dryer with Red Cap
12DRAIN TUBE
13WR87X34926 GE Condenser Fan and Bracket Assembly
52WR87X33865 GE Compressor Electricals
63CONTROL BOX AND COVER
71WR01X34846 GE Anti-Tip Bracket
